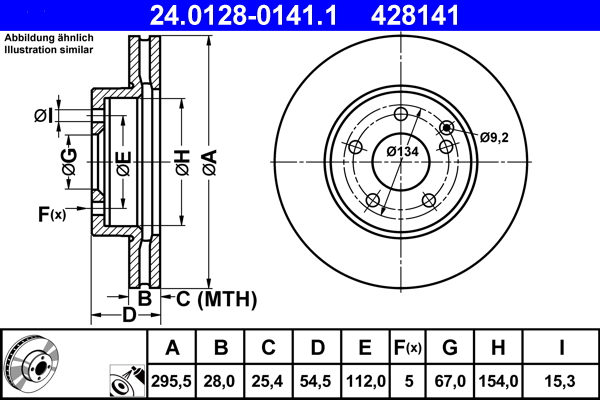

Specifications
| Bolt Hole Circle Ø (mm) | 112.0 |
| Bore Diameter (mm) | 15.3 |
| Brake Disc Thickness (mm) | 28.0 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 67.0 |
| Height (mm) | 54.5 |
| Inner Diameter (mm) | 154.0 |
| Machining Alloyed/High-carbon | |
| MAPP code available | |
| Minimum thickness (mm) | 25.4 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 295.5 |
| Surface Coated | |
| Test Mark E1 90R-02C0115/0037 | |
Bolt Hole Circle Ø [mm] 112,0, Bore Diameter [mm] 15,3, Brake Disc Thickness [mm] 28,0, Brake Disc Type Vented, Centering Diameter [mm] 67,0, Height [mm] 54,5, Inner Diameter [mm] 154,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 25,4, Number of Holes 5, Outer Diameter [mm] 295,5, Surface Coated, Test Mark E1 90R-02C0115/0037
