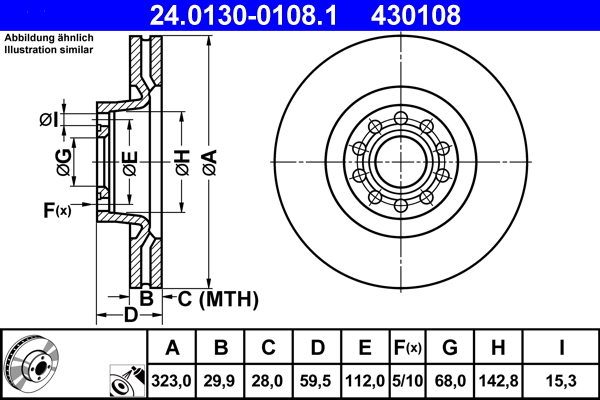

Specifications
| Bolt Hole Circle Ø (mm) | 112.0 |
| Bore Diameter (mm) | 15.3 |
| Brake Disc Thickness (mm) | 29.9 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 68.0 |
| Height (mm) | 59.5 |
| Inner Diameter (mm) | 142.8 |
| Machining High-carbon | |
| MAPP code available | |
| Minimum thickness (mm) | 28.0 |
| No. of holes 2 10 | |
| Number of Holes 5 | |
| Outer Diameter (mm) | 323.0 |
| Surface Coated | |
Bolt Hole Circle Ø [mm] 112,0, Bore Diameter [mm] 15,3, Brake Disc Thickness [mm] 29,9, Brake Disc Type Vented, Centering Diameter [mm] 68,0, Height [mm] 59,5, Inner Diameter [mm] 142,8, Machining High-carbon, MAPP code available , Minimum thickness [mm] 28,0, No. of holes 2 10, Number of Holes 5, Outer Diameter [mm] 323,0, Surface Coated
