Braking System

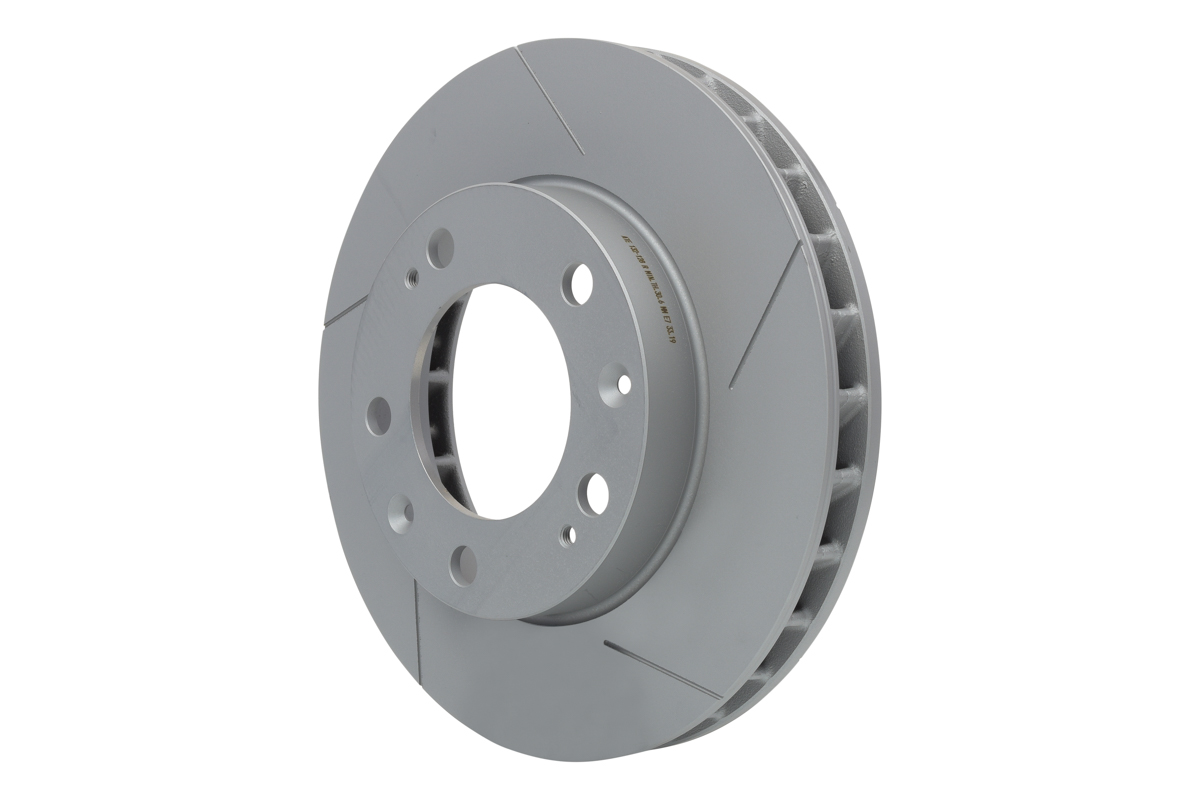

Brake Disc

Name: Brake Disc
Brand: ATE
SKU: 24.0132-0128.1-ATE
Availability: OutOfStock

Part No. 24.0132-0128.1 · SKU 24.0132-0128.1-ATE

Front Axle Right

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	130.0
Bore Diameter (mm)	15.4
Brake Disc Thickness (mm)	32.0
Brake Disc Type slotted/internally vented
Centering Diameter (mm)	90.0
Height (mm)	60.0
Inner Diameter (mm)	156.0
Machining Alloyed/High-carbon
MAPP code available
Minimum thickness (mm)	30.6
Number of Holes 5
Outer Diameter (mm)	282.0. paired article number 24.0132-0127.1
Surface Coated

Bolt Hole Circle Ø [mm] 130,0, Bore Diameter [mm] 15,4, Brake Disc Thickness [mm] 32,0, Brake Disc Type slotted/internally vented, Centering Diameter [mm] 90,0, Height [mm] 60,0, Inner Diameter [mm] 156,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 30,6, Number of Holes 5, Outer Diameter [mm] 282,0, paired article number 24.0132-0127.1, Surface Coated
Fits: PORSCHE

Interchangeable Part Numbers

BENDIX561832B BOSCH0 986 478 312 HELLA8DD 355 101-051 JURID561832J MINTEXMDC1278 PAGID52617 TEXTAR92033300 TEXTAR98200 0333 0 1 ZIMMERMANN460.1503.00 ZIMMERMANN460.1503.20

OE Numbers — PORSCHE

928 351 044 01

Make	Model	Type / Engine	Years	CC	kW	HP
PORSCHE	928	4.5	1977 – 1995	4474	177	241
PORSCHE	928	4.7 S	1977 – 1995	4664	221	301
PORSCHE	928	4.7 S	1977 – 1995	4664	228	310
PORSCHE	928	5.0 S, S4	1977 – 1995	4957	235	320
PORSCHE	928	5.0 S4 Cat	1977 – 1995	4957	235	320
PORSCHE	928	5.0 GT	1977 – 1995	4957	243	330
PORSCHE	928	5.4 GTS	1977 – 1995	5397	257	350
PORSCHE	928	5.0 S	1977 – 1995	4957	212	288
PORSCHE	928	5.0 S	1977 – 1995	4957	200	272
PORSCHE	928	4.5	1977 – 1995	4474	163	222
PORSCHE	928	4.7 S	1977 – 1995	4671	228	310
PORSCHE	928	4.5	1977 – 1995	4474	169	230
PORSCHE	928	4.5	1977 – 1995	4474	170	231
PORSCHE	928	4.7 S	1977 – 1995	4664	178	242
PORSCHE	928	5.0 S	1977 – 1995	4957	215	292
PORSCHE	928	5.0 S4	1977 – 1995	4957	221	300
