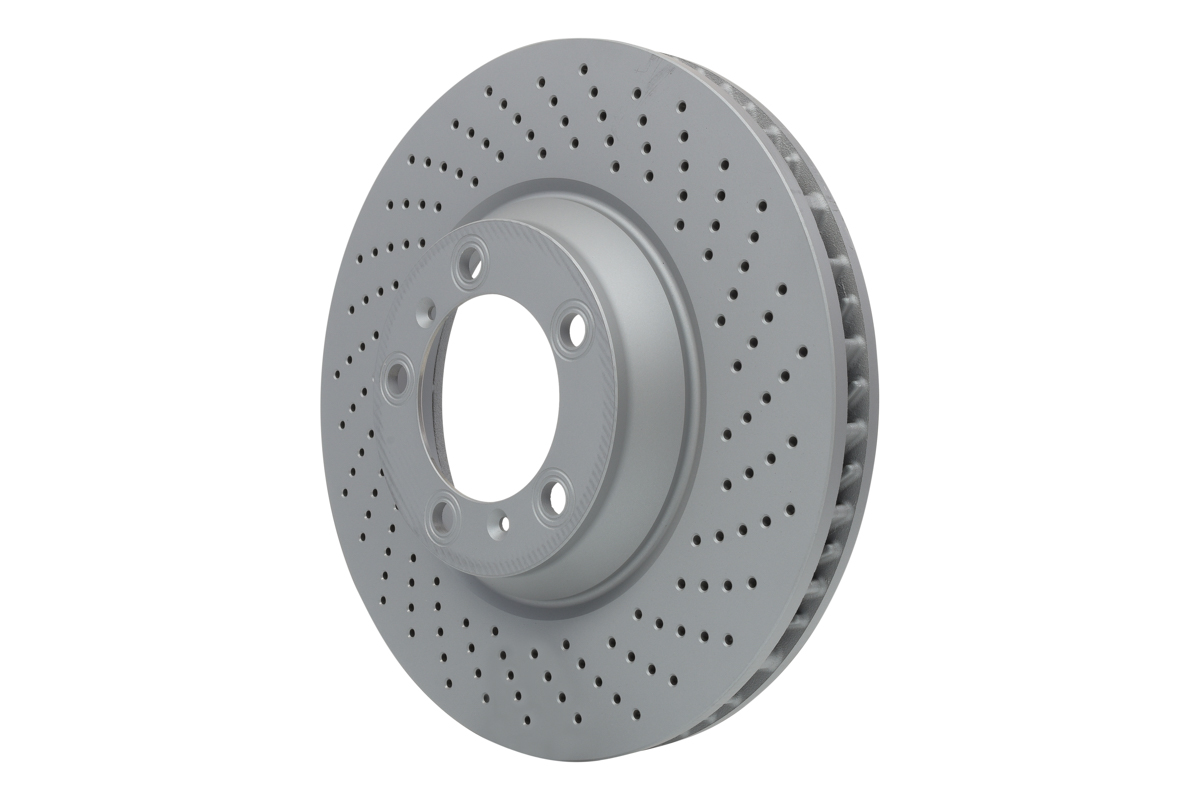

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. 24.0134-0106.1 · SKU 24.0134-0106.1-ATE
Front Axle Right
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

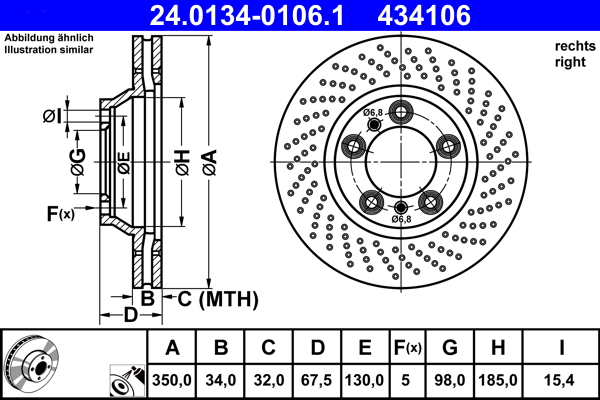

Specifications

Bolt Hole Circle Ø (mm)130.0
Bore Diameter (mm)15.4
Brake Disc Thickness (mm)34.0
Brake Disc Type perforated/vented
Centering Diameter (mm)98.0
Height (mm)67.5
Inner Diameter (mm)185.0
Machining Alloyed/High-carbon
MAPP code available
Minimum thickness (mm)32.0
Number of Holes 5
Outer Diameter (mm)350.0. paired article number 24.0134-0105.1
Surface Coated
Test Mark E1 90R-02C0640/1054
Bolt Hole Circle Ø [mm] 130,0, Bore Diameter [mm] 15,4, Brake Disc Thickness [mm] 34,0, Brake Disc Type perforated/vented, Centering Diameter [mm] 98,0, Height [mm] 67,5, Inner Diameter [mm] 185,0, Machining Alloyed/High-carbon, MAPP code available , Minimum thickness [mm] 32,0, Number of Holes 5, Outer Diameter [mm] 350,0, paired article number 24.0134-0105.1, Surface Coated, Test Mark E1 90R-02C0640/1054
Fits: PORSCHE

Interchangeable Part Numbers

TEXTAR92216710 ZIMMERMANN460.1574.20

OE Numbers — PORSCHE

997 351 410 90
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (997) 3.6 GT 2 2004 – 2013 3600 390 530
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 462 628
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 395 537
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 264 359
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 242 329
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3800 335 456
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 373 507
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 309 420
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3797 331 450
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 235 320
PORSCHE 911 (997) 3.8 GT3 2004 – 2013 3797 320 435
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 368 500
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.6 GT3 2004 – 2013 3600 305 415
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 353 480
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 390 530
PORSCHE 911 (997) 4.0 GT3 RS 2004 – 2013 3996 368 500
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 456 620
PORSCHE 911 (997) 3.8 Carrera 4S / 4 GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Carrera S / GTS 2004 – 2013 3800 300 408
