Brake Drum
Braking System

Brake Drum

Part No. 24.0220-0007.1 · SKU 24.0220-0007.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

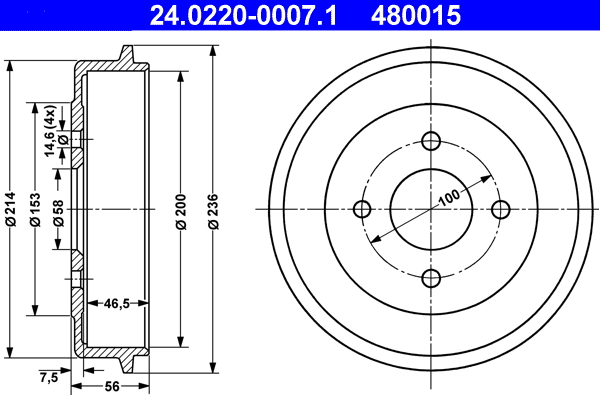

Specifications

Bolt Hole Circle Ø (mm)100.0
Bore Diameter (mm)14.6
Inner brake drum diameter (mm)200.0
Inner brake drum height (mm)46.5
MAPP code available , max. brake drum reboring dimension (mm)201.0
Number of Holes 4
Outer brake drum diameter (mm)236.0
Support plate diameter (mm)58.0
Total brake drum height (mm)56.0
Bolt Hole Circle Ø [mm] 100,0, Bore Diameter [mm] 14,6, Inner brake drum diameter [mm] 200,0, Inner brake drum height [mm] 46,5, MAPP code available , max. brake drum reboring dimension [mm] 201,0, Number of Holes 4, Outer brake drum diameter [mm] 236,0, Support plate diameter [mm] 58,0, Total brake drum height [mm] 56,0
Fits: BMW

Interchangeable Part Numbers

AIMCO3821 BRECO BT3163 BRECOBT3163 BREMBO14.3163.10 CIFAM700-041 LPR7D0007 METELLI18-0041 NK251507 OMC100201 sbs1825251507 SEBRO24 90 TEXTAR98100 0004 0 1

OE Numbers — BMW

34 21 3 460 010
MakeModelType / Engine YearsCCkWHP
BMW 1500-2000 (115, 116, 118, 121) 2000 Ti / Tilux 1962 – 1972 1990 88 120
BMW 1500-2000 (115, 116, 118, 121) 1800 1962 – 1972 1766 66 90
BMW 1500-2000 (115, 116, 118, 121) 1800 1962 – 1972 1773 66 90
BMW 1500-2000 (115, 116, 118, 121) 1800 Ti 1962 – 1972 1773 81 110
BMW 1500-2000 (115, 116, 118, 121) 1600 1962 – 1972 1573 61 83
BMW 1500-2000 (115, 116, 118, 121) 1500 1962 – 1972 1573 59 80
BMW 1500-2000 (115, 116, 118, 121) 1500 1962 – 1972 1499 59 80
BMW 1500-2000 (115, 116, 118, 121) 1800 Ti (TISA) 1962 – 1972 1773 96 131
BMW 1500-2000 (115, 116, 118, 121) 2000 1962 – 1972 1766 66 90
BMW 1500-2000 (115, 116, 118, 121) 2000 Tii 1962 – 1972 1990 96 131
BMW 1500-2000 (115, 116, 118, 121) 1600 1962 – 1972 1573 71 97
BMW 1500-2000 (115, 116, 118, 121) 1800 1962 – 1972 1766 76 103
BMW 1500-2000 (115, 116, 118, 121) 2000 1962 – 1972 1990 74 100
BMW 1500-2000 (115, 116, 118, 121) 2000 1962 – 1972 1990 83 113
BMW 1500-2000 (115, 116, 118, 121) 2000 Ti 1962 – 1972 1990 101 137
BMW 1500-2000 (115, 116, 118, 121) 2000 Ti 1962 – 1972 1990 93 126
BMW 1502-2002 (E10) 1600 Ti 1967 – 1977 1573 77 105
BMW 1502-2002 (E10) 1802 1967 – 1977 1766 76 103
BMW 1502-2002 (E10) 2002 Ti 1967 – 1977 1990 97 132
BMW 1502-2002 (E10) 2002 Ti 1967 – 1977 1990 93 126
BMW 1502-2002 (E10) 1502 1967 – 1977 1573 55 75
BMW 1502-2002 (E10) 2002 Ti 1967 – 1977 1990 88 120
BMW 1502-2002 (E10) 1600/2 1967 – 1977 1573 63 85
BMW 1502-2002 (E10) 2002 Turbo 1967 – 1977 1990 125 170
BMW 1502-2002 (E10) 2002 Tii 1967 – 1977 1990 96 130
BMW 1502-2002 (E10) 2002 1967 – 1977 1990 74 100
BMW 1502-2002 (E10) 1802 1967 – 1977 1766 66 90
BMW 1502-2002 (E10) 1602 1967 – 1977 1573 63 85
BMW 1502-2002 Convertible (E10) 1600-2 1967 – 1975 1573 63 86
BMW 1502-2002 Convertible (E10) 2002 1967 – 1975 1990 74 100
BMW 1502-2002 Touring (E6) 2002 Tii 1971 – 1975 1990 96 130
BMW 1502-2002 Touring (E6) 2002 1971 – 1975 1990 74 100
BMW 1502-2002 Touring (E6) 1802 1971 – 1975 1766 66 90
BMW 1502-2002 Touring (E6) 1600 1971 – 1975 1573 63 85
