Brake Drum
Braking System

Brake Drum

Part No. 24.0220-0017.1 · SKU 24.0220-0017.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

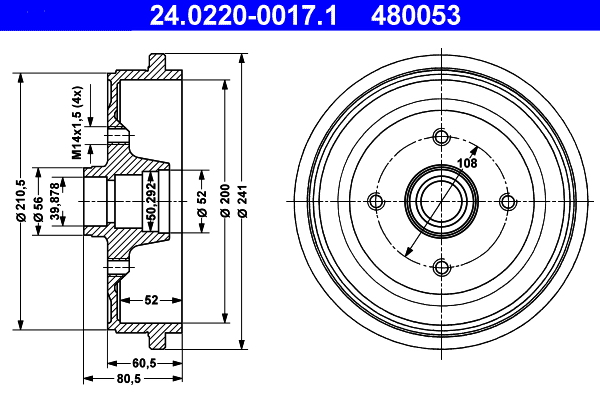

Specifications

Bolt Hole Circle Ø (mm)108.0
Inner brake drum diameter (mm)200.0
Inner brake drum height (mm)52.0
Inner Diameter 2 (mm)39.9
MAPP code available , max. brake drum reboring dimension (mm)201.0
Number of Holes 4
Outer brake drum diameter (mm)240.0
Supplementary Article/Info 2 without wheel bearing
Support plate diameter (mm)50.3
Thread Size M14x1,5
Total brake drum height (mm)80.5
Bolt Hole Circle Ø [mm] 108,0, Inner brake drum diameter [mm] 200,0, Inner brake drum height [mm] 52,0, Inner Diameter 2 [mm] 39,9, MAPP code available , max. brake drum reboring dimension [mm] 201,0, Number of Holes 4, Outer brake drum diameter [mm] 240,0, Supplementary Article/Info 2 without wheel bearing, Support plate diameter [mm] 50,3, Thread Size M14x1,5, Total brake drum height [mm] 80,5
Fits: AUDI

Interchangeable Part Numbers

BENDIX329239B BOSCH0 986 477 053 BREMBO14.7091.10 CIFAM700-205K CIFAM700-205 DELPHIBF318 FTEBT265 HELLA8DT 355 301-461 JURID329239J METELLI18-0205K METELLI18-0205 MGAT7462 MGATR7462 MINTEXMBD121 NK254723 PAGID62922 PEX15.0098 QUINTON HAZELLBDR265 QUINTON HAZELLBTF265 SEBRO23 28A TEXTAR94020500 TEXTAR98100 0205 0 1 TRWDB4161 TRWDB4161B ZIMMERMANN100.1647.00

OE Numbers — VAG

893 501 615 A
MakeModelType / Engine YearsCCkWHP
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1781 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 1986 – 1991 2309 97 132
AUDI 80 B3 Saloon (893, 894, 8A2) 2.3 quattro 1986 – 1991 2309 98 133
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 75 102
AUDI 80 B3 Saloon (893, 894, 8A2) 1.4 1986 – 1991 1400 48 65
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E quattro 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V quattro 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 quattro 1986 – 1991 1984 85 115
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E quattro 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 quattro 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 55 75
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 65 88
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 E 1986 – 1991 1781 82 112
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 1986 – 1991 1847 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 1986 – 1991 1984 83 113
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 D 1986 – 1991 1588 40 54
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 TD 1986 – 1991 1588 59 80
AUDI 80 B3 Saloon (893, 894, 8A2) 1.9 D 1986 – 1991 1896 50 68
AUDI 80 B3 Saloon (893, 894, 8A2) 1.8 S quattro 1986 – 1991 1781 66 90
AUDI 80 B3 Saloon (893, 894, 8A2) 2.0 E 16V 1986 – 1991 1984 101 137
AUDI 80 B3 Saloon (893, 894, 8A2) 1.6 1986 – 1991 1595 51 70
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V 1987 – 1991 2309 123 167
AUDI 90 B3 (893, 894, 8A2) 1.8 E 1987 – 1991 1781 82 111
AUDI 90 B3 (893, 894, 8A2) 2.0 E 1987 – 1991 1984 83 113
AUDI 90 B3 (893, 894, 8A2) 2.0 1987 – 1991 1983 80 109
AUDI 90 B3 (893, 894, 8A2) 2.0 1987 – 1991 1994 85 115
AUDI 90 B3 (893, 894, 8A2) 2.0 quattro 1987 – 1991 1984 101 137
AUDI 90 B3 (893, 894, 8A2) 2.3 E 1987 – 1991 2309 100 136
AUDI 90 B3 (893, 894, 8A2) 2.3 E 1987 – 1991 2309 98 133
AUDI 90 B3 (893, 894, 8A2) 2.3 E quattro 1987 – 1991 2309 98 133
AUDI 90 B3 (893, 894, 8A2) 2.0 20 V quattro 1987 – 1991 1994 118 160
AUDI 90 B3 (893, 894, 8A2) 2.0 20 V 1987 – 1991 1994 118 160
AUDI 90 B3 (893, 894, 8A2) 1.6 TD 1987 – 1991 1588 59 80
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V 1987 – 1991 2309 125 170
AUDI 90 B3 (893, 894, 8A2) 2.2 E quattro 1987 – 1991 2226 100 136
AUDI 90 B3 (893, 894, 8A2) 2.2 E 1987 – 1991 2226 100 136
AUDI 90 B3 (893, 894, 8A2) 2.3 E quattro 1987 – 1991 2309 100 136
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V quattro 1987 – 1991 2309 125 170
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V quattro 1987 – 1991 2309 123 167
