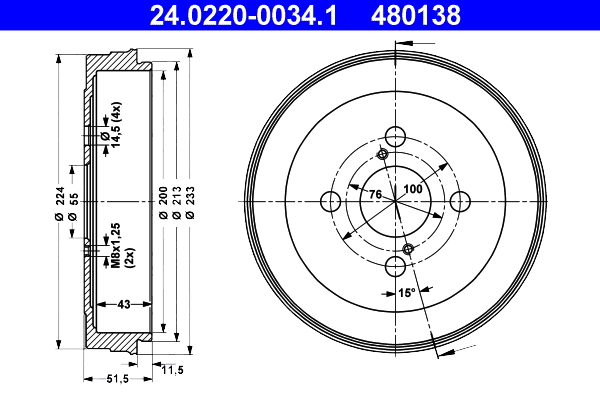

Specifications
| Bolt Hole Circle Ø (mm) | 100.0 |
| Bore Diameter (mm) | 14.5 |
| Inner brake drum diameter (mm) | 200.0 |
| Inner brake drum height (mm) | 43.0. max. brake drum reboring dimension [mm] 201.0 |
| Number of Holes 4 | |
| Outer brake drum diameter (mm) | 233.0 |
| Support plate diameter (mm) | 55.0 |
| Total brake drum height (mm) | 51.5 |
Bolt Hole Circle Ø [mm] 100,0, Bore Diameter [mm] 14,5, Inner brake drum diameter [mm] 200,0, Inner brake drum height [mm] 43,0, max. brake drum reboring dimension [mm] 201,0, Number of Holes 4, Outer brake drum diameter [mm] 233,0, Support plate diameter [mm] 55,0, Total brake drum height [mm] 51,5
