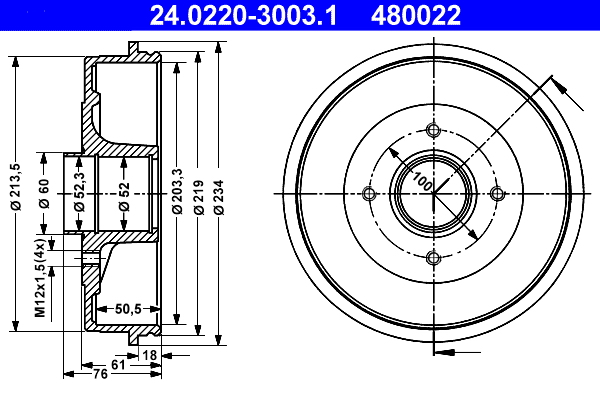

Specifications
| Bolt Hole Circle Ø (mm) | 100.0 |
| Inner brake drum diameter (mm) | 203.0 |
| Inner brake drum height (mm) | 50.5. max. brake drum reboring dimension [mm] 204.5 |
| Number of Holes 4 | |
| Outer brake drum diameter (mm) | 234.0 |
| Supplementary Article/Info 2 without ABS sensor ring | |
| Supplementary Article/Info 2 without wheel bearing | |
| Support plate diameter (mm) | 52.0 |
| Thread Size M12x1,5 | |
| Total brake drum height (mm) | 76.0 |
Bolt Hole Circle Ø [mm] 100,0, Inner brake drum diameter [mm] 203,0, Inner brake drum height [mm] 50,5, max. brake drum reboring dimension [mm] 204,5, Number of Holes 4, Outer brake drum diameter [mm] 234,0, Supplementary Article/Info 2 without ABS sensor ring, Supplementary Article/Info 2 without wheel bearing, Support plate diameter [mm] 52,0, Thread Size M12x1,5, Total brake drum height [mm] 76,0
