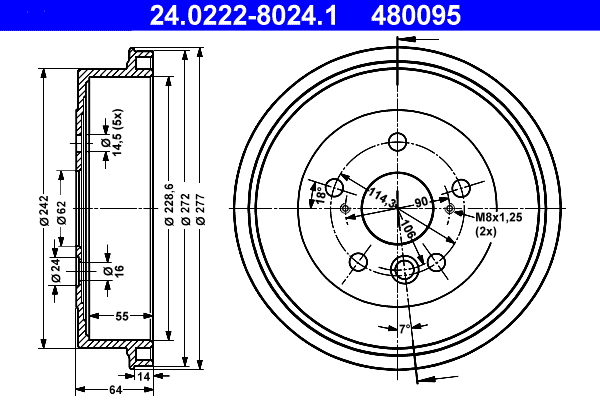

Specifications
| Bolt Hole Circle Ø (mm) | 114.3 |
| Bore Diameter (mm) | 14.5 |
| Inner brake drum diameter (mm) | 229 |
| Inner brake drum height (mm) | 55.0 |
| MAPP code available , max. brake drum reboring dimension (mm) | 230.6 |
| Number of Holes 5 | |
| Outer brake drum diameter (mm) | 277.0 |
| Support plate diameter (mm) | 62.0 |
| Total brake drum height (mm) | 64.0 |
Bolt Hole Circle Ø [mm] 114,3, Bore Diameter [mm] 14,5, Inner brake drum diameter [mm] 229, Inner brake drum height [mm] 55,0, MAPP code available , max. brake drum reboring dimension [mm] 230,6, Number of Holes 5, Outer brake drum diameter [mm] 277,0, Support plate diameter [mm] 62,0, Total brake drum height [mm] 64,0
