Brake Drum
Braking System

Brake Drum

Part No. 24.0223-0011.1 · SKU 24.0223-0011.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

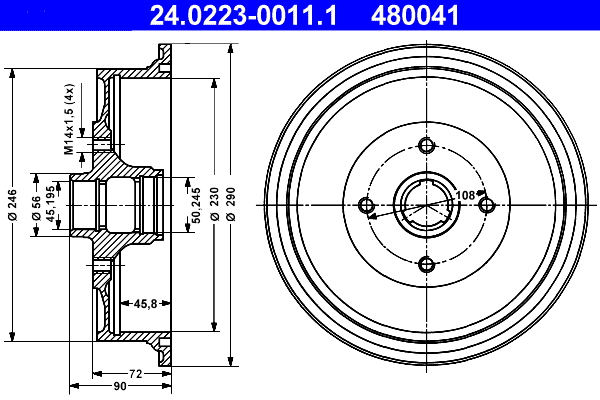

Specifications

Bolt Hole Circle Ø (mm)108.0
Inner brake drum diameter (mm)230.0
Inner brake drum height (mm)45.8
Inner Diameter 2 (mm)45.2
MAPP code available , max. brake drum reboring dimension (mm)231.0
Number of Holes 4
Outer brake drum diameter (mm)230.0
Supplementary Article/Info 2 without wheel bearing
Support plate diameter (mm)50.3
Thread Size M14x1,5
Total brake drum height (mm)90.0
Bolt Hole Circle Ø [mm] 108,0, Inner brake drum diameter [mm] 230,0, Inner brake drum height [mm] 45,8, Inner Diameter 2 [mm] 45,2, MAPP code available , max. brake drum reboring dimension [mm] 231,0, Number of Holes 4, Outer brake drum diameter [mm] 230,0, Supplementary Article/Info 2 without wheel bearing, Support plate diameter [mm] 50,3, Thread Size M14x1,5, Total brake drum height [mm] 90,0
Fits: AUDI

Interchangeable Part Numbers

BENDIX329237B BOSCH0 986 477 052 BREMBO14.5599.10 CIFAM700-198K CIFAM700-198 DELPHIBF319 FTEBT201 HELLA8DT 355 301-521 JURID329237J METELLI18-0198K METELLI18-0198 MGAT7460 MGATR7460 NK254721 OMC100618 PAGID62928 PEX15.0093 QUINTON HAZELL7061.00 QUINTON HAZELLBDR201 QUINTON HAZELLBTF201 SEBRO23 26 TEXTAR94009200 TEXTAR94021400 TEXTAR98100 0092 0 1 TEXTAR98100 0214 0 1 TRWDB4085 ZIMMERMANN100.1648.00

OE Numbers — VAG

443 501 615 B
MakeModelType / Engine YearsCCkWHP
AUDI 100 C3 Avant (445, 446) 1.9 1982 – 1990 1921 74 100
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Turbo 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.0 D 1982 – 1990 1986 51 70
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 64 87
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 74 100
AUDI 100 C3 Avant (445, 446) 2.5 TDI 1982 – 1990 2461 88 120
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.3 E quattro 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.3 quattro 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 E quattro 1982 – 1990 2226 88 120
AUDI 100 C3 Avant (445, 446) 2.4 D 1982 – 1990 2370 60 82
AUDI 100 C3 Avant (445, 446) 2.2 Turbo quattro 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 Cat quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 E 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.2 Cat 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Cat quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 1.8 Cat 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 96 131
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 82 112
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 118 160
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 117 159
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 97 132
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2144 79 107
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 100 136
AUDI 100 C3 Avant (445, 446) 2.0 E Cat 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.0 1982 – 1990 1994 83 113
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 55 75
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 100 136
AUDI 100 C3 Saloon (443, 444) 2.2 Turbo 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 75 102
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 96 130
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 79 107
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Cat 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 1.8 Cat 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 Cat 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 83 113
AUDI 100 C3 Saloon (443, 444) 1.9 1982 – 1991 1921 74 100
AUDI 100 C3 Saloon (443, 444) 2.3 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2144 118 160
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 2.3 E quattro 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 2.2 E Turbo quattro 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 55 75
AUDI 100 C3 Saloon (443, 444) 2.4 D 1982 – 1991 2370 60 82
AUDI 100 C3 Saloon (443, 444) 2.2 E quattro 1982 – 1991 2226 88 120
AUDI 100 C3 Saloon (443, 444) 1.8 Cat quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.2 Cat quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 2.5 TDI 1982 – 1991 2461 88 120
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 74 100
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 64 87
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 51 70
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 100 136
