Brake Drum
Braking System

Brake Drum

Part No. 24.0223-0014.1 · SKU 24.0223-0014.1-ATE
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

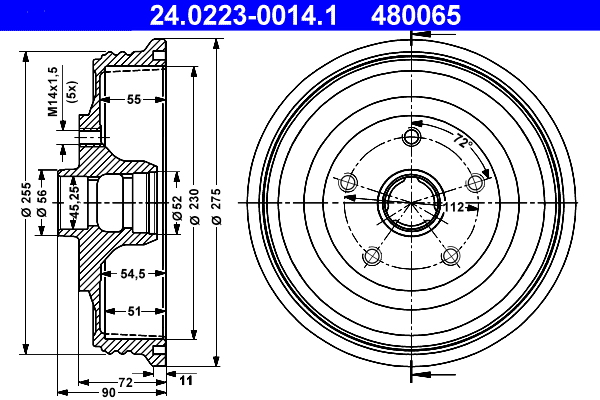

Specifications

Bolt Hole Circle Ø (mm)112.0
Inner brake drum diameter (mm)230.0
Inner brake drum height (mm)51.0
Inner Diameter 2 (mm)45.3
MAPP code available , max. brake drum reboring dimension (mm)231.0
Number of Holes 5
Outer brake drum diameter (mm)275.0
Supplementary Article/Info 2 without wheel bearing
Support plate diameter (mm)52.0
Thread Size M14x1,5
Total brake drum height (mm)90.0
Bolt Hole Circle Ø [mm] 112,0, Inner brake drum diameter [mm] 230,0, Inner brake drum height [mm] 51,0, Inner Diameter 2 [mm] 45,3, MAPP code available , max. brake drum reboring dimension [mm] 231,0, Number of Holes 5, Outer brake drum diameter [mm] 275,0, Supplementary Article/Info 2 without wheel bearing, Support plate diameter [mm] 52,0, Thread Size M14x1,5, Total brake drum height [mm] 90,0
Fits: AUDI

Interchangeable Part Numbers

BENDIX329247B BREMBO14.7242.10 CIFAM700-207K CIFAM700-207 CIFAM700-211K CIFAM700-211 DELPHIBF298 FTEBT245 HELLA8DT 355 301-621 METELLI18-0207K METELLI18-0207 METELLI18-0211K METELLI18-0211 MGAT7459 MGATR7459 NK254722 OMC100633 PAGID63904 PEX15.0100 QUINTON HAZELLBDR245 QUINTON HAZELLBDR557 QUINTON HAZELLBTF324 SEBRO23 45 TEXTAR94012700 TEXTAR98100 0127 0 1 TRWDB4221 TRWDB4378 ZIMMERMANN100.1646.00

OE Numbers — VAG

4A0 501 615 A 4A0 501 615 B
MakeModelType / Engine YearsCCkWHP
AUDI 100 C4 Avant (4A5) 2.4 D 1990 – 1994 2370 60 82
AUDI 100 C4 Avant (4A5) 2.3 E quattro 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.8 E 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) 2.3 E 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) S4 Turbo quattro 1990 – 1994 2226 169 230
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 74 100
AUDI 100 C4 Avant (4A5) 2.5 TDI 1990 – 1994 2461 85 115
AUDI 100 C4 Avant (4A5) 2.0 E quattro 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.6 quattro 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 102 139
AUDI 100 C4 Avant (4A5) 2.8 E quattro 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) S4 V8 quattro 1990 – 1994 4172 206 280
AUDI 100 C4 Avant (4A5) 2.0 E 16V 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.0 E 16V quattro 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.6 E quattro 1990 – 1994 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E quattro 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E 16V 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.0 E 16V quattro 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.4 D 1990 – 1996 2370 60 82
AUDI 100 C4 Saloon (4A2) S4 V8 quattro 1990 – 1996 4172 206 280
AUDI 100 C4 Saloon (4A2) 2.8 E quattro 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.3 E quattro 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) S4 Turbo quattro 1990 – 1996 2226 169 230
AUDI 100 C4 Saloon (4A2) 2.8 E 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.3 E 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.0 E 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.0 1990 – 1996 1984 74 100
AUDI 100 C4 Saloon (4A2) 2.5 TDI 1990 – 1996 2461 85 115
