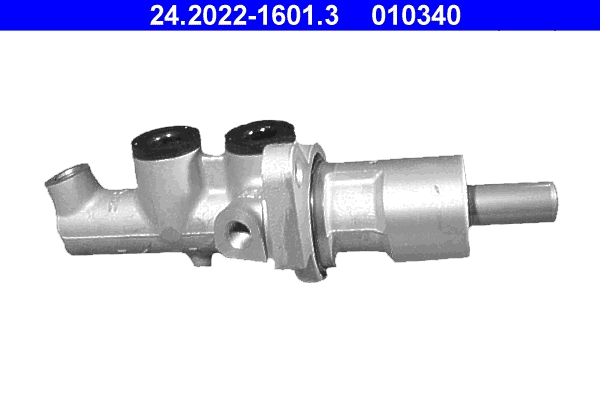

Brake Master Cylinder
Braking System

Brake Master Cylinder

Part No. 24.2022-1601.3 · SKU 24.2022-1601.3-ATE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Diameter 1 (mm)22.2
Diameter 2 (mm)17.5
Length 1 (mm)58
Length 2 (mm)113
MAPP code available
Number of connectors 3
Thread Size M10x1
Diameter 1 [mm] 22,2, Diameter 2 [mm] 17,5, Length 1 [mm] 58, Length 2 [mm] 113, MAPP code available , Number of connectors 3, Thread Size M10x1
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

BENDIX131626B BOSCH0 986 480 351 BREMBO M50 012 BREMBOM50012 CIFAM202-175 DELPHILM23626 FEBI BILSTEIN12272 FERODOFHM503 FTEH17854.0.1 HELLA8AM 355 500-281 JAPCAR232531 LPR1856 METELLI05-0175 MGAMC2252 NK823305 PAGID80004 PEX2.22.263 ROADHOUSE1022.32 TEXTAR33002400 TRWPMH140 UBD82949 VALEO350650

OE Numbers — MERCEDES-BENZ

004 430 17 01 004 430 24 01 005 430 59 01 A0044301701 A0044302401 A0054305901
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ 190 (W201) 2.0 (201.022) 1982 – 1993 1996 66 90
MERCEDES-BENZ 190 (W201) E 2.5-16 (201.035) 1982 – 1993 2498 143 194
MERCEDES-BENZ 190 (W201) 190 D (201.122) 1982 – 1993 2197 54 72
MERCEDES-BENZ 190 (W201) 2.6 1982 – 1993 2599 118 160
MERCEDES-BENZ 190 (W201) 2.3 E 1982 – 1993 2299 100 136
MERCEDES-BENZ 190 (W201) 2.3 1982 – 1993 2299 97 132
MERCEDES-BENZ 190 (W201) E 2.0 1982 – 1993 1996 93 126
MERCEDES-BENZ 190 (W201) E 2.6 (201.029) 1982 – 1993 2597 118 160
MERCEDES-BENZ 190 (W201) E 2.5-16 Evolution II 1982 – 1993 2498 173 235
MERCEDES-BENZ 190 (W201) Turbo-D 2.5 (201.128) 1982 – 1993 2497 93 126
MERCEDES-BENZ 190 (W201) Turbo-D 2.5 (201.128) 1982 – 1993 2497 90 122
MERCEDES-BENZ 190 (W201) D 2.5 (201.126) 1982 – 1993 2497 69 94
MERCEDES-BENZ 190 (W201) D 2.5 (201.126) 1982 – 1993 2497 66 90
MERCEDES-BENZ 190 (W201) D 2.0 (201.122) 1982 – 1993 1997 55 75
MERCEDES-BENZ 190 (W201) D 2.0 (201.122) 1982 – 1993 1997 53 72
MERCEDES-BENZ 190 (W201) E 2.5-16 (201.035) 1982 – 1993 2498 150 204
MERCEDES-BENZ 190 (W201) E 1.8 (201.018) 1982 – 1993 1797 80 109
MERCEDES-BENZ 190 (W201) E 2.0 (201.024) 1982 – 1993 1996 83 113
MERCEDES-BENZ 190 (W201) E 2.0 (201.024) 1982 – 1993 1996 85 116
MERCEDES-BENZ 190 (W201) 2.0 (201.023) 1982 – 1993 1996 75 102
MERCEDES-BENZ 190 (W201) 2.0 (201.023) 1982 – 1993 1996 77 105
MERCEDES-BENZ 190 (W201) E 2.0 1982 – 1993 1996 87 118
MERCEDES-BENZ 190 (W201) E 2.0 (201.024) 1982 – 1993 1996 90 122
MERCEDES-BENZ 190 (W201) E 2.6 1982 – 1993 2597 122 166
MERCEDES-BENZ 190 (W201) E 2.5-16 Evolution (201.036) 1982 – 1993 2498 143 194
MERCEDES-BENZ 190 (W201) E 2.3 (201.028) 1982 – 1993 2298 100 136
MERCEDES-BENZ 190 (W201) E 2.3 1982 – 1993 2298 97 132
MERCEDES-BENZ 190 (W201) E 2.3-16 (201.034) 1982 – 1993 2298 136 185
MERCEDES-BENZ 190 (W201) E 2.3-16 1982 – 1993 2298 130 177
MERCEDES-BENZ 190 (W201) E 2.3-16 1982 – 1993 2298 125 170
MERCEDES-BENZ C-CLASS (W202) C 200 Kompressor (202.025) 1993 – 2000 1998 141 192
MERCEDES-BENZ C-CLASS (W202) C 43 AMG 1993 – 2000 4266 205 279
MERCEDES-BENZ C-CLASS (W202) C 230 (202.024) 1993 – 2000 2295 138 188
MERCEDES-BENZ C-CLASS (W202) C 36 AMG (202.028) 1993 – 2000 3606 200 272
MERCEDES-BENZ C-CLASS (W202) C 220 D (202.021) 1993 – 2000 2155 55 75
MERCEDES-BENZ C-CLASS (W202) C 200 CDI (202.134) 1993 – 2000 2151 75 102
MERCEDES-BENZ C-CLASS (W202) C 220 CDI (202.133) 1993 – 2000 2151 92 125
MERCEDES-BENZ C-CLASS (W202) C 43 AMG (202.033) 1993 – 2000 4266 225 306
MERCEDES-BENZ C-CLASS (W202) C 280 (202.029) 1993 – 2000 2799 145 197
MERCEDES-BENZ C-CLASS (W202) C 240 (202.026) 1993 – 2000 2398 125 170
MERCEDES-BENZ C-CLASS (W202) C 200 D (202.122) 1993 – 2000 1997 65 88
MERCEDES-BENZ C-CLASS (W202) C 230 (202.023) 1993 – 2000 2295 110 150
MERCEDES-BENZ C-CLASS (W202) C 250 Turbo-D (202.128) 1993 – 2000 2497 110 150
MERCEDES-BENZ C-CLASS (W202) C 200 Kompressor (202.025) 1993 – 2000 1998 132 180
MERCEDES-BENZ C-CLASS (W202) C 230 Kompressor (202.024) 1993 – 2000 2295 142 193
MERCEDES-BENZ C-CLASS (W202) C 180 (202.018) 1993 – 2000 1799 89 121
MERCEDES-BENZ C-CLASS (W202) C 36 AMG (202.028) 1993 – 2000 3606 206 280
MERCEDES-BENZ C-CLASS (W202) C 200 (202.020) 1993 – 2000 1998 100 136
MERCEDES-BENZ C-CLASS (W202) C 280 (202.028) 1993 – 2000 2799 142 193
MERCEDES-BENZ C-CLASS (W202) C 220 (202.022) 1993 – 2000 2199 110 150
MERCEDES-BENZ C-CLASS (W202) C 180 (202.018) 1993 – 2000 1799 90 122
MERCEDES-BENZ C-CLASS (W202) C 250 D (202.125) 1993 – 2000 2497 83 113
MERCEDES-BENZ C-CLASS (W202) C 220 D (202.121) 1993 – 2000 2155 70 95
MERCEDES-BENZ C-CLASS (W202) C 200 D (202.120) 1993 – 2000 1997 55 75
