Brake Master Cylinder
Braking System

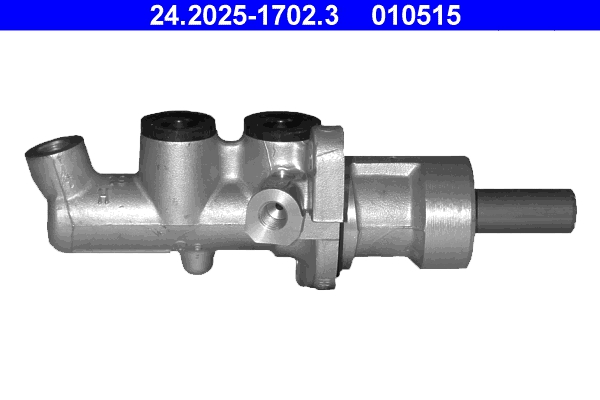

Brake Master Cylinder

Part No. 24.2025-1702.3 · SKU 24.2025-1702.3-ATE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Diameter 1 (mm)25.4
Diameter 2 (mm)19.0
Length 1 (mm)51.3
Length 2 (mm)106.2
MAPP code available
Number of connectors 2
Thread Size 1 1x M10x1
Thread Size 2 1x M12x1
Diameter 1 [mm] 25,4, Diameter 2 [mm] 19,0, Length 1 [mm] 51,3, Length 2 [mm] 106,2, MAPP code available , Number of connectors 2, Thread Size 1 1x M10x1, Thread Size 2 1x M12x1
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

BENDIX133002B BOSCH0 986 480 723 BREMBO M50 007 BREMBOM50007 DELPHILM80249 FTEH19883.0.1 HELLA8AM 355 500-501 PAGID80240 PEX2.25.359 QUINTON HAZELLHF19062 TEXTAR33007400 TRWPML103

OE Numbers — MERCEDES-BENZ

005 430 65 01 A0054306501
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ E-CLASS (W210) E 300 Turbo-D (210.025) 1995 – 2003 2996 130 177
MERCEDES-BENZ E-CLASS (W210) E 280 (210.053) 1995 – 2003 2799 142 193
MERCEDES-BENZ E-CLASS (W210) E 420 (210.072) 1995 – 2003 4196 205 279
MERCEDES-BENZ E-CLASS (W210) E 50 AMG (210.072) 1995 – 2003 4973 255 347
MERCEDES-BENZ E-CLASS (W210) E 320 CDI (210.026) 1995 – 2003 3222 145 197
MERCEDES-BENZ E-CLASS (W210) E 270 CDI (210.016) 1995 – 2003 2685 125 170
MERCEDES-BENZ E-CLASS (W210) E 220 CDI (210.006) 1995 – 2003 2148 105 143
MERCEDES-BENZ E-CLASS (W210) E 200 CDI (210.007) 1995 – 2003 2148 85 116
MERCEDES-BENZ E-CLASS (W210) E 270 CDI (210.016) 1995 – 2003 2685 120 163
MERCEDES-BENZ E-CLASS (W210) E 280 (210.063) 1995 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS (W210) E 280 4-matic (210.081) 1995 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS (W210) E 320 (210.065) 1995 – 2003 3199 165 224
MERCEDES-BENZ E-CLASS (W210) E 55 AMG 4-matic (210.074) 1995 – 2003 5439 260 354
MERCEDES-BENZ E-CLASS (W210) E 220 D 1995 – 2003 2155 55 75
MERCEDES-BENZ E-CLASS (W210) E 200 CDI (210.007) 1995 – 2003 2151 75 102
MERCEDES-BENZ E-CLASS (W210) E 220 CDI (210.006) 1995 – 2003 2151 92 125
MERCEDES-BENZ E-CLASS (W210) E 320 4-matic (210.082) 1995 – 2003 3199 165 224
MERCEDES-BENZ E-CLASS (W210) E 250 Turbo-D (210.015) 1995 – 2003 2497 110 150
MERCEDES-BENZ E-CLASS (W210) E 55 AMG (210.074) 1995 – 2003 5439 260 354
MERCEDES-BENZ E-CLASS (W210) E 200 Kompressor (210.045) 1995 – 2003 1998 137 186
MERCEDES-BENZ E-CLASS (W210) E 200 D (210.003) 1995 – 2003 1997 65 88
MERCEDES-BENZ E-CLASS (W210) E 240 (210.061) 1995 – 2003 2398 125 170
MERCEDES-BENZ E-CLASS (W210) E 430 (210.070) 1995 – 2003 4266 205 279
MERCEDES-BENZ E-CLASS (W210) E 430 4-matic (210.083) 1995 – 2003 4266 205 279
MERCEDES-BENZ E-CLASS (W210) E 220 CDI (210.006) 1995 – 2003 2148 100 136
MERCEDES-BENZ E-CLASS (W210) E 55 AMG 1995 – 2003 5439 255 347
MERCEDES-BENZ E-CLASS (W210) E 36 AMG 1995 – 2003 3606 200 272
MERCEDES-BENZ E-CLASS (W210) E 320 4-matic (210.082) 1995 – 2003 3199 160 218
MERCEDES-BENZ E-CLASS (W210) E 240 (210.062) 1995 – 2003 2597 125 170
MERCEDES-BENZ E-CLASS (W210) E 200 Kompressor (210.048) 1995 – 2003 1998 120 163
MERCEDES-BENZ E-CLASS (W210) E 320 (210.065) 1995 – 2003 3199 160 218
MERCEDES-BENZ E-CLASS (W210) E 220 D (210.004) 1995 – 2003 2155 70 95
MERCEDES-BENZ E-CLASS (W210) E 250 D (210.010) 1995 – 2003 2497 83 113
MERCEDES-BENZ E-CLASS (W210) E 200 (210.035) 1995 – 2003 1998 100 136
MERCEDES-BENZ E-CLASS (W210) E 55 AMG (210.074) 1995 – 2003 5439 260 354
MERCEDES-BENZ E-CLASS (W210) E 290 Turbo-D (210.017) 1995 – 2003 2874 95 129
MERCEDES-BENZ E-CLASS (W210) E 300 D (210.020) 1995 – 2003 2996 100 136
MERCEDES-BENZ E-CLASS (W210) E 230 (210.037) 1995 – 2003 2295 110 150
MERCEDES-BENZ E-CLASS (W210) E 320 (210.055) 1995 – 2003 3199 162 220
MERCEDES-BENZ E-CLASS T-Model (S210) E 200 T Kompressor (210.245) 1996 – 2003 1998 137 186
MERCEDES-BENZ E-CLASS T-Model (S210) E 280 T (210.263) 1996 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 4-matic 1996 – 2003 3199 160 218
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 1996 – 2003 3199 160 218
MERCEDES-BENZ E-CLASS T-Model (S210) E 55 T AMG (210.274) 1996 – 2003 5439 260 354
MERCEDES-BENZ E-CLASS T-Model (S210) E 220 T CDI (210.206) 1996 – 2003 2148 100 136
MERCEDES-BENZ E-CLASS T-Model (S210) E 220 T CDI (210.206) 1996 – 2003 2151 92 125
MERCEDES-BENZ E-CLASS T-Model (S210) E 240 T (210.262) 1996 – 2003 2597 125 170
MERCEDES-BENZ E-CLASS T-Model (S210) E 200 T Kompressor (210.248) 1996 – 2003 1998 120 163
MERCEDES-BENZ E-CLASS T-Model (S210) E 430 T 4-matic (210.283) 1996 – 2003 4266 205 279
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 T CDI (210.226) 1996 – 2003 3222 145 197
MERCEDES-BENZ E-CLASS T-Model (S210) E 270 T CDI (210.216) 1996 – 2003 2685 125 170
MERCEDES-BENZ E-CLASS T-Model (S210) E 220 T CDI (210.206) 1996 – 2003 2148 105 143
MERCEDES-BENZ E-CLASS T-Model (S210) E 240 T (210.261) 1996 – 2003 2398 125 170
MERCEDES-BENZ E-CLASS T-Model (S210) E 200 T (210.235) 1996 – 2003 1998 100 136
MERCEDES-BENZ E-CLASS T-Model (S210) E 230 T (210.237) 1996 – 2003 2295 110 150
MERCEDES-BENZ E-CLASS T-Model (S210) E 420 T (210.272) 1996 – 2003 4196 205 279
MERCEDES-BENZ E-CLASS T-Model (S210) E 290 T Turbo-D (210.217) 1996 – 2003 2874 95 129
MERCEDES-BENZ E-CLASS T-Model (S210) E 250 T D (210.210) 1996 – 2003 2497 83 113
MERCEDES-BENZ E-CLASS T-Model (S210) E 270 T CDI 1996 – 2003 2685 120 163
MERCEDES-BENZ E-CLASS T-Model (S210) E 280 T 4-matic (210.281) 1996 – 2003 2799 150 204
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 T (210.265) 1996 – 2003 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S210) E 320 T 4-matic (210.282) 1996 – 2003 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S210) E 300 T Turbo-D (210.225) 1996 – 2003 2996 130 177
MERCEDES-BENZ E-CLASS T-Model (S210) E 250 T Turbo-D (210.215) 1996 – 2003 2497 110 150
MERCEDES-BENZ E-CLASS T-Model (S210) E 430 T (210.270) 1996 – 2003 4266 205 279
MERCEDES-BENZ S-CLASS (W140) 300 SE 2.8 (140.028) 1991 – 1998 2799 145 197
MERCEDES-BENZ S-CLASS (W140) S 280 (140.028) 1991 – 1998 2799 142 193
MERCEDES-BENZ S-CLASS (W140) 300 SE, SEL/S320 (140.032, 140.033) 1991 – 1998 3199 170 231
MERCEDES-BENZ S-CLASS (W140) S 320 1991 – 1998 3199 162 220
MERCEDES-BENZ S-CLASS (W140) S 350 Turbo-D (140.134) 1991 – 1998 3449 110 150
MERCEDES-BENZ S-CLASS (W140) S 420 (140.042, 140.043) 1991 – 1998 4196 205 279
MERCEDES-BENZ S-CLASS (W140) 400 SE, SEL/S420 (140.042, 140.043) 1991 – 1998 4196 210 286
MERCEDES-BENZ S-CLASS (W140) S 500 (140.050, 140.051) 1991 – 1998 4973 235 320
MERCEDES-BENZ S-CLASS (W140) 500 SE, SEL (140.050, 140.051) 1991 – 1998 4973 240 326
MERCEDES-BENZ S-CLASS (W140) S 600 (140.056, 140.057) 1991 – 1998 5987 290 394
MERCEDES-BENZ S-CLASS (W140) 600 SE, SEL (140.056, 140.057) 1991 – 1998 5987 300 408
MERCEDES-BENZ S-CLASS (W140) S 420 1991 – 1998 4196 214 291
MERCEDES-BENZ S-CLASS (W140) S 300 Turbo-D (140.135) 1991 – 1998 2996 130 177
MERCEDES-BENZ SL (R129) 500 SL (129.066) 1989 – 2004 4973 240 326
MERCEDES-BENZ SL (R129) 300 SL (129.060) 1989 – 2004 2960 140 190
MERCEDES-BENZ SL (R129) 600 (129.076) 1989 – 2004 5987 290 394
MERCEDES-BENZ SL (R129) SL 320 (129.063) 1989 – 2004 3199 162 220
MERCEDES-BENZ SL (R129) 300 SL-24 (129.061) 1989 – 2004 2960 170 231
MERCEDES-BENZ SL (R129) 320 (129.063) 1989 – 2004 3199 170 231
MERCEDES-BENZ SL (R129) 500 (129.067) 1989 – 2004 4973 235 320
MERCEDES-BENZ SL (R129) 300 SL 1989 – 2004 2962 162 220
MERCEDES-BENZ SL (R129) 55 AMG 1989 – 2004 5439 350 476
MERCEDES-BENZ SL (R129) 600 SL (129.076) 1989 – 2004 5987 300 408
MERCEDES-BENZ SL (R129) SL 73 AMG (129.076) 1989 – 2004 7291 386 525
MERCEDES-BENZ SL (R129) 55 AMG 1989 – 2004 5439 260 354
MERCEDES-BENZ SL (R129) 500 (129.068) 1989 – 2004 4966 225 306
MERCEDES-BENZ SL (R129) 320 (129.064) 1989 – 2004 3199 165 224
MERCEDES-BENZ SL (R129) 280 (129.059) 1989 – 2004 2799 150 204
MERCEDES-BENZ SL (R129) 60 AMG (129.067) 1989 – 2004 5956 280 381
MERCEDES-BENZ SL (R129) 280 (129.058) 1989 – 2004 2799 142 193
