Brake Disc

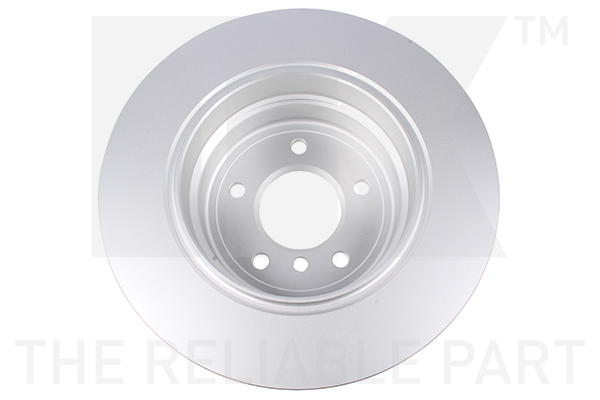

Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. 3115120 · SKU 3115120-NK
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

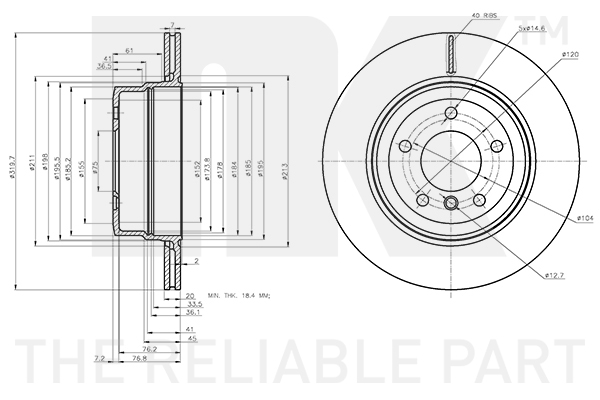

Specifications

Brake Disc Thickness (mm)20
Brake Disc Type Vented
Centering Diameter (mm)75
Height (mm)86
Minimum thickness (mm)18.4
Net weight (kg)7.94
Outer Diameter (mm)320
Rim Hole Number 5
Surface Coated
Brake Disc Thickness [mm] 20, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 86, Minimum thickness [mm] 18,4, Net weight [kg] 7,94, Outer Diameter [mm] 320, Rim Hole Number 5, Surface Coated
Fits: BMW

Interchangeable Part Numbers

ATE24.0120-0213.1 BENDIX562701BC BOSCH 0 986 479351 BOSCH0986479351 BRECO BV8923 BRECOBV8923 BREMBO09.B313.11 EUROBRAKE58153115120 FTEBS7242HB HELLA PAGID 8DD 355119-201 HELLA PAGID8DD355119201 NK3115120 TEXTAR92202003 TRISCAN 812011197 TRISCAN812011197 TRISCAN812011197C TRWDF6299 WINHERE BRAKEWH21168 WINHERE BRAKEYH21168 ZIMMERMANN150.3466.20

OE Numbers — BMW 34 21 6 763

345

OE Numbers — BMW

34216763345 34216864053

OE Numbers — BMW 34 21 6 864

053
MakeModelType / Engine YearsCCkWHP
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 525 d xDrive 2001 – 2010 2993 145 197
BMW 5 (E60) 530 i xDrive 2001 – 2010 2996 200 272
BMW 5 (E60) 525 i xDrive 2001 – 2010 2996 160 218
BMW 5 (E60) 520 i 2001 – 2010 1995 120 163
BMW 5 (E60) 520 i 2001 – 2010 1995 125 170
BMW 5 (E60) 520 d 2001 – 2010 1995 130 177
BMW 5 (E60) 525 xd 2001 – 2010 2993 145 197
BMW 5 (E60) 535 i 2001 – 2010 2979 225 306
BMW 5 (E60) 530 i 2001 – 2010 2996 187 254
BMW 5 (E60) 530 d xDrive 2001 – 2010 2993 173 235
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 530 xd 2001 – 2010 2993 173 235
BMW 5 (E60) 530 d 2001 – 2010 2993 173 235
BMW 5 (E60) 525 d 2001 – 2010 2993 145 197
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 525 xi 2001 – 2010 2996 160 218
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 535 d 2001 – 2010 2993 210 286
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 520 d 2001 – 2010 1995 125 170
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 528 i xDrive 2001 – 2010 2996 172 234
BMW 5 (E60) 530 i 2001 – 2010 2979 168 228
BMW 5 (E60) 528 i 2001 – 2010 2996 172 234
BMW 5 (E60) 525 i 2001 – 2010 2996 155 211
BMW 5 (E60) 525 i 2001 – 2010 2497 155 211
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 168 228
BMW 5 (E60) 535 xi 2001 – 2010 2979 225 306
BMW 5 (E60) 535 i 2001 – 2010 2979 224 305
BMW 5 (E60) 540 i 2001 – 2010 4000 220 299
BMW 5 (E60) 520 i 2001 – 2010 1995 115 156
BMW 5 (E60) 530 d 2001 – 2010 2993 155 211
BMW 5 (E60) 535 i xDrive 2001 – 2010 2979 224 305
BMW 5 (E60) 550 i 2001 – 2010 4799 261 355
BMW 5 (E60) 545 i 2001 – 2010 4398 242 329
BMW 5 (E60) 535 d 2001 – 2010 2993 200 272
BMW 5 (E60) 530 xi 2001 – 2010 2996 190 258
BMW 5 (E60) 525 xi 2001 – 2010 2497 160 218
BMW 5 (E60) 530 d 2001 – 2010 2993 170 231
BMW 5 (E60) 520 d 2001 – 2010 1995 120 163
BMW 5 (E60) 550 i 2001 – 2010 4799 270 367
BMW 5 (E60) 540 i 2001 – 2010 4000 225 306
BMW 5 (E60) 523 i 2001 – 2010 2497 130 177
BMW 5 (E60) 530 i 2001 – 2010 2996 190 258
BMW 5 (E60) 525 i 2001 – 2010 2497 160 218
BMW 5 (E60) M5 2001 – 2010 4999 373 507
BMW 5 (E60) 525 d 2001 – 2010 2497 130 177
BMW 5 (E60) 545 i 2001 – 2010 4398 245 333
BMW 5 (E60) 525 i 2001 – 2010 2494 141 192
BMW 5 (E60) 530 d 2001 – 2010 2993 160 218
BMW 5 (E60) 530 i 2001 – 2010 2979 170 231
BMW 5 (E60) 520 i 2001 – 2010 2171 125 170
BMW 5 (E60) 525 i 2001 – 2010 2494 137 186
BMW 5 (E60) 520 d 2001 – 2010 1995 110 150
BMW 5 (E60) 525 d 2001 – 2010 2497 120 163
BMW 5 (E60) 530 xd 2001 – 2010 2993 170 231
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 200 272
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 525 d 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 160 218
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) 545 i 2004 – 2010 4398 245 333
BMW 5 Touring (E61) 525 i 2004 – 2010 2494 141 192
BMW 5 Touring (E61) 525 xi 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 155 211
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 120 163
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 210 286
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 525 xd 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 525 xi 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 130 177
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 125 170
BMW 5 Touring (E61) 550 i 2004 – 2010 4799 270 367
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 5 Touring (E61) M5 2004 – 2010 4999 373 507
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 110 150
BMW 5 Touring (E61) 525 i xDrive 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 530 i xDrive 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 d xDrive 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d xDrive 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 535 xi 2004 – 2010 2979 224 305
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 155 211
