Braking System

Brake Disc

Name: Brake Disc
Brand: NK
SKU: 314048-NK
Availability: OutOfStock

Part No. 314048 · SKU 314048-NK

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

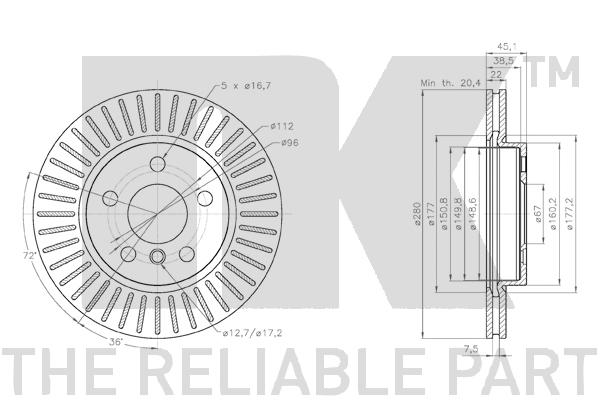

Specifications

Brake Disc Thickness (mm)	22
Brake Disc Type Vented
Centering Diameter (mm)	67
Height (mm)	45
Minimum thickness (mm)	20
Net weight (kg)	5.79
Outer Diameter (mm)	280
Rim Hole Number 5
Surface Coated

Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 67, Height [mm] 45, Minimum thickness [mm] 20, Net weight [kg] 5,79, Outer Diameter [mm] 280, Rim Hole Number 5, Surface Coated
Fits: BMW, MINI

Interchangeable Part Numbers

A.B.S.18380 AKEBONOBN-1378E APECDSK3124 ATE24.0122-0292.1 BLUE PRINTADB114319 BORG & BECKBBD5425 BOSCH0 986 479 C97 Brake ENGINEERINGDI957049 BREMBO09.C744.11 COMLINEADC1786V COMLINEAND6689 DELPHIBG4704C EUROBRAKE5815314048 EUROREPAR1667864180 FREMAXBD-0039 ICER78BD0039-2 JURATEKMIN109 LPRB2092VR MINTEXMDC2726 MOTAQUIPLVBD1787 NationalNBD1922 NK314048 OPTIMALBS-9146 PAGID55792 QUINTON HAZELLBDC6084 R BRAKE78RBD20039 REMSA61617.10 REMSA7759.20 SASIC6106308 TEXTAR92279203 TOPRAN502 566 TRISCAN8120 111054C TRWDF6799 WINHERE BRAKEWH21772 WINHERE BRAKEYH21772 ZIMMERMANN150.2926.20 ZIMMERMANN150.2926.52

OE Numbers — BMW

34 11 6 799 347 34 11 6 866 295

Make	Model	Type / Engine	Years	CC	kW	HP
BMW	2 Active Tourer (F45)	220 d xDrive	2013 – 2021	1995	120	163
BMW	2 Active Tourer (F45)	225 xe Plug-in-Hybrid	2013 – 2021	1499	162	220
BMW	2 Active Tourer (F45)	220 i	2013 – 2021	1998	131	178
BMW	2 Active Tourer (F45)	218 i	2013 – 2021	1499	103	140
BMW	2 Active Tourer (F45)	216 i	2013 – 2021	1499	80	109
BMW	2 Active Tourer (F45)	220 i Flex	2013 – 2021	1998	141	192
BMW	2 Active Tourer (F45)	218 d xDrive	2013 – 2021	1995	100	136
BMW	2 Active Tourer (F45)	218 d xDrive	2013 – 2021	1995	110	150
BMW	2 Active Tourer (F45)	225 xe Plug-in-Hybrid	2013 – 2021	1499	165	224
BMW	2 Active Tourer (F45)	216 i	2013 – 2021	1499	75	102
BMW	2 Active Tourer (F45)	220 i	2013 – 2021	1998	120	163
BMW	2 Active Tourer (F45)	218 i	2013 – 2021	1499	100	136
BMW	2 Active Tourer (F45)	220 d	2013 – 2021	1995	120	163
BMW	2 Active Tourer (F45)	218 d	2013 – 2021	1995	100	136
BMW	2 Active Tourer (F45)	214 d	2013 – 2021	1496	70	95
BMW	2 Active Tourer (F45)	225 i xDrive	2013 – 2021	1998	170	231
BMW	2 Active Tourer (F45)	220 i	2013 – 2021	1998	141	192
BMW	2 Active Tourer (F45)	220 d xDrive	2013 – 2021	1995	140	190
BMW	2 Active Tourer (F45)	220 d	2013 – 2021	1995	140	190
BMW	2 Active Tourer (F45)	216 d	2013 – 2021	1496	85	116
BMW	2 Active Tourer (F45)	218 d	2013 – 2021	1995	110	150
BMW	2 Active Tourer (F45)	225 i	2013 – 2021	1998	170	231
