Brake Disc

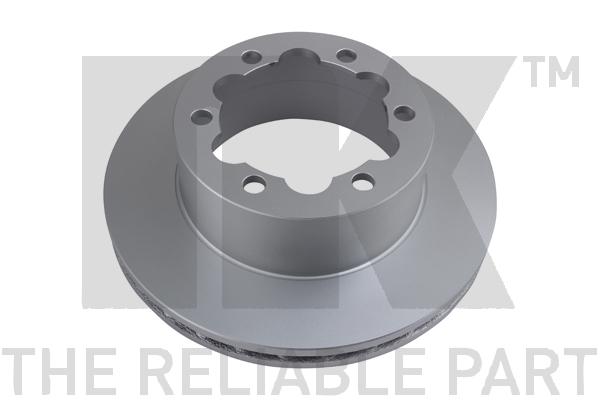

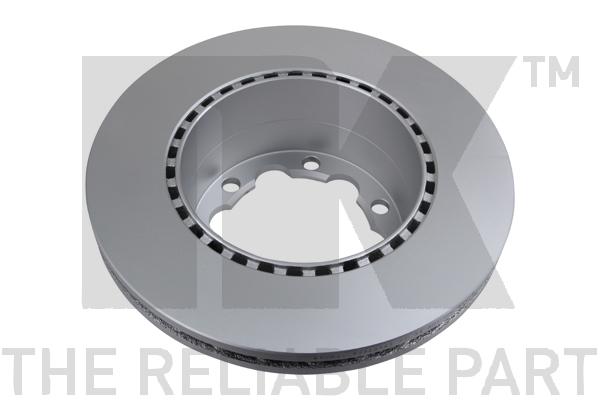

Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. 3147124 · SKU 3147124-NK
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)145
Brake Disc Thickness (mm)28
Brake Disc Type Vented
Centering Diameter (mm)120
Height (mm)93.4
Minimum thickness (mm)25
Net weight (kg)10.02
Outer Diameter (mm)303
Rim Hole Number 6
Surface Coated
Bolt Hole Circle Ø [mm] 145, Brake Disc Thickness [mm] 28, Brake Disc Type Vented, Centering Diameter [mm] 120, Height [mm] 93,4, Minimum thickness [mm] 25, Net weight [kg] 10,02, Outer Diameter [mm] 303, Rim Hole Number 6, Surface Coated
Fits: MERCEDES-BENZ, VW

Interchangeable Part Numbers

A.B.S.09.9510.11 A.B.S.17731 AKEBONOBN-0485E AKEBONOBN-0485 APECDSK2450 APECSDK6474 ASHIKA61-00-0534C ASHIKA61-00-0534 ATE24.0128-0202.1 BENDIX562487B BENDIX BrakingBDS1131 BORG & BECKBBD4569 BORG & BECKBBD5904S BOSCH0986479296 Brake ENGINEERINGDI956434S BRAKEWORLDRS3992 BREMBO09.9510.14 COMLINEADC1645V COMLINEAND6677 DELPHIBG9015 DONPCD18341 EUROBRAKE58152047124 EUROBRAKE58153147124 FEBI BILSTEIN27700 FERODOFCR312A FIRST LINE FBD1633 FIRST LINEFBD1633 FREMAXBD-0192 FTEBS7119 FTEBS7129 FTEBS7129B HELLA 8DD 355118-061 HELLA8DD355118061 HELLA 8DD 355123-182 HELLA8DD355123182 HELLA 8DD 355129-411 HELLA8DD355129411 ICER78BD0192-1 JP GROUP1163204200 JP GROUP1163204209 JP GROUP1163207300 JURATEKMER142 JURID569138J KAMOKA103123 LEMFÖRDER 3121601 LEMFÖRDER3121601 LPRM2044V LPRM2044VR MAGNETI MARELLI360406057200 MAGNETI MARELLI361302040458 MAPCO25812 METZGER 25054E METZGER25054E METZGER6110591 MEYLE 015 5232099 MEYLE0155232099 MEYLE 083 5232099/PD MEYLE0835232099PD MINTEXMDC1773 MINTEXMVK0033 MOTAQUIPLVBD1219Z NAPAPBD8313 NationalNBD1423 NK2047124 NK3147124 OPEN PARTSBDA2326.20 OPTIMALBS-8816 PAGID59434 QUINTON HAZELLBDC5553 R BRAKE78RBD10192 REMSA61036.10 REMSA7326.20 REMYRAD1431C SASIC6106103 STARLINE PB20454 STARLINEPB20454 STELLOX6020-47124V-SX STELLOX6020-47124VK-SX TEXTAR93143400 TEXTAR93143403 TEXTAR93143405 TOPRAN 111653 TOPRAN111653 TRISCAN 812010198C TRISCAN812010198C TRISCAN812010198 TRUSTINGDF1132 TRWDF4919S VALEO187146 WINHERE BRAKEWH20454 WINHERE BRAKEYH20454 ZIMMERMANN 400 647800 ZIMMERMANN400647800 ZIMMERMANN400.6478.20

OE Numbers — AUDI 2E0 615

601

OE Numbers — AUDI

2E0615601

OE Numbers — MERCEDES-BENZ 906 423 01

12

OE Numbers — MERCEDES-BENZ

9064230112 9074230100 907423010007 A9064230112 A907423010007 A9074230100

OE Numbers — MERCEDES-BENZ A907 423 01

0007
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 424 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 3498 190 258
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 416 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 419 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 415 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 418 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 411 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 414 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 415 CDI (906.155) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 413 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 4,6-t Platform/Chassis (B906) 411 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 84 114
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 424 (906.655, 906.657, 906.653) 2006 – 2020 3498 190 258
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 416 CDI (906.653, 906.655, 906.657, 906.633, 906.635,... 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 419 CDI (906.653, 906.655, 906.657) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 411 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 415 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 418 CDI (906.653, 906.655, 906.657) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 413 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 414 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 415 CDI (906.631, 906.633, 906.635, 906.655) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 414 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 416 CDI 4x4 (906.655, 906.657) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 4,6-t Van (B906) 411 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Bus (B906) 515 CDI (906.655, 906.657) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 5-t Bus (B906) 519 CDI (906.655, 906.657) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Bus (B906) 516 CDI (906.655, 906.657) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Bus (B906) 513 CDI (906.655, 906.657) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 513 CDI 4x4 (906.155, 906.253, 906.255, 906.153) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 516 CDI 4x4 (906.153, 906.155, 906.255, 906.253) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 509 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 65 88
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 511 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 515 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 518 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 516 NGT (906.153, 906.155, 906.253, 906.255) 2006 – 2020 1796 115 156
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 516 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 1796 115 156
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 524 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 3498 190 258
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 510 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 70 95
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 513 CDI (906.155, 906.253, 906.255) 2006 – 2020 2148 95 129
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 516 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 511 CDI 4x4 (906.155, 906.253, 906.255) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 515 CDI 4x4 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 518 CDI 4x4 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 519 CDI / BlueTEC 4x4 (906.153, 906.155, 906.253,... 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 513 CDI (906.155, 906.253, 906.255, 906.153) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 511 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 514 CDI (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 514 CDI 4x4 (906.153, 906.155, 906.253, 906.255) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B906) 515 CDI (906.155) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 511 CDI (907.153, 907.155, 907.253, 907.255) 2018 – present 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 514 CDI (907.153, 907.155, 907.253, 907.255) 2018 – present 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 516 CDI (907.153, 907.155, 907.253, 907.255) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 519 CDI (907.153, 907.155, 907.253, 907.255) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 516 CDI All-wheel Drive (907.153, 907.155, 907.253,... 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 519 CDI All-wheel Drive (907.153, 907.155, 907.253,... 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 515 CDI RWD (907.153, 907.155, 907.253, 907.255) 2018 – present 1950 110 150
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 519 CDI RWD (907.153, 907.155, 907.253, 907.255) 2018 – present 1950 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 519 CDI All-wheel Drive (907.153, 907.155, 907.253,... 2018 – present 1950 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 517 CDI RWD (907.153, 907.155, 907.253, 907.255) 2018 – present 1950 125 170
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 4500 (907.153, 907.155) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 4500 (907.153, 907.155) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 3500XD RWD (907.153, 907.155) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 3500XD All-wheel Drive (907.153, 907.155) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Platform/Chassis (B907) 4500 RWD (907.153, 907.155) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Van (B906) 509 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 65 88
MERCEDES-BENZ SPRINTER 5-t Van (B906) 511 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 5-t Van (B906) 515 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 5-t Van (B906) 518 CDI (906.653, 906.655, 906.657) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 5-t Van (B906) 524 (906.653, 906.655, 906.657) 2006 – 2020 3498 190 258
MERCEDES-BENZ SPRINTER 5-t Van (B906) 519 CDI / BlueTEC (906.653, 906.655, 906.657) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B906) 516 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B906) 513 CDI (906.653, 906.655, 906.657) 2006 – 2020 2148 95 129
MERCEDES-BENZ SPRINTER 5-t Van (B906) 510 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 70 95
MERCEDES-BENZ SPRINTER 5-t Van (B906) 518 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2987 135 184
MERCEDES-BENZ SPRINTER 5-t Van (B906) 516 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B906) 511 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2148 80 109
MERCEDES-BENZ SPRINTER 5-t Van (B906) 513 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Van (B906) 515 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2148 110 150
MERCEDES-BENZ SPRINTER 5-t Van (B906) 519 CDI / BlueTEC 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B906) 513 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 95 129
MERCEDES-BENZ SPRINTER 5-t Van (B906) 511 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Van (B906) 514 CDI (906.653, 906.655, 906.657) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Van (B906) 514 CDI 4x4 (906.653, 906.655, 906.657) 2006 – 2020 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Van (B906) 515 CDI (906.655, 906.653, 906.957, 906.657) 2006 – 2020 2143 110 150
MERCEDES-BENZ SPRINTER 5-t Van (B906) 516 2006 – 2020 1796 115 156
MERCEDES-BENZ SPRINTER 5-t Van (B906) 516 NGT (906.655) 2006 – 2020 1796 115 156
MERCEDES-BENZ SPRINTER 5-t Van (B907) 511 CDI (907.653, 907.655, 907.657) 2018 – present 2143 84 114
MERCEDES-BENZ SPRINTER 5-t Van (B907) 514 CDI (907.653, 907.655, 907.657) 2018 – present 2143 105 143
MERCEDES-BENZ SPRINTER 5-t Van (B907) 516 CDI (907.653, 907.655, 907.657) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B907) 519 CDI (907.653, 907.655, 907.657) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 516 CDI All-wheel Drive (907.653, 907.655, 907.657) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B907) 519 CDI All-wheel Drive (907.653, 907.655, 907.657) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 515 CDI (907.653, 907.655, 907.657) 2018 – present 1950 110 150
MERCEDES-BENZ SPRINTER 5-t Van (B907) 517 CDI (907.653, 907.655, 907.657) 2018 – present 1950 125 170
MERCEDES-BENZ SPRINTER 5-t Van (B907) 519 CDI (907.653, 907.655, 907.657) 2018 – present 1950 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 519 CDI All-wheel Drive (907.653, 907.655, 907.657) 2018 – present 1950 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500XD (907.653, 907.655, 907.657) 2018 – present 2143 120 163
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500XD (907.653, 907.655, 907.657) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 4500 (907.653, 907.655, 907.657) 2018 – present 2987 140 190
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500 (907.653, 907.655, 907.657) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500XD (907.653, 907.655, 907.657) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Van (B907) 3500XD All-wheel Drive (907.653, 907.655, 907.657) 2018 – present 1950 155 211
MERCEDES-BENZ SPRINTER 5-t Van (B907) 4500 (907.653, 907.655, 907.657) 2018 – present 1950 155 211
