NK
Braking System

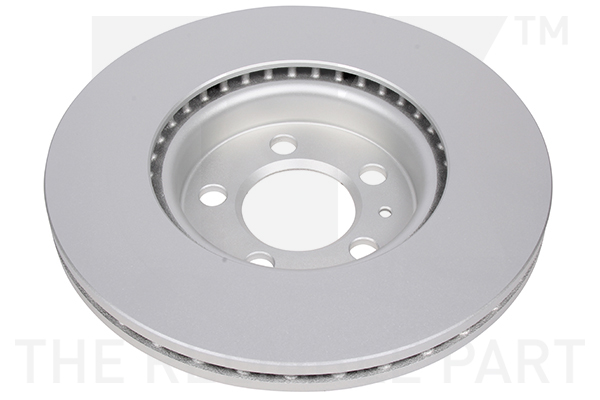

Brake Disc
Part No.
3147177
·
SKU
3147177-NK
Front Axle
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns

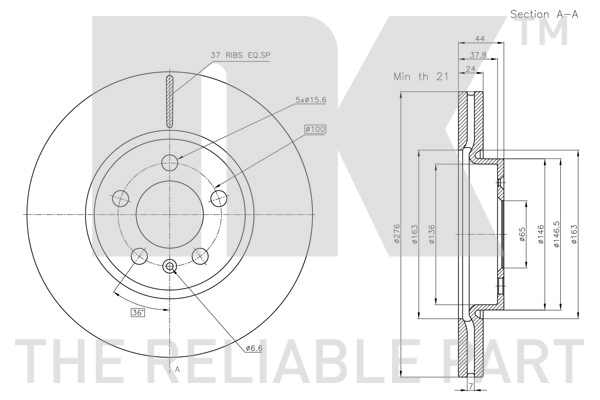

Specifications
| Brake Disc Thickness (mm) | 24 |
| Brake Disc Type Vented |
| Centering Diameter (mm) | 65 |
| Height (mm) | 46 |
| Minimum thickness (mm) | 21 |
| Net weight (kg) | 6.46 |
| Outer Diameter (mm) | 276 |
| Rim Hole Number 5 |
| Surface Coated |
Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 65, Height [mm] 46, Minimum thickness [mm] 21, Net weight [kg] 6,46, Outer Diameter [mm] 276, Rim Hole Number 5, Surface Coated
Fits: AUDI, SEAT, SKODA, VW
Interchangeable Part Numbers
A.B.S.18637
APECDSK3402
APECSDK6969
ATE24.0124-0263.1
BENDIX BrakingBDS1610
BLUE PRINTADBP430098
BREMBO09.D571.11
CAR142.1983
CIFAM800-1842C
COMLINEADC2992V
COMLINEAND7174
DELPHIBG4965C
DONPCD20282
EUROBRAKE58153147177
FEBI BILSTEIN175496
FERODODDF2664C
FREMAXBD-5648
HELLA8DD 355 132-891
JURATEKVAG336
JURID563228JC
KAWE62118 10
METELLI23-1842C
MGAD2174
MINTEXMDC2939C
MOTAQUIPLVBD1952
NAPAPBD8740
NK3147177
OPEN PARTSBDA2867.20
PAGID56137
PILENGAV1721
QUINTON HAZELLBDC6186
sbs18153147177
TEXTAR92313703
TRISCAN8120 291079C
TRUSTINGDF1842
TRWDF6964
VALEO185837
WINHERE BRAKEWH22111
WINHERE BRAKEYH22111
OE Numbers — AUDI
2Q0 615 301 H
| Make | Model | Type / Engine |
Years | CC | kW | HP |
| AUDI |
A1 City Carver (GBH) |
25 TFSI |
2019 – 2022 |
999 |
70 |
95 |
| AUDI |
A1 City Carver (GBH) |
30 TFSI |
2019 – 2022 |
999 |
85 |
116 |
| AUDI |
A1 City Carver (GBH) |
35 TFSI |
2019 – 2022 |
1498 |
110 |
150 |
| AUDI |
A1 City Carver (GBH) |
30 TFSI |
2019 – 2022 |
999 |
81 |
110 |
