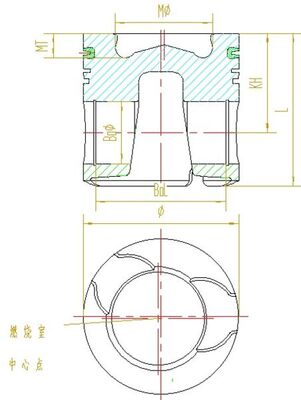

Specifications
| Bolt Head Diameter (mm) | 50.0 |
| Bolt Length (mm) | 104.65 |
| Compression Height (mm) | 80.0 |
| Cylinder Bore (mm) | 126 |
| Length (mm) | 123.0 |
| Machined with cut-out for oil jet | |
| Recess Depth 1 (mm) | 19.5 |
| Recess Diameter (mm) | 78.57 |
| Supplementary Article/Info 2 with piston ring carrier | |
| Supplementary Article/Info 2 without cooling duct | |
| Surface Coated | |
| Valve Pocket Depth 1 (mm) | 0.6 |
| Valve Pocket Depth 2 (mm) | 0.6 |
Bolt Head Diameter [mm] 50,0, Bolt Length [mm] 104,65, Compression Height [mm] 80,0, Cylinder Bore [mm] 126, Length [mm] 123,0, Machined with cut-out for oil jet, Recess Depth 1 [mm] 19,5, Recess Diameter [mm] 78,57, Supplementary Article/Info 2 with piston ring carrier, Supplementary Article/Info 2 without cooling duct, Surface Coated, Valve Pocket Depth 1 [mm] 0,6, Valve Pocket Depth 2 [mm] 0,6
