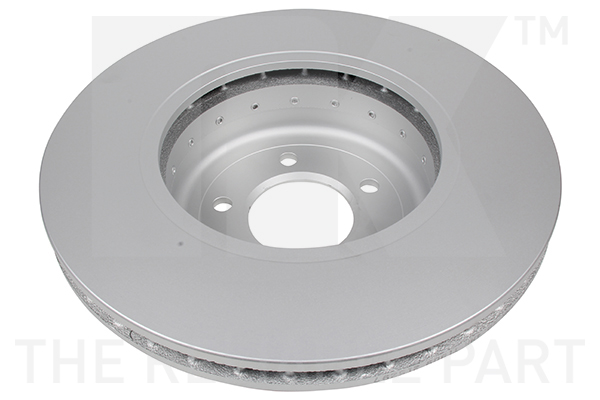

Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. 3415103 · SKU 3415103-NK
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

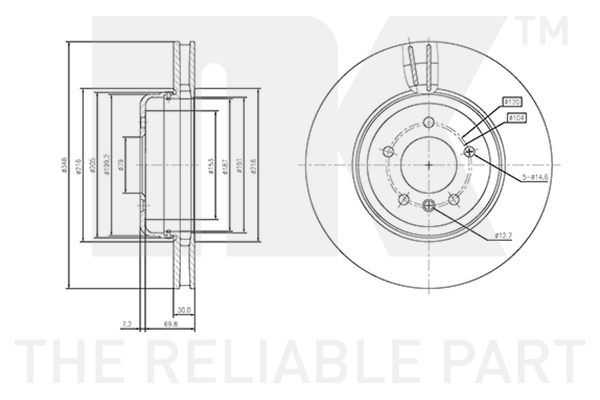

Specifications

Brake Disc Thickness (mm)30
Brake Disc Type two-part brake disc
Brake Disc Type Vented
Centering Diameter (mm)78.7
Height (mm)77.2
Machining High-carbon
Minimum thickness (mm)28.4
Net weight (kg)10.25
Outer Diameter (mm)348
Rim Hole Number 5
Surface Coated
Brake Disc Thickness [mm] 30, Brake Disc Type two-part brake disc, Brake Disc Type Vented, Centering Diameter [mm] 78,7, Height [mm] 77,2, Machining High-carbon, Minimum thickness [mm] 28,4, Net weight [kg] 10,25, Outer Diameter [mm] 348, Rim Hole Number 5, Surface Coated
Fits: BMW

Interchangeable Part Numbers

APECDSK2622 ATE24.0130-0186.2 BOSCH0 986 479 584 BREMBO09.C419.13 EUROBRAKE58153415103 EUROBRAKE58153415119 FERODODDF1701-1 FTEBS7226HB LPRB2099VBR MINTEXMDC2380 NK3415103 NK3415119 PAGID54418 TEXTAR92141800 TEXTAR92141805 TEXTAR92310205 TRISCAN812011176C WINHERE BRAKEYH21566 ZIMMERMANN150.3434.20

OE Numbers — BMW

34 11 6 763 824
MakeModelType / Engine YearsCCkWHP
BMW 5 (E60) 525 i 2001 – 2010 2996 155 211
BMW 5 (E60) 528 i 2001 – 2010 2996 172 234
BMW 5 (E60) 530 i 2001 – 2010 2979 168 228
BMW 5 (E60) 528 i xDrive 2001 – 2010 2996 172 234
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 520 d 2001 – 2010 1995 125 170
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 525 i 2001 – 2010 2494 137 186
BMW 5 (E60) 530 i 2001 – 2010 2996 168 228
BMW 5 (E60) 520 i 2001 – 2010 2171 125 170
BMW 5 (E60) 530 i 2001 – 2010 2979 170 231
BMW 5 (E60) 530 d 2001 – 2010 2993 160 218
BMW 5 (E60) 525 i 2001 – 2010 2494 141 192
BMW 5 (E60) 545 i 2001 – 2010 4398 245 333
BMW 5 (E60) 525 d 2001 – 2010 2497 130 177
BMW 5 (E60) M5 2001 – 2010 4999 373 507
BMW 5 (E60) 535 d 2001 – 2010 2993 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 190 258
BMW 5 (E60) 523 i 2001 – 2010 2497 130 177
BMW 5 (E60) 525 i 2001 – 2010 2497 160 218
BMW 5 (E60) 540 i 2001 – 2010 4000 225 306
BMW 5 (E60) 550 i 2001 – 2010 4799 270 367
BMW 5 (E60) 520 d 2001 – 2010 1995 120 163
BMW 5 (E60) 530 d 2001 – 2010 2993 170 231
BMW 5 (E60) 525 xi 2001 – 2010 2497 160 218
BMW 5 (E60) 530 xi 2001 – 2010 2996 190 258
BMW 5 (E60) 530 xd 2001 – 2010 2993 170 231
BMW 5 (E60) 525 d 2001 – 2010 2497 120 163
BMW 5 (E60) 520 d 2001 – 2010 1995 110 150
BMW 5 (E60) 535 d 2001 – 2010 2993 210 286
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 525 xi 2001 – 2010 2996 160 218
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 525 d 2001 – 2010 2993 145 197
BMW 5 (E60) 530 d 2001 – 2010 2993 173 235
BMW 5 (E60) 530 xd 2001 – 2010 2993 173 235
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 187 254
BMW 5 (E60) 535 i 2001 – 2010 2979 225 306
BMW 5 (E60) 525 xd 2001 – 2010 2993 145 197
BMW 5 (E60) 520 d 2001 – 2010 1995 130 177
BMW 5 (E60) 520 i 2001 – 2010 1995 125 170
BMW 5 (E60) 520 i 2001 – 2010 1995 120 163
BMW 5 (E60) 525 i xDrive 2001 – 2010 2996 160 218
BMW 5 (E60) 530 i xDrive 2001 – 2010 2996 200 272
BMW 5 (E60) 525 d xDrive 2001 – 2010 2993 145 197
BMW 5 (E60) 530 d xDrive 2001 – 2010 2993 173 235
BMW 5 (E60) 545 i 2001 – 2010 4398 242 329
BMW 5 (E60) 550 i 2001 – 2010 4799 261 355
BMW 5 (E60) 535 i xDrive 2001 – 2010 2979 224 305
BMW 5 (E60) 530 d 2001 – 2010 2993 155 211
BMW 5 (E60) 520 i 2001 – 2010 1995 115 156
BMW 5 (E60) 540 i 2001 – 2010 4000 220 299
BMW 5 (E60) 535 i 2001 – 2010 2979 224 305
BMW 5 (E60) 535 xi 2001 – 2010 2979 225 306
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 525 i 2001 – 2010 2497 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2494 141 192
BMW 5 Touring (E61) 545 i 2004 – 2010 4398 245 333
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 160 218
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 200 272
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 550 i 2004 – 2010 4799 270 367
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 525 xi 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 120 163
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 110 150
BMW 5 Touring (E61) 525 d 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 525 xi 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 210 286
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) M5 2004 – 2010 4999 373 507
BMW 5 Touring (E61) 525 xd 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 130 177
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 125 170
BMW 5 Touring (E61) 525 i xDrive 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 530 i xDrive 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 d xDrive 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d xDrive 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 535 xi 2004 – 2010 2979 224 305
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 155 211
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 155 211
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 6 (E63) 630 Ci 2003 – 2010 2979 190 258
BMW 6 (E63) 645 Ci 2003 – 2010 4398 245 333
BMW 6 (E63) 630 i 2003 – 2010 2996 190 258
BMW 6 (E63) 650 i 2003 – 2010 4799 270 367
BMW 6 (E63) M 2003 – 2010 4999 373 507
BMW 6 (E63) 630 i 2003 – 2010 2996 200 272
BMW 6 (E63) 635 d 2003 – 2010 2993 210 286
BMW 6 (E63) 645 Ci 2003 – 2010 4398 242 329
BMW 6 (E63) 630 i 2003 – 2010 2996 200 272
BMW 6 Convertible (E64) 645 Ci 2004 – 2010 4398 245 333
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 190 258
BMW 6 Convertible (E64) 650 i 2004 – 2010 4799 270 367
BMW 6 Convertible (E64) M6 2004 – 2010 4999 373 507
BMW 6 Convertible (E64) 635 d 2004 – 2010 2993 210 286
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 200 272
BMW 6 Convertible (E64) 645 Ci 2004 – 2010 4398 242 329
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 200 272
