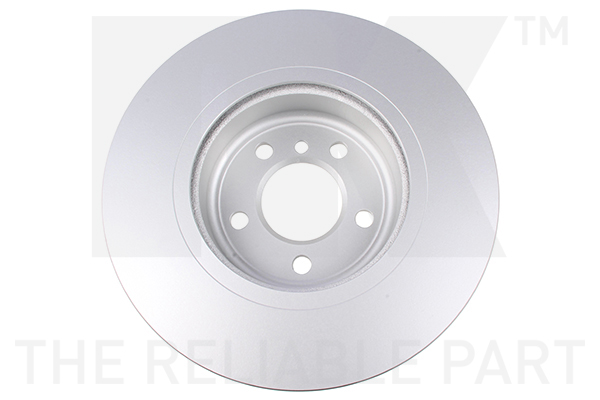

Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

Brake Disc

Part No. 3415115 · SKU 3415115-NK
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake Disc Thickness (mm)24
Brake Disc Type Vented
Centering Diameter (mm)75
Height (mm)66.2
Machining High-carbon
Minimum thickness (mm)22.4
Multi-piece one-piece
Net weight (kg)9.56
Outer Diameter (mm)330
Rim Hole Number 5
Surface Coated
Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 66,2, Machining High-carbon, Minimum thickness [mm] 22,4, Multi-piece one-piece, Net weight [kg] 9,56, Outer Diameter [mm] 330, Rim Hole Number 5, Surface Coated
Fits: BMW

Interchangeable Part Numbers

A.B.S.09.C410.13 A.B.S.18260 A.B.S.18656 APECDSK3063 APECDSK3063B APECSDK6781 ASHIKA60-00-0130C ASHIKA60-00-0133C ASHIKA60-00-0133 ASHUKI by PalidiumP330-239 ATE24.0124-0239.2 BENDIX521777 BLUE PRINTADB114365 BORG & BECKBBD6039S BOSCH 0 986 479E07 BOSCH0986479E07 BOSCH 0 986 AB5960 BOSCH0986AB5960 Brake ENGINEERINGDI956894 CAR142.1592 CAR242.1592 CAR HPD1592 CARHPD1592 CIFAM800-1253C COMLINEADC1781V COMLINEAND6221 DELPHIBG9129BC DELPHIBG9129C EUROBRAKE58153415115 EUROBRAKE5815341592 EUROREPAR1636912680 EUROREPAR1642755380 EUROREPAR1667849180 EUROREPAR1667863880 FEBI BILSTEIN104803 FERODODDF2039C FERODODDF2039C-1-D FERODODDF2039DSL-1-D FERODODDF2039DSR-1-D FREMAXBD-3555 FTE9081207 FTEBS7844HB GIRLING6066165 HELLA 8DD 355120-661 HELLA8DD355120661 HELLA 8DD 355133-711 HELLA8DD355133711 ICER78BD3555-2 JAPANPARTSDI-0130C JP GROUP1463103700 JURATEKBMW189 JURID562889JC JURID562889JC-1 KAMOKA103251 KAWE 6154810 KAWE6154810 LPRB2073V LPRB2073VBR MAGNETI MARELLI360406131404 MANDOMBC035368 MAPCO45760 MAPCO45760C METELLI23-1253C MEYLE 383 5211004/PD MEYLE3835211004PD MINTEXMDC83111C MOTAQUIPLVBD1677 NAPAPBD8342 NationalNBD1825 NK3415115 NK341592 OPEN PARTSBDR2749.20 OPTIMALBS-9346HC OPTIMALBS-9346 PAGID65129 PILENGAV476.B1 QUINTON HAZELLBDC6005 R BRAKE78RBD23555 RAICAMRD01519 sbs18153415115 sbs1815341592 STELLOX6020-1991-SX STELLOX6020-1991K-SX SWAG 20 104803 SWAG20104803 TEXTAR92265825 TEXTAR92313205 TOPRAN 502005 TOPRAN502005 TRISCAN 8120111013C TRISCAN8120111013C TRISCAN8120111013 TRUSTINGDF1635 TRWDF6616S TRWDF8027 VAICOV20-80087 VALEO207006 WINHERE BRAKEWH21726 WINHERE BRAKEYH21726 ZIMMERMANN150.3482.20 ZIMMERMANN150.3482.32 ZIMMERMANN150.3482.52 ZIMMERMANN150.3482.53

OE Numbers — BMW 34 11 6 794

429

OE Numbers — BMW

34116794429 34116896652

OE Numbers — BMW 34 11 6 896

652
MakeModelType / Engine YearsCCkWHP
BMW 5 (F10) 520 d 2009 – 2016 1995 151 205
BMW 5 (F10) 520 d xDrive 2009 – 2016 1995 151 205
BMW 5 (F10) 525 d xDrive 2009 – 2016 1995 155 211
BMW 5 (F10) 525 d 2009 – 2016 1995 155 211
BMW 5 (F10) 520 i 2009 – 2016 1997 120 163
BMW 5 (F10) M 550 d xDrive 2009 – 2016 2993 280 381
BMW 5 (F10) 535 i xDrive 2009 – 2016 2979 225 306
BMW 5 (F10) 520 i 2009 – 2016 1997 135 184
BMW 5 (F10) 528 i 2009 – 2016 1997 180 245
BMW 5 (F10) 528 i xDrive 2009 – 2016 1997 180 245
BMW 5 (F10) 530 i 2009 – 2016 2996 200 272
BMW 5 (F10) 525 d 2009 – 2016 1995 160 218
BMW 5 (F10) 525 d xDrive 2009 – 2016 1995 160 218
BMW 5 (F10) 530 d 2009 – 2016 2993 190 258
BMW 5 (F10) 530 d xDrive 2009 – 2016 2993 190 258
BMW 5 (F10) 535 d 2009 – 2016 2993 230 313
BMW 5 (F10) 535 d xDrive 2009 – 2016 2993 230 313
BMW 5 (F10) ActiveHybrid 2009 – 2016 2979 250 340
BMW 5 (F10) M5 2009 – 2016 4395 412 560
BMW 5 (F10) 523 i 2009 – 2016 2497 150 204
BMW 5 (F10) 523 i 2009 – 2016 2996 150 204
BMW 5 (F10) 528 i 2009 – 2016 2996 190 258
BMW 5 (F10) 535 i 2009 – 2016 2979 225 306
BMW 5 (F10) 550 i 2009 – 2016 4395 300 408
BMW 5 (F10) 520 d 2009 – 2016 1995 135 184
BMW 5 (F10) 525 d 2009 – 2016 2993 150 204
BMW 5 (F10) 530 d 2009 – 2016 2993 180 245
BMW 5 (F10) 550 i xDrive 2009 – 2016 4395 300 408
BMW 5 (F10) 535 d 2009 – 2016 2993 220 299
BMW 5 (F10) 528 i 2009 – 2016 2996 179 243
BMW 5 (F10) 535 i 2009 – 2016 2979 224 305
BMW 5 (F10) 550 i 2009 – 2016 4395 298 405
BMW 5 (F10) 550 i xDrive 2009 – 2016 4395 298 405
BMW 5 (F10) 550 i 2009 – 2016 4395 330 449
BMW 5 (F10) 550 i xDrive 2009 – 2016 4395 330 449
BMW 5 (F10) 520 d xDrive 2009 – 2016 1995 135 184
BMW 5 (F10) 518 d 2009 – 2016 1995 105 143
BMW 5 (F10) M5 Competition 2009 – 2016 4395 423 575
BMW 5 (F10) 518 d 2009 – 2016 1995 110 150
BMW 5 (F10) 520 d 2009 – 2016 1995 140 190
BMW 5 (F10) 520 d xDrive 2009 – 2016 1995 140 190
BMW 5 (F10) M5 30th Anniversary 2009 – 2016 4395 441 600
BMW 5 (F10) 550 i 2009 – 2016 4395 332 452
BMW 5 (F10) 550 i xDrive 2009 – 2016 4395 332 452
BMW 5 (F10) 535 i 2009 – 2016 2979 240 326
BMW 5 (F10) 535 i xDrive 2009 – 2016 2979 240 326
BMW 5 (F10) 520 d 2009 – 2016 1995 120 163
BMW 5 (F10) 518 d 2009 – 2016 1995 100 136
BMW 5 (F10) 520 d xDrive 2009 – 2016 1995 120 163
BMW 5 (F10) 530 d 2009 – 2016 2993 210 286
BMW 5 (F10) 530 d xDrive 2009 – 2016 2993 210 286
BMW 5 (F10) 520 i 2009 – 2016 1592 125 170
BMW 5 (F10) 520 d 2009 – 2016 1995 147 200
BMW 5 (F10) 520 d xDrive 2009 – 2016 1995 147 200
BMW 5 (F10) 520 d 2009 – 2016 1995 100 136
BMW 5 (F10) 520 d xDrive 2009 – 2016 1995 100 136
BMW 5 (F10) 520 d 2009 – 2016 1995 155 211
BMW 5 (F10) 520 d xDrive 2009 – 2016 1995 155 211
BMW 5 (F10) M5 2009 – 2016 4395 418 568
BMW 5 (F10) 523 i 2009 – 2016 2996 155 211
BMW 5 (F10) 530 i 2009 – 2016 2996 190 258
BMW 5 (F10) 518 d 2009 – 2016 1995 120 163
BMW 5 (F10) 528 i 2009 – 2016 1997 160 218
BMW 5 Touring (F11) M 550 d xDrive 2009 – 2017 2993 280 381
BMW 5 Touring (F11) 520 i 2009 – 2017 1997 135 184
BMW 5 Touring (F11) 528 i 2009 – 2017 1997 180 245
BMW 5 Touring (F11) 528 i xDrive 2009 – 2017 1997 180 245
BMW 5 Touring (F11) 530 i 2009 – 2017 2996 200 272
BMW 5 Touring (F11) 550 i 2009 – 2017 4395 300 408
BMW 5 Touring (F11) 525 d 2009 – 2017 1995 160 218
BMW 5 Touring (F11) 525 d xDrive 2009 – 2017 1995 160 218
BMW 5 Touring (F11) 530 d 2009 – 2017 2993 190 258
BMW 5 Touring (F11) 530 d xDrive 2009 – 2017 2993 190 258
BMW 5 Touring (F11) 535 d 2009 – 2017 2993 230 313
BMW 5 Touring (F11) 535 d xDrive 2009 – 2017 2993 230 313
BMW 5 Touring (F11) 535 i xDrive 2009 – 2017 2979 225 306
BMW 5 Touring (F11) 523 i 2009 – 2017 2996 150 204
BMW 5 Touring (F11) 528 i 2009 – 2017 2996 190 258
BMW 5 Touring (F11) 535 i 2009 – 2017 2979 225 306
BMW 5 Touring (F11) 520 d 2009 – 2017 1995 135 184
BMW 5 Touring (F11) 525 d 2009 – 2017 2993 150 204
BMW 5 Touring (F11) 530 d 2009 – 2017 2993 180 245
BMW 5 Touring (F11) 535 d 2009 – 2017 2993 220 299
BMW 5 Touring (F11) 523 i 2009 – 2017 2497 150 204
BMW 5 Touring (F11) 550 i 2009 – 2017 4395 330 449
BMW 5 Touring (F11) 520 d xDrive 2009 – 2017 1995 135 184
BMW 5 Touring (F11) 518 d 2009 – 2017 1995 105 143
BMW 5 Touring (F11) 518 d 2009 – 2017 1995 110 150
BMW 5 Touring (F11) 520 d 2009 – 2017 1995 140 190
BMW 5 Touring (F11) 520 d xDrive 2009 – 2017 1995 140 190
BMW 5 Touring (F11) 520 i 2009 – 2017 1997 120 163
BMW 5 Touring (F11) 520 d 2009 – 2017 1995 120 163
BMW 5 Touring (F11) 518 d 2009 – 2017 1995 100 136
BMW 5 Touring (F11) 520 d xDrive 2009 – 2017 1995 120 163
BMW 5 Touring (F11) 525 d 2009 – 2017 1995 155 211
BMW 5 Touring (F11) 525 d xDrive 2009 – 2017 1995 155 211
BMW 5 Touring (F11) 535 i 2009 – 2017 2979 240 326
BMW 5 Touring (F11) 535 i xDrive 2009 – 2017 2979 240 326
BMW 5 Touring (F11) 530 d 2009 – 2017 2993 210 286
BMW 5 Touring (F11) 530 d xDrive 2009 – 2017 2993 210 286
BMW 5 Touring (F11) 520 d 2009 – 2017 1995 155 211
BMW 5 Touring (F11) 520 d xDrive 2009 – 2017 1995 155 211
BMW 5 Touring (F11) 520 d 2009 – 2017 1995 147 200
BMW 5 Touring (F11) 520 d xDrive 2009 – 2017 1995 147 200
BMW 5 Touring (F11) 520 d xDrive 2009 – 2017 1995 100 136
BMW 5 Touring (F11) 520 d 2009 – 2017 1995 100 136
BMW 5 Touring (F11) 518 d 2009 – 2017 1995 120 163
BMW 5 Touring (F11) 530 i 2009 – 2017 2996 190 258
BMW 5 Touring (F11) 520 d 2009 – 2017 1995 151 205
BMW 5 Touring (F11) 520 d xDrive 2009 – 2017 1995 151 205
