Brake Disc

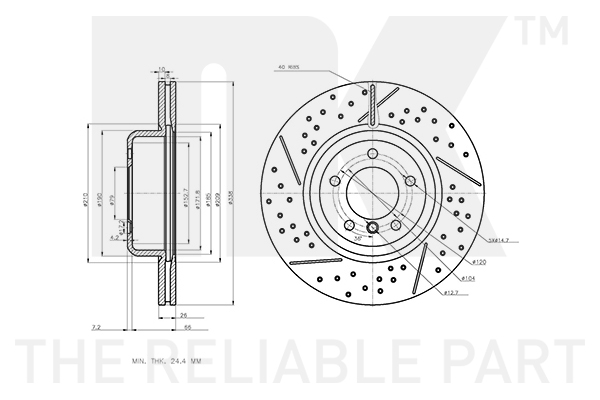

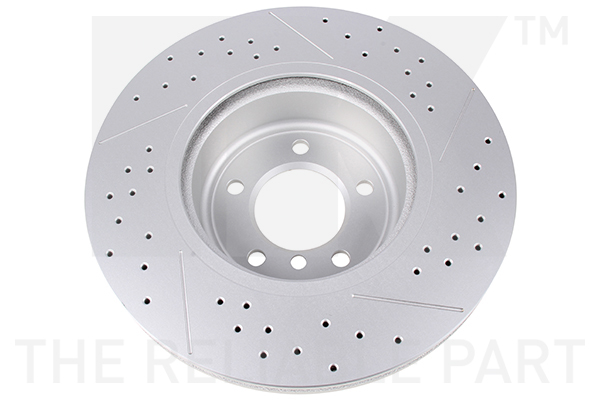

Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. 3415121 · SKU 3415121-NK
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake Disc Thickness (mm)26
Brake Disc Type Vented
Centering Diameter (mm)79
Height (mm)73.2
Machining High-carbon
Minimum thickness (mm)24.4
Multi-piece one-piece
Net weight (kg)11.8
Outer Diameter (mm)338
Rim Hole Number 5
Surface Coated
Brake Disc Thickness [mm] 26, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 73,2, Machining High-carbon, Minimum thickness [mm] 24,4, Multi-piece one-piece, Net weight [kg] 11,8, Outer Diameter [mm] 338, Rim Hole Number 5, Surface Coated
Fits: BMW

Interchangeable Part Numbers

A.B.S.09.C420.13 A.B.S.18593 APECDSK2848 ASHIKA60-00-0144 ATE24.0126-0152.2 BENDIX521788 BLUE PRINTADB114374 BOSCH0 986 479 E09 CAR242.1935 COMLINEADC2816V COMLINEAND6993 DELPHIBG9235C EUROBRAKE58153415121 FEBI BILSTEIN105729 FERODODDF2618VC-1 HELLA8DD 355 123-041 HELLA8DD 355 133-581 JAPANPARTSDI-0144 JP GROUP1463107000 JURATEKBMW171 JURID563203JVC-1 KAWE61544 10 NationalNBD2036 NK3415121 OPTIMALBS-9338HC OPTIMALBS-9338 PAGID65156 REMYRAD1182C SWAG20 10 5729 TEXTAR92266925 TEXTAR92310805 TRISCAN8120 11191C VAICOV20-80099 WINHERE BRAKEYH21592 ZIMMERMANN150.2935.20 ZIMMERMANN150.2935.32

OE Numbers — BMW

34 11 6 778 647 34 11 6 786 392
MakeModelType / Engine YearsCCkWHP
BMW 1 (E81) 118 i 2006 – 2012 1995 95 129
BMW 1 (E81) 120 d 2006 – 2012 1995 145 197
BMW 1 (E81) 116 i 2006 – 2012 1596 85 115
BMW 1 (E81) 120 d 2006 – 2012 1995 120 163
BMW 1 (E81) 130 i 2006 – 2012 2996 195 265
BMW 1 (E81) 118 i 2006 – 2012 1995 105 143
BMW 1 (E81) 120 i 2006 – 2012 1995 125 170
BMW 1 (E81) 118 d 2006 – 2012 1995 105 143
BMW 1 (E81) 120 d 2006 – 2012 1995 130 177
BMW 1 (E81) 123 d 2006 – 2012 1995 150 204
BMW 1 (E81) 116 i 2006 – 2012 1599 90 122
BMW 1 (E81) 120 i 2006 – 2012 1995 115 156
BMW 1 (E81) 116 i 2006 – 2012 1995 90 122
BMW 1 (E81) 116 d 2006 – 2012 1995 85 116
BMW 1 (E81) 130 i 2006 – 2012 2996 190 258
BMW 1 (E81) 118 d 2006 – 2012 1995 100 136
BMW 1 (E81) 120 i 2006 – 2012 1995 120 163
BMW 1 (E81) 118 i 2006 – 2012 1995 100 136
BMW 1 (E81) 116 d 2006 – 2012 1995 66 90
BMW 1 (E87) 116 i 2003 – 2013 1596 85 115
BMW 1 (E87) 116 i 2003 – 2013 1599 90 122
BMW 1 (E87) 116 i 2003 – 2013 1995 90 122
BMW 1 (E87) 118 i 2003 – 2013 1995 95 129
BMW 1 (E87) 118 i 2003 – 2013 1995 100 136
BMW 1 (E87) 118 i 2003 – 2013 1995 105 143
BMW 1 (E87) 120 i 2003 – 2013 1995 110 150
BMW 1 (E87) 120 i 2003 – 2013 1995 115 156
BMW 1 (E87) 120 i 2003 – 2013 1995 120 163
BMW 1 (E87) 120 i 2003 – 2013 1995 125 170
BMW 1 (E87) 130 i 2003 – 2013 2996 190 258
BMW 1 (E87) 130 i 2003 – 2013 2996 195 265
BMW 1 (E87) 116 d 2003 – 2013 1995 85 116
BMW 1 (E87) 118 d 2003 – 2013 1995 90 122
BMW 1 (E87) 118 d 2003 – 2013 1995 100 136
BMW 1 (E87) 118 d 2003 – 2013 1995 105 143
BMW 1 (E87) 120 d 2003 – 2013 1995 120 163
BMW 1 (E87) 120 d 2003 – 2013 1995 130 177
BMW 1 (E87) 123 d 2003 – 2013 1995 150 204
BMW 1 (E87) 116 d 2003 – 2013 1995 66 90
BMW 1 (E87) 118 i 2003 – 2013 1995 125 170
BMW 1 (E87) 120 d 2003 – 2013 1995 125 170
BMW 1 (E87) 120 d 2003 – 2013 1995 115 156
BMW 1 (E87) 120 d 2003 – 2013 1995 110 150
BMW 1 Convertible (E88) 118 d 2007 – 2013 1995 105 143
BMW 1 Convertible (E88) 123 d 2007 – 2013 1995 150 204
BMW 1 Convertible (E88) 120 i 2007 – 2013 1995 120 163
BMW 1 Convertible (E88) 120 d 2007 – 2013 1995 120 163
BMW 1 Convertible (E88) 118 d 2007 – 2013 1995 100 136
BMW 1 Convertible (E88) 128 i 2007 – 2013 2996 172 234
BMW 1 Convertible (E88) 120 i 2007 – 2013 1995 115 156
BMW 1 Convertible (E88) 135 i 2007 – 2013 2979 240 326
BMW 1 Convertible (E88) 120 d 2007 – 2013 1995 145 197
BMW 1 Convertible (E88) 118 i 2007 – 2013 1995 100 136
BMW 1 Convertible (E88) 120 i 2007 – 2013 1995 125 170
BMW 1 Convertible (E88) 125 i 2007 – 2013 2996 160 218
BMW 1 Convertible (E88) 118 i 2007 – 2013 1995 105 143
BMW 1 Convertible (E88) 135 i 2007 – 2013 2979 225 306
BMW 1 Convertible (E88) 120 d 2007 – 2013 1995 130 177
BMW 1 Coupe (E82) M 2006 – 2013 2979 250 340
BMW 1 Coupe (E82) 118 d 2006 – 2013 1995 100 136
BMW 1 Coupe (E82) 135 i 2006 – 2013 2979 225 306
BMW 1 Coupe (E82) 120 d 2006 – 2013 1995 130 177
BMW 1 Coupe (E82) 123 d 2006 – 2013 1995 150 204
BMW 1 Coupe (E82) 125 i 2006 – 2013 2996 160 218
BMW 1 Coupe (E82) 135 i 2006 – 2013 2979 240 326
BMW 1 Coupe (E82) 120 d 2006 – 2013 1995 145 197
BMW 1 Coupe (E82) 120 d 2006 – 2013 1995 120 163
BMW 1 Coupe (E82) 120 i 2006 – 2013 1995 125 170
BMW 1 Coupe (E82) 118 d 2006 – 2013 1995 105 143
BMW 1 Coupe (E82) 128 i 2006 – 2013 2996 172 234
BMW 1 Coupe (E82) 120 i 2006 – 2013 1995 115 156
BMW 3 (E90) 316 i 2004 – 2012 1596 85 115
BMW 3 (E90) 323 i 2004 – 2012 2497 130 177
BMW 3 (E90) 335 i 2004 – 2012 2979 224 305
BMW 3 (E90) 335 i 2004 – 2012 2979 220 299
BMW 3 (E90) 330 d 2004 – 2012 2993 180 245
BMW 3 (E90) 330 d xDrive 2004 – 2012 2993 180 245
BMW 3 (E90) 316 i 2004 – 2012 1599 90 122
BMW 3 (E90) 325 i xDrive 2004 – 2012 2996 160 218
BMW 3 (E90) 330 i xDrive 2004 – 2012 2996 200 272
BMW 3 (E90) 335 i xDrive 2004 – 2012 2979 225 306
BMW 3 (E90) 320 d xDrive 2004 – 2012 1995 130 177
BMW 3 (E90) 316 d 2004 – 2012 1995 85 116
BMW 3 (E90) 320 d 2004 – 2012 1995 135 184
BMW 3 (E90) 320 d xDrive 2004 – 2012 1995 135 184
BMW 3 (E90) 325 d 2004 – 2012 2993 150 204
BMW 3 (E90) 320 i 2004 – 2012 1995 115 156
BMW 3 (E90) 335 d 2004 – 2012 2993 198 269
BMW 3 (E90) 325 i 2004 – 2012 2497 155 211
BMW 3 (E90) 323 i 2004 – 2012 2497 140 190
BMW 3 (E90) 325 i 2004 – 2012 2497 163 222
BMW 3 (E90) 318 i 2004 – 2012 1995 100 136
BMW 3 (E90) 328 i 2004 – 2012 2996 172 234
BMW 3 (E90) 318 d 2004 – 2012 1995 100 136
BMW 3 (E90) 320 d xDrive 2004 – 2012 1995 120 163
BMW 3 (E90) 320 i 2004 – 2012 1995 110 150
BMW 3 (E90) 325 i 2004 – 2012 2497 160 218
BMW 3 (E90) 330 i 2004 – 2012 2996 190 258
BMW 3 (E90) 320 d 2004 – 2012 1995 120 163
BMW 3 (E90) 318 i 2004 – 2012 1995 95 129
BMW 3 (E90) 318 d 2004 – 2012 1995 90 122
BMW 3 (E90) 330 d 2004 – 2012 2993 170 231
BMW 3 (E90) 325 xi 2004 – 2012 2497 160 218
BMW 3 (E90) 330 xi 2004 – 2012 2996 190 258
BMW 3 (E90) 330 xd 2004 – 2012 2993 170 231
BMW 3 (E90) 320 si 2004 – 2012 1997 127 173
BMW 3 (E90) 335 i 2004 – 2012 2979 225 306
BMW 3 (E90) 335 d 2004 – 2012 2993 210 286
BMW 3 (E90) 320 d 2004 – 2012 1995 110 150
BMW 3 (E90) 325 d 2004 – 2012 2993 145 197
BMW 3 (E90) 318 i 2004 – 2012 1995 105 143
BMW 3 (E90) 318 d 2004 – 2012 1995 105 143
BMW 3 (E90) 335 xi 2004 – 2012 2979 225 306
BMW 3 (E90) 325 i 2004 – 2012 2996 160 218
BMW 3 (E90) 325 xi 2004 – 2012 2996 160 218
BMW 3 (E90) 320 i 2004 – 2012 1995 125 170
BMW 3 (E90) 320 d 2004 – 2012 1995 130 177
BMW 3 (E90) 330 i 2004 – 2012 2996 200 272
BMW 3 (E90) 330 xi 2004 – 2012 2996 200 272
BMW 3 (E90) M3 2004 – 2012 3999 309 420
BMW 3 (E90) 330 i 2004 – 2012 2996 200 272
BMW 3 (E90) 335 i xDrive 2004 – 2012 2979 240 326
BMW 3 (E90) 335 xi 2004 – 2012 2979 240 326
BMW 3 (E90) 320 i 2004 – 2012 1995 120 163
BMW 3 (E90) 335 i 2004 – 2012 2979 240 326
BMW 3 (E90) 328 xi 2004 – 2012 2996 172 234
BMW 3 (E90) 325 i xDrive 2004 – 2012 2996 155 211
BMW 3 (E90) 330 d 2004 – 2012 2993 155 211
BMW 3 (E90) M3 CRT 2004 – 2012 4361 331 450
BMW 3 (E90) 325 i 2004 – 2012 2996 155 211
BMW 3 (E90) 320 d 2004 – 2012 1995 125 170
BMW 3 (E90) 325 xi 2004 – 2012 2996 160 218
BMW 3 (E90) 335 i xDrive 2004 – 2012 2979 224 305
BMW 3 (E90) 335 xi 2004 – 2012 2979 224 305
BMW 3 (E90) 328 i xDrive 2004 – 2012 2996 172 234
BMW 3 (E90) 320 d 2004 – 2012 1995 115 156
BMW 3 Convertible (E93) 325 i 2006 – 2013 2497 150 204
BMW 3 Convertible (E93) 320 d 2006 – 2013 1995 120 163
BMW 3 Convertible (E93) 335 i 2006 – 2013 2979 224 305
BMW 3 Convertible (E93) 320 d 2006 – 2013 1995 145 197
BMW 3 Convertible (E93) 320 d 2006 – 2013 1995 147 200
BMW 3 Convertible (E93) 335 i 2006 – 2013 2979 240 326
BMW 3 Convertible (E93) 323 i 2006 – 2013 2497 140 190
BMW 3 Convertible (E93) 330 i 2006 – 2013 2996 200 272
BMW 3 Convertible (E93) 328 i 2006 – 2013 2996 172 234
BMW 3 Convertible (E93) 330 d 2006 – 2013 2993 180 245
BMW 3 Convertible (E93) 320 d 2006 – 2013 1995 135 184
BMW 3 Convertible (E93) 325 i 2006 – 2013 2996 155 211
BMW 3 Convertible (E93) 325 d 2006 – 2013 2993 155 211
BMW 3 Convertible (E93) 320 i 2006 – 2013 1995 115 156
BMW 3 Convertible (E93) 320 i 2006 – 2013 1995 120 163
BMW 3 Convertible (E93) 318 i 2006 – 2013 1995 105 143
BMW 3 Convertible (E93) 325 d 2006 – 2013 2993 150 204
BMW 3 Convertible (E93) 320 i 2006 – 2013 1995 125 170
BMW 3 Convertible (E93) 325 i 2006 – 2013 2996 160 218
BMW 3 Convertible (E93) 330 i 2006 – 2013 2996 200 272
BMW 3 Convertible (E93) 335 i 2006 – 2013 2979 225 306
BMW 3 Convertible (E93) 330 d 2006 – 2013 2993 170 231
BMW 3 Convertible (E93) 325 i 2006 – 2013 2497 160 218
BMW 3 Convertible (E93) 325 d 2006 – 2013 2993 145 197
BMW 3 Convertible (E93) 320 d 2006 – 2013 1995 130 177
BMW 3 Convertible (E93) 323 i 2006 – 2013 2497 130 177
BMW 3 Convertible (E93) 330 i 2006 – 2013 2996 190 258
BMW 3 Convertible (E93) M3 2006 – 2013 3999 309 420
BMW 3 Coupe (E92) 318 i 2005 – 2013 1995 105 143
BMW 3 Coupe (E92) 335 i 2005 – 2013 2979 225 306
BMW 3 Coupe (E92) 335 d 2005 – 2013 2993 210 286
BMW 3 Coupe (E92) 325 i 2005 – 2013 2497 160 218
BMW 3 Coupe (E92) 330 i 2005 – 2013 2996 200 272
BMW 3 Coupe (E92) 330 d 2005 – 2013 2993 170 231
BMW 3 Coupe (E92) 325 xi 2005 – 2013 2497 160 218
BMW 3 Coupe (E92) 330 xi 2005 – 2013 2996 200 272
BMW 3 Coupe (E92) 330 xd 2005 – 2013 2993 170 231
BMW 3 Coupe (E92) 330 i 2005 – 2013 2996 190 258
BMW 3 Coupe (E92) 330 xi 2005 – 2013 2996 190 258
BMW 3 Coupe (E92) 320 i 2005 – 2013 1995 125 170
BMW 3 Coupe (E92) 320 d 2005 – 2013 1995 130 177
BMW 3 Coupe (E92) 325 d 2005 – 2013 2993 145 197
BMW 3 Coupe (E92) M3 2005 – 2013 3999 309 420
BMW 3 Coupe (E92) 325 i 2005 – 2013 2996 160 218
BMW 3 Coupe (E92) 325 xi 2005 – 2013 2996 160 218
BMW 3 Coupe (E92) 335 xi 2005 – 2013 2979 225 306
BMW 3 Coupe (E92) 323 i 2005 – 2013 2497 130 177
BMW 3 Coupe (E92) 335 i 2005 – 2013 2979 224 305
BMW 3 Coupe (E92) 330 xi 2005 – 2013 2996 200 272
BMW 3 Coupe (E92) 325 i xDrive 2005 – 2013 2497 155 211
BMW 3 Coupe (E92) 320 d xDrive 2005 – 2013 1995 147 200
BMW 3 Coupe (E92) 325 xi 2005 – 2013 2996 155 211
BMW 3 Coupe (E92) 325 i xDrive 2005 – 2013 2996 155 211
BMW 3 Coupe (E92) 335 xi 2005 – 2013 2979 240 326
BMW 3 Coupe (E92) 335 i 2005 – 2013 2979 240 326
BMW 3 Coupe (E92) 320 i 2005 – 2013 1995 112 152
BMW 3 Coupe (E92) 330 i 2005 – 2013 2996 200 272
BMW 3 Coupe (E92) 325 i xDrive 2005 – 2013 2497 150 204
BMW 3 Coupe (E92) 325 i 2005 – 2013 2497 150 204
BMW 3 Coupe (E92) 328 i xDrive 2005 – 2013 2996 172 234
BMW 3 Coupe (E92) 320 d 2005 – 2013 1995 147 200
BMW 3 Coupe (E92) 320 d 2005 – 2013 1995 145 197
BMW 3 Coupe (E92) 320 d xDrive 2005 – 2013 1995 145 197
BMW 3 Coupe (E92) 320 d xDrive 2005 – 2013 1995 120 163
BMW 3 Coupe (E92) 323 i 2005 – 2013 2497 140 190
BMW 3 Coupe (E92) 335 i xDrive 2005 – 2013 2979 240 326
BMW 3 Coupe (E92) 330 d 2005 – 2013 2993 180 245
BMW 3 Coupe (E92) 330 xd 2005 – 2013 2993 180 245
BMW 3 Coupe (E92) 325 i xDrive 2005 – 2013 2996 160 218
BMW 3 Coupe (E92) 330 i xDrive 2005 – 2013 2996 200 272
BMW 3 Coupe (E92) 335 i xDrive 2005 – 2013 2979 225 306
BMW 3 Coupe (E92) 320 d xDrive 2005 – 2013 1995 130 177
BMW 3 Coupe (E92) 330 d xDrive 2005 – 2013 2993 180 245
BMW 3 Coupe (E92) 320 d xDrive 2005 – 2013 1995 135 184
BMW 3 Coupe (E92) 320 d 2005 – 2013 1995 135 184
BMW 3 Coupe (E92) 325 d 2005 – 2013 2993 150 204
BMW 3 Coupe (E92) 328 xi 2005 – 2013 2996 172 234
BMW 3 Coupe (E92) 320 i 2005 – 2013 1995 120 163
BMW 3 Coupe (E92) 325 i 2005 – 2013 2497 155 211
BMW 3 Coupe (E92) 325 d 2005 – 2013 2993 155 211
BMW 3 Coupe (E92) 325 i 2005 – 2013 2996 155 211
BMW 3 Coupe (E92) 320 d 2005 – 2013 1995 120 163
BMW 3 Coupe (E92) M3 GTS 2005 – 2013 4361 331 450
BMW 3 Coupe (E92) 316 i 2005 – 2013 1599 90 122
BMW 3 Coupe (E92) 320 i 2005 – 2013 1995 115 156
BMW 3 Coupe (E92) 328 i 2005 – 2013 2996 172 234
BMW 3 Touring (E91) 323 i 2004 – 2012 2497 130 177
BMW 3 Touring (E91) 330 d 2004 – 2012 2993 180 245
BMW 3 Touring (E91) 330 d xDrive 2004 – 2012 2993 180 245
BMW 3 Touring (E91) 316 i 2004 – 2012 1599 90 122
BMW 3 Touring (E91) 325 i xDrive 2004 – 2012 2996 160 218
BMW 3 Touring (E91) 330 i xDrive 2004 – 2012 2996 200 272
BMW 3 Touring (E91) 335 i xDrive 2004 – 2012 2979 225 306
BMW 3 Touring (E91) 320 d xDrive 2004 – 2012 1995 130 177
BMW 3 Touring (E91) 320 d 2004 – 2012 1995 135 184
BMW 3 Touring (E91) 320 d xDrive 2004 – 2012 1995 135 184
BMW 3 Touring (E91) 325 d 2004 – 2012 2993 150 204
BMW 3 Touring (E91) 320 d xDrive 2004 – 2012 1995 120 163
BMW 3 Touring (E91) 320 i 2004 – 2012 1995 115 156
BMW 3 Touring (E91) 328 i 2004 – 2012 2996 171 234
BMW 3 Touring (E91) 320 d 2004 – 2012 1995 145 197
BMW 3 Touring (E91) 318 i 2004 – 2012 1995 100 136
BMW 3 Touring (E91) 330 i 2004 – 2012 2996 200 272
BMW 3 Touring (E91) 328 xi 2004 – 2012 2996 171 234
BMW 3 Touring (E91) 328 i xDrive 2004 – 2012 2996 171 234
BMW 3 Touring (E91) 323 i 2004 – 2012 2497 140 190
BMW 3 Touring (E91) 325 i xDrive 2004 – 2012 2996 155 211
BMW 3 Touring (E91) 325 xi 2004 – 2012 2996 155 211
BMW 3 Touring (E91) 320 d 2004 – 2012 1995 147 200
BMW 3 Touring (E91) 330 d 2004 – 2012 2993 155 211
BMW 3 Touring (E91) 320 d xDrive 2004 – 2012 1995 147 200
BMW 3 Touring (E91) 335 i 2004 – 2012 2979 240 326
BMW 3 Touring (E91) 335 i xDrive 2004 – 2012 2979 240 326
BMW 3 Touring (E91) 320 d xDrive 2004 – 2012 1995 145 197
BMW 3 Touring (E91) 320 i 2004 – 2012 1995 120 163
BMW 3 Touring (E91) 335 xi 2004 – 2012 2979 240 326
BMW 3 Touring (E91) 325 i 2004 – 2012 2497 155 211
BMW 3 Touring (E91) 325 i 2004 – 2012 2996 155 211
BMW 3 Touring (E91) 318 d 2004 – 2012 1995 100 136
BMW 3 Touring (E91) 318 i 2004 – 2012 1995 100 136
BMW 3 Touring (E91) 316 d 2004 – 2012 1995 85 116
BMW 3 Touring (E91) 320 i 2004 – 2012 1995 110 150
BMW 3 Touring (E91) 325 i 2004 – 2012 2497 160 218
BMW 3 Touring (E91) 330 i 2004 – 2012 2996 190 258
BMW 3 Touring (E91) 320 d 2004 – 2012 1995 120 163
BMW 3 Touring (E91) 330 d 2004 – 2012 2993 170 231
BMW 3 Touring (E91) 325 xi 2004 – 2012 2497 160 218
BMW 3 Touring (E91) 330 xi 2004 – 2012 2996 190 258
BMW 3 Touring (E91) 330 xd 2004 – 2012 2993 170 231
BMW 3 Touring (E91) 318 d 2004 – 2012 1995 90 122
BMW 3 Touring (E91) 318 i 2004 – 2012 1995 95 129
BMW 3 Touring (E91) 335 i 2004 – 2012 2979 225 306
BMW 3 Touring (E91) 335 d 2004 – 2012 2993 210 286
BMW 3 Touring (E91) 320 d 2004 – 2012 1995 110 150
BMW 3 Touring (E91) 325 d 2004 – 2012 2993 145 197
BMW 3 Touring (E91) 318 i 2004 – 2012 1995 105 143
BMW 3 Touring (E91) 318 d 2004 – 2012 1995 105 143
BMW 3 Touring (E91) 320 i 2004 – 2012 1995 125 170
BMW 3 Touring (E91) 335 xi 2004 – 2012 2979 225 306
BMW 3 Touring (E91) 330 i 2004 – 2012 2996 200 272
BMW 3 Touring (E91) 330 xi 2004 – 2012 2996 200 272
BMW 3 Touring (E91) 325 i 2004 – 2012 2996 160 218
BMW 3 Touring (E91) 325 xi 2004 – 2012 2996 160 218
BMW 3 Touring (E91) 320 d 2004 – 2012 1995 130 177
Talk to Expert
