Brake Disc
Brake Disc 1 Brake Disc 2
Braking System

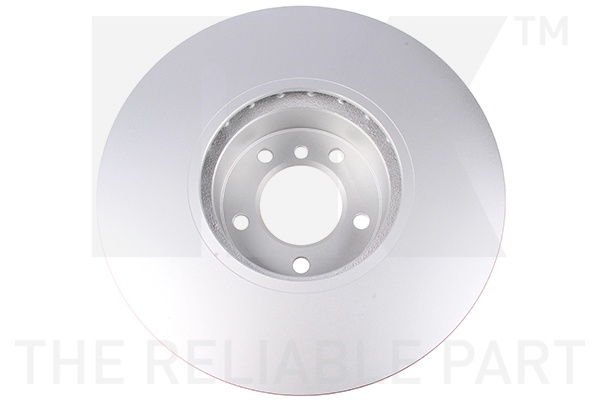

Brake Disc

Part No. 3415126 · SKU 3415126-NK
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake Disc Thickness (mm)36
Brake Disc Type Vented
Centering Diameter (mm)79
Height (mm)77.1
Machining High-carbon
Minimum thickness (mm)34.4
Multi-piece one-piece
Net weight (kg)14.44
Outer Diameter (mm)348
Rim Hole Number 5
Surface Coated
Brake Disc Thickness [mm] 36, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 77,1, Machining High-carbon, Minimum thickness [mm] 34,4, Multi-piece one-piece, Net weight [kg] 14,44, Outer Diameter [mm] 348, Rim Hole Number 5, Surface Coated
Fits: BMW

Interchangeable Part Numbers

A.B.S.09.C393.13 A.B.S.17599 A.B.S.18660 APECDSK2536 APECDSK2536B ASHIKA60-00-0157C ASHIKA60-00-0157 ATE24.0136-0106.2 BENDIX522073 BLUE PRINTADB114368 BORG & BECKBBD5938S BOSCH0 986 479 774 BOSCH0 986 479 E20 Brake ENGINEERINGDI956482S CAR142.1060 CAR242.1060 CAR HPD1060 CARHPD1060 COMLINEADC1747V COMLINEAND6357 DELPHIBG9321C EUROBRAKE58153415126 EUROBRAKE5815341572 FEBI BILSTEIN104806 FERODODDF1867 FERODODDF1867C FERODODDF1867C-1 FTEBS7295HB GIRLING6060035 HELLA8DD 355 120-791 HELLA8DD 355 133-521 JAPANPARTSDI-0157C JAPANPARTSDI-0157 JURID563045JC-1 KAWE62126 10 LPRB2036V LPRB2036VBR MAGNETI MARELLI360406130004 NationalNBD1943 NationalPBD1943 NK3415126 NK341572 OPTIMALBS-9316HC OPTIMALBS-9316 PAGID54824 PAGID65142 PILENGAV101.B1 QUINTON HAZELLBDC5806 sbs18153415126 sbs1815341572 SWAG20 10 4806 TEXTAR92182425 TEXTAR92310005 TRISCAN8120 111033C TRWDF6003S TRWDF6003SS VAICOV20-80010 WINHERE BRAKEYH22185 ZIMMERMANN150.3481.20 ZIMMERMANN150.3481.32 ZIMMERMANN150.3481.52

OE Numbers — BMW

34 11 6 766 871 34 11 6 779 467
MakeModelType / Engine YearsCCkWHP
BMW 5 (E60) 525 i 2001 – 2010 2996 155 211
BMW 5 (E60) 528 i 2001 – 2010 2996 172 234
BMW 5 (E60) 530 i 2001 – 2010 2979 168 228
BMW 5 (E60) 528 i xDrive 2001 – 2010 2996 172 234
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 520 d 2001 – 2010 1995 125 170
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 525 i 2001 – 2010 2494 137 186
BMW 5 (E60) 530 i 2001 – 2010 2996 168 228
BMW 5 (E60) 520 i 2001 – 2010 2171 125 170
BMW 5 (E60) 530 i 2001 – 2010 2979 170 231
BMW 5 (E60) 530 d 2001 – 2010 2993 160 218
BMW 5 (E60) 525 i 2001 – 2010 2494 141 192
BMW 5 (E60) 545 i 2001 – 2010 4398 245 333
BMW 5 (E60) 525 d 2001 – 2010 2497 130 177
BMW 5 (E60) M5 2001 – 2010 4999 373 507
BMW 5 (E60) 535 d 2001 – 2010 2993 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 190 258
BMW 5 (E60) 523 i 2001 – 2010 2497 130 177
BMW 5 (E60) 525 i 2001 – 2010 2497 160 218
BMW 5 (E60) 540 i 2001 – 2010 4000 225 306
BMW 5 (E60) 550 i 2001 – 2010 4799 270 367
BMW 5 (E60) 520 d 2001 – 2010 1995 120 163
BMW 5 (E60) 530 d 2001 – 2010 2993 170 231
BMW 5 (E60) 525 xi 2001 – 2010 2497 160 218
BMW 5 (E60) 530 xi 2001 – 2010 2996 190 258
BMW 5 (E60) 530 xd 2001 – 2010 2993 170 231
BMW 5 (E60) 525 d 2001 – 2010 2497 120 163
BMW 5 (E60) 520 d 2001 – 2010 1995 110 150
BMW 5 (E60) 535 d 2001 – 2010 2993 210 286
BMW 5 (E60) 525 i 2001 – 2010 2996 160 218
BMW 5 (E60) 525 xi 2001 – 2010 2996 160 218
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 525 d 2001 – 2010 2993 145 197
BMW 5 (E60) 530 d 2001 – 2010 2993 173 235
BMW 5 (E60) 530 xd 2001 – 2010 2993 173 235
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 530 xi 2001 – 2010 2996 200 272
BMW 5 (E60) 530 i 2001 – 2010 2996 187 254
BMW 5 (E60) 535 i 2001 – 2010 2979 225 306
BMW 5 (E60) 525 xd 2001 – 2010 2993 145 197
BMW 5 (E60) 520 d 2001 – 2010 1995 130 177
BMW 5 (E60) 520 i 2001 – 2010 1995 125 170
BMW 5 (E60) 520 i 2001 – 2010 1995 120 163
BMW 5 (E60) 525 i xDrive 2001 – 2010 2996 160 218
BMW 5 (E60) 530 i xDrive 2001 – 2010 2996 200 272
BMW 5 (E60) 525 d xDrive 2001 – 2010 2993 145 197
BMW 5 (E60) 530 d xDrive 2001 – 2010 2993 173 235
BMW 5 (E60) 545 i 2001 – 2010 4398 242 329
BMW 5 (E60) 550 i 2001 – 2010 4799 261 355
BMW 5 (E60) 535 i xDrive 2001 – 2010 2979 224 305
BMW 5 (E60) 530 d 2001 – 2010 2993 155 211
BMW 5 (E60) 520 i 2001 – 2010 1995 115 156
BMW 5 (E60) 540 i 2001 – 2010 4000 220 299
BMW 5 (E60) 535 i 2001 – 2010 2979 224 305
BMW 5 (E60) 535 xi 2001 – 2010 2979 225 306
BMW 5 (E60) 523 i 2001 – 2010 2497 140 190
BMW 5 (E60) 530 i 2001 – 2010 2996 200 272
BMW 5 (E60) 525 i 2001 – 2010 2497 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2494 141 192
BMW 5 Touring (E61) 545 i 2004 – 2010 4398 245 333
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 160 218
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 200 272
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 130 177
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 550 i 2004 – 2010 4799 270 367
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 170 231
BMW 5 Touring (E61) 525 xi 2004 – 2010 2497 160 218
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 190 258
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 525 d 2004 – 2010 2497 120 163
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 110 150
BMW 5 Touring (E61) 525 d 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 xd 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 525 xi 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 535 d 2004 – 2010 2993 210 286
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) M5 2004 – 2010 4999 373 507
BMW 5 Touring (E61) 525 xd 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 520 d 2004 – 2010 1995 130 177
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 125 170
BMW 5 Touring (E61) 525 i xDrive 2004 – 2010 2996 160 218
BMW 5 Touring (E61) 530 i xDrive 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 525 d xDrive 2004 – 2010 2993 145 197
BMW 5 Touring (E61) 530 d xDrive 2004 – 2010 2993 173 235
BMW 5 Touring (E61) 535 xi 2004 – 2010 2979 224 305
BMW 5 Touring (E61) 530 d 2004 – 2010 2993 155 211
BMW 5 Touring (E61) 520 i 2004 – 2010 1995 120 163
BMW 5 Touring (E61) 530 i 2004 – 2010 2996 200 272
BMW 5 Touring (E61) 523 i 2004 – 2010 2497 140 190
BMW 5 Touring (E61) 525 i 2004 – 2010 2996 155 211
BMW 5 Touring (E61) 525 i 2004 – 2010 2497 155 211
BMW 5 Touring (E61) 530 xi 2004 – 2010 2996 200 272
BMW 6 (E63) 630 Ci 2003 – 2010 2979 190 258
BMW 6 (E63) 645 Ci 2003 – 2010 4398 245 333
BMW 6 (E63) 630 i 2003 – 2010 2996 190 258
BMW 6 (E63) 650 i 2003 – 2010 4799 270 367
BMW 6 (E63) M 2003 – 2010 4999 373 507
BMW 6 (E63) 630 i 2003 – 2010 2996 200 272
BMW 6 (E63) 635 d 2003 – 2010 2993 210 286
BMW 6 (E63) 645 Ci 2003 – 2010 4398 242 329
BMW 6 (E63) 630 i 2003 – 2010 2996 200 272
BMW 6 Convertible (E64) 645 Ci 2004 – 2010 4398 245 333
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 190 258
BMW 6 Convertible (E64) 650 i 2004 – 2010 4799 270 367
BMW 6 Convertible (E64) M6 2004 – 2010 4999 373 507
BMW 6 Convertible (E64) 635 d 2004 – 2010 2993 210 286
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 200 272
BMW 6 Convertible (E64) 645 Ci 2004 – 2010 4398 242 329
BMW 6 Convertible (E64) 630 i 2004 – 2010 2996 200 272
