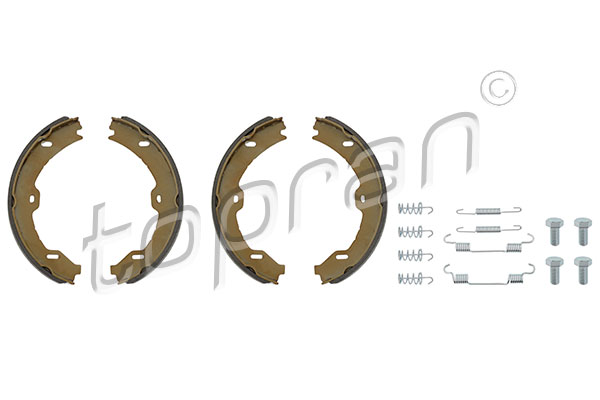

Brake Shoe Set, parking brake
TOPRAN Braking System

Brake Shoe Set, parking brake

Part No. 401 026 · SKU 401 026-TOPRAN
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Fitting Position Rear Axle
Full Set
Inner brake drum diameter (mm)180
New Part
Quantity per axle 1
Supplementary Article/Info 2 with E quality seal
Supplementary Article/Info 2 with fastening material
Supplementary Article/Info 2 with mounting manual
Test Mark ECE R90 APPROVED
Used part return not required
Width (mm)25
Fitting Position Rear Axle, Full Set , Inner brake drum diameter [mm] 180, New Part , Quantity per axle 1, Supplementary Article/Info 2 with E quality seal, Supplementary Article/Info 2 with fastening material, Supplementary Article/Info 2 with mounting manual, Test Mark ECE R90 APPROVED, Used part return not required , Width [mm] 25
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.9141 A.B.S.9224 ABECRM007ABE ACEMARK113156 APECSHU675 ASAM AUTOMOTIVE102266 ASHIKAGF-0510AF ATE03.0137-4017.2 BENDIX610469 BENDIX BrakingBXS1146 BLUE PRINTADBP410040 BORG & BECKBBS6393 BORG & BECKBBS6396 BOSCH0 986 487 666 Brake ENGINEERINGSH2620 BRAXISAC0207 BREMBO S50 519 BREMBOS50519 BREMSIGF0312 BREMSIGF0318 BSF01766K BSF01766KC BSF01766KD BSF1766 BSG BSG60-205-020 BSGBSG60205020 CIFAM153-243 DANAHERAH1066 DELPHILS1923 DENCKERMANNB120130 DENCKERMANNB120203 DIAMAXN01345 DYNAMATRIXDBS669 E.T.F.09-0629 EUROBRAKE58492733732 EUROBRAKE58492733765 EUROREPAR1690922580 FEBI BILSTEIN23194 FEBI BILSTEIN23195 FERODOFSB669 FITFT0874 FOMAR Friction FO1097 FOMAR FrictionFO1097 fri.tech.1052.130 FTE9100091 FTEBB1336A6 GIRLING5187219 HELLA8DA 355 050-481 HP (ZEBRA)HP1802 ICER79PB4013 C ITN16-BS1276 JAPANPARTSGF0510JM JURATEKJBS1131 JURID362650J KAGER34-0696 KAMOKAJQ212028 KAWE09020 KAWE09020K KRAFT AUTOMOTIVE6021113 MAPCO8610 MAPCO8610/1 MAXGEAR19-2081 METELLI53-0243 METZGER0152012 METZGER KR962 METZGERKR962 MEYLE014 042 1002/S MEYLE014 042 1002 MGAM829R MINTEXMFR568 MOTAQUIPLVBS804 MOTRIO8550501708 NiBKFN0657 NK2733732 NK2733765 OPEN PARTSBSA2190.00 OPTIMALBB-7243 OPTIMALBB-7418 PAGIDH9510 PAGIDH9510N PEMEBLABNXBXS1146 PEX6.271 PROFIT5001-0669 PROTECHNICPRS0271 PROTECHNICPRS0272 QH BeneluxBS1158 R BRAKE79RBPB4013 RAICAM2901 RAICAM29311 RAICAMRA28630 RAICAMRA29010 RAICAMRA29011 RAICAMRA29310 RAICAMRA29311 REMSA4708.00 SAMKO89020 SAMKO89020K sbs18492733732 sbs18492733765 SIMERS744 SIMERS956 SWAG10 92 3194 SWAG10 92 3195 TEXTAR91058800 TOMEX Brakes TX21-72 TOMEX BrakesTX2172 TOMEX Brakes TX22-14 TOMEX BrakesTX2214 TRIALLI GF4609 TRIALLIGF4609 TRISCAN8100 23026 TRUCKTEC AUTOMOTIVE02.35.206 TRUSTING052.130 TRWGS8721 VAICOV30-0544 VALEO564245 VEMA84863 VILLAR6290853 WEEN152-2486 WOKINGZ4708.00 ZEKKERTBK-4303 ZIMMERMANN10990.129.4 ZIMMERMANN10990.129.5

OE Numbers — MERCEDES-BENZ

230 420 03 20 A230 420 03 20
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ E-CLASS (W211) E 500 4-matic (211.090) 2002 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS (W211) E 200 NGT (211.042) 2002 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS (W211) E 280 CDI (211.023) 2002 – 2009 3222 130 177
MERCEDES-BENZ E-CLASS (W211) E 280 (211.054) 2002 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS (W211) E 350 (211.056) 2002 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS (W211) E 280 CDI (211.020) 2002 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS (W211) E 320 CDI (211.022) 2002 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS (W211) E 280 CDI 4-matic (211.084) 2002 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS (W211) E 420 CDI (211.029) 2002 – 2009 3996 231 314
MERCEDES-BENZ E-CLASS (W211) E 280 4-matic (211.092) 2002 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS (W211) E 350 4-matic (211.087) 2002 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS (W211) E 320 CDI 4-matic (211.089) 2002 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.007) 2002 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.008) 2002 – 2009 2148 125 170
MERCEDES-BENZ E-CLASS (W211) E 200 Kompressor (211.041) 2002 – 2009 1796 135 184
MERCEDES-BENZ E-CLASS (W211) E 220 CDI 2002 – 2009 2149 120 163
MERCEDES-BENZ E-CLASS (W211) E 500 (211.072) 2002 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS (W211) E 63 AMG (211.077) 2002 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.006) 2002 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS (W211) E 350 CGI (211.057) 2002 – 2009 3498 215 292
MERCEDES-BENZ E-CLASS (W211) E 300 BlueTEC (211.024) 2002 – 2009 2987 155 211
MERCEDES-BENZ E-CLASS (W211) E 230 (211.052) 2002 – 2009 2496 150 204
MERCEDES-BENZ E-CLASS (W211) E 350 4-matic (211.087) 2002 – 2009 3498 205 279
MERCEDES-BENZ E-CLASS (W211) E 500 (211.070) 2002 – 2009 4966 215 292
MERCEDES-BENZ E-CLASS (W211) E320 CDI (211.022) 2002 – 2009 2987 156 212
MERCEDES-BENZ E-CLASS (W211) E 270 CDI (211.016) 2002 – 2009 2685 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 BlueTEC (211.022) 2002 – 2009 2987 156 212
MERCEDES-BENZ E-CLASS (W211) E 63 AMG (211.077) 2002 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS (W211) E 240 (211.061) 2002 – 2009 2597 120 163
MERCEDES-BENZ E-CLASS (W211) E 400 CDI (211.028) 2002 – 2009 3996 191 260
MERCEDES-BENZ E-CLASS (W211) E 320 CDI (211.026) 2002 – 2009 3222 150 204
MERCEDES-BENZ E-CLASS (W211) E 270 CDI (211.016) 2002 – 2009 2685 130 177
MERCEDES-BENZ E-CLASS (W211) E 240 4-matic (211.080) 2002 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS (W211) E 220 CDI (211.006) 2002 – 2009 2148 110 150
MERCEDES-BENZ E-CLASS (W211) E 200 Kompressor (211.042) 2002 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS (W211) E 320 4-matic (211.082) 2002 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.004) 2002 – 2009 2148 75 102
MERCEDES-BENZ E-CLASS (W211) E 240 (211.061) 2002 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS (W211) E 500 (211.070) 2002 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS (W211) E 320 (211.065) 2002 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS (W211) E 500 4-matic (211.083) 2002 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS (W211) E 55 AMG Kompressor (211.076) 2002 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS (W211) E 200 CDI (211.004) 2002 – 2009 2148 90 122
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 CDI (211.207) 2003 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T 4-matic (211.290) 2003 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T 4-matic (211.282) 2003 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 Kompressor (211.241) 2003 – 2009 1796 135 184
MERCEDES-BENZ E-CLASS T-Model (S211) E 63 AMG (211.277) 2003 – 2009 6208 378 514
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T (211.265) 2003 – 2009 3199 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 CDI (211.206) 2003 – 2009 2148 100 136
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T (211.261) 2003 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T (211.272) 2003 – 2009 5461 285 388
MERCEDES-BENZ E-CLASS T-Model (S211) 350 CGI (211.257) 2003 – 2009 3498 215 292
MERCEDES-BENZ E-CLASS T-Model (S211) 3.5 4-matic 2003 – 2009 3498 205 279
MERCEDES-BENZ E-CLASS T-Model (S211) E 230 T (211.252) 2003 – 2009 2496 150 204
MERCEDES-BENZ E-CLASS T-Model (S211) E 270 T CDI (211.216) 2003 – 2009 2685 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.222) 2003 – 2009 2987 155 211
MERCEDES-BENZ E-CLASS T-Model (S211) E 55 T AMG Kompressor 2003 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI 2003 – 2009 2148 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T (211.261) 2003 – 2009 2597 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 350 T (211.256) 2003 – 2009 3498 200 272
MERCEDES-BENZ E-CLASS T-Model (S211) E 55 T AMG Kompressor (211.276) 2003 – 2009 5439 350 476
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T (211.270) 2003 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS T-Model (S211) E 500 T 4-matic (211.283) 2003 – 2009 4966 225 306
MERCEDES-BENZ E-CLASS T-Model (S211) E 240 T 4-matic (211.280) 2003 – 2009 2597 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI (211.223) 2003 – 2009 3222 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.226) 2003 – 2009 3222 150 204
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI (211.222) 2003 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI (211.220) 2003 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T (211.254) 2003 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI (211.208) 2003 – 2009 2148 125 170
MERCEDES-BENZ E-CLASS T-Model (S211) E 270 T CDI (211.216) 2003 – 2009 2685 130 177
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T CDI 4-matic (211.284) 2003 – 2009 2987 140 190
MERCEDES-BENZ E-CLASS T-Model (S211) E 280 T 4-matic (211.292) 2003 – 2009 2996 170 231
MERCEDES-BENZ E-CLASS T-Model (S211) E 220 T CDI (211.206) 2003 – 2009 2148 110 150
MERCEDES-BENZ E-CLASS T-Model (S211) E 200 T Kompressor (211.242) 2003 – 2009 1796 120 163
MERCEDES-BENZ E-CLASS T-Model (S211) E 320 T CDI 4-matic (211.289) 2003 – 2009 2987 165 224
MERCEDES-BENZ E-CLASS T-Model (S211) E 350 T 4-matic (211.287) 2003 – 2009 3498 200 272
MERCEDES-BENZ SL (R230) 350 (230.467) 2001 – 2012 3724 180 245
MERCEDES-BENZ SL (R230) 55 AMG (230.472) 2001 – 2012 5439 380 517
MERCEDES-BENZ SL (R230) 500 (230.475) 2001 – 2012 4966 225 306
MERCEDES-BENZ SL (R230) 600 (230.477) 2001 – 2012 5513 380 517
MERCEDES-BENZ SL (R230) 55 AMG (230.474) 2001 – 2012 5439 350 476
MERCEDES-BENZ SL (R230) 500 (230.471) 2001 – 2012 5461 285 388
MERCEDES-BENZ SL (R230) 55 AMG (230.474) 2001 – 2012 5439 350 476
MERCEDES-BENZ SL (R230) 500 2001 – 2012 4966 215 292
MERCEDES-BENZ SL (R230) 350 (230.456) 2001 – 2012 3498 200 272
MERCEDES-BENZ SL (R230) 65 AMG (230.479) 2001 – 2012 5980 450 612
MERCEDES-BENZ SL (R230) 600 (230.476) 2001 – 2012 5513 368 500
MERCEDES-BENZ SL (R230) 65 AMG Black Series (230.479) 2001 – 2012 5980 493 670
MERCEDES-BENZ SL (R230) 300 (230.454) 2001 – 2012 2996 170 231
MERCEDES-BENZ SL (R230) 55 AMG Kompressor (230.474) 2001 – 2012 5439 368 500
MERCEDES-BENZ SL (R230) 280 (230.454) 2001 – 2012 2996 170 231
MERCEDES-BENZ SL (R230) 63 AMG (230.470) 2001 – 2012 6208 386 525
MERCEDES-BENZ SL (R230) 350 (230.458) 2001 – 2012 3498 232 316
