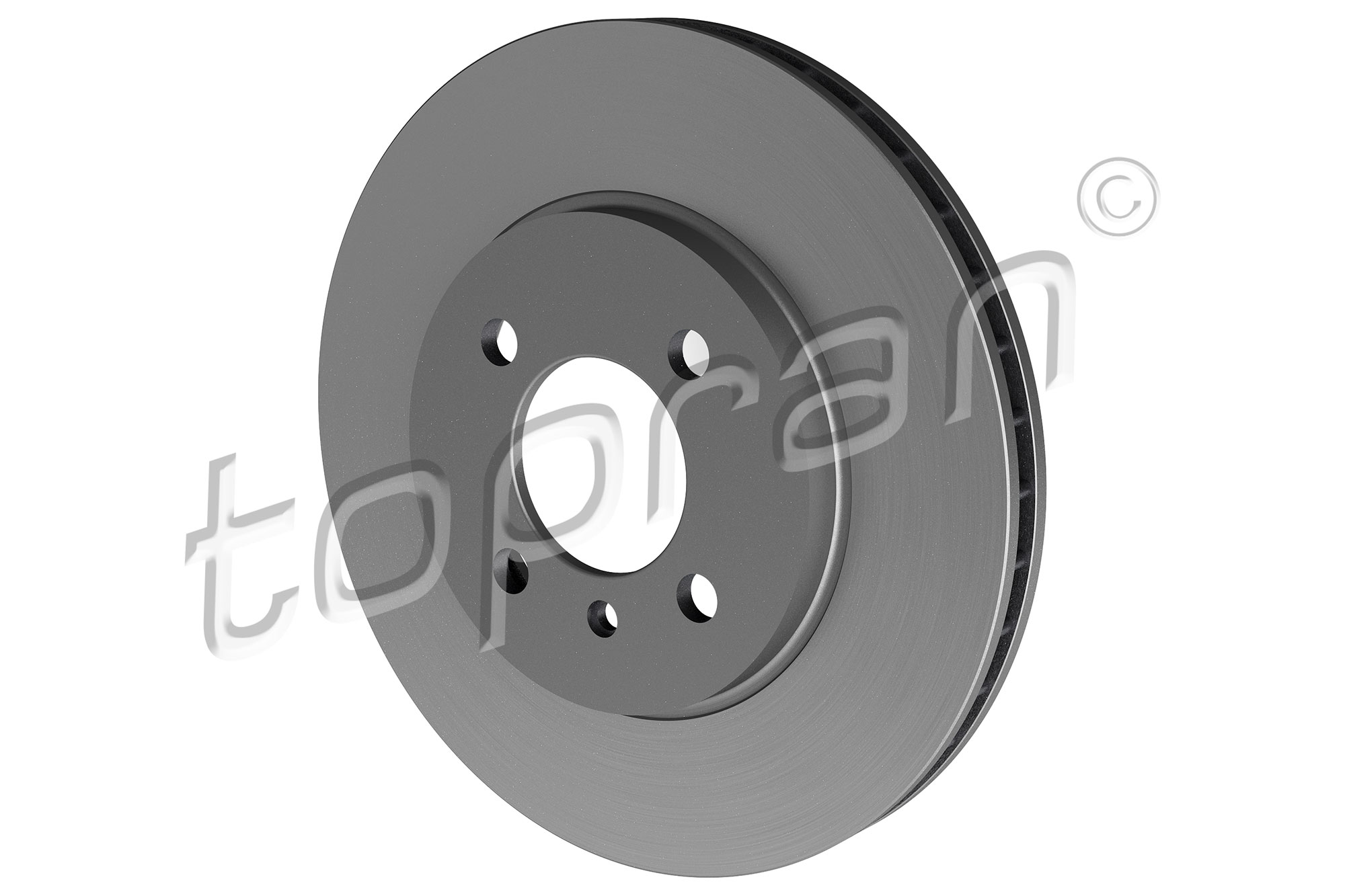

Brake Disc
Part No.
500 559
·
SKU
500 559-TOPRAN
Front Axle
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 22 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 66 |
| Fitting Position Front Axle | |
| Height (mm) | 35 |
| Hub Diameter (mm) | 148 |
| Outer Diameter (mm) | 260 |
| Replace in pairs only | |
| Rim Hole Number 4 | |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 66, Fitting Position Front Axle, Height [mm] 35, Hub Diameter [mm] 148, Outer Diameter [mm] 260, Replace in pairs only , Rim Hole Number 4
Fits: BMW
Fits: BMW
Interchangeable Part Numbers
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | 3 (E30) | 324 d | 1982 – 1992 | 2443 | 63 | 86 |
| BMW | 3 (E30) | 320 is | 1982 – 1992 | 1990 | 141 | 192 |
| BMW | 3 (E30) | M3 EVO I 2.3 | 1982 – 1992 | 2302 | 162 | 220 |
| BMW | 3 (E30) | M3 EVO II 2.5 | 1982 – 1992 | 2467 | 175 | 238 |
| BMW | 3 (E30) | 316 i | 1982 – 1992 | 1766 | 75 | 102 |
| BMW | 3 (E30) | 315 | 1982 – 1992 | 1573 | 55 | 75 |
| BMW | 3 (E30) | 316 | 1982 – 1992 | 1766 | 66 | 90 |
| BMW | 3 (E30) | 316 i | 1982 – 1992 | 1596 | 75 | 102 |
| BMW | 3 (E30) | 325 i | 1982 – 1992 | 2494 | 141 | 192 |
| BMW | 3 (E30) | 320 i | 1982 – 1992 | 1990 | 93 | 126 |
| BMW | 3 (E30) | 333 i | 1982 – 1992 | 3210 | 145 | 197 |
| BMW | 3 (E30) | 316 (Ecotronic) | 1982 – 1992 | 1766 | 66 | 90 |
| BMW | 3 (E30) | 324 td | 1982 – 1992 | 2443 | 85 | 115 |
| BMW | 3 (E30) | 325 e 2.7 | 1982 – 1992 | 2693 | 95 | 129 |
| BMW | 3 (E30) | 325 e 2.7 | 1982 – 1992 | 2693 | 90 | 122 |
| BMW | 3 (E30) | 325 i | 1982 – 1992 | 2494 | 126 | 171 |
| BMW | 3 (E30) | 325 i | 1982 – 1992 | 2494 | 125 | 170 |
| BMW | 3 (E30) | 316 i | 1982 – 1992 | 1596 | 73 | 100 |
| BMW | 3 (E30) | 318 i | 1982 – 1992 | 1766 | 75 | 102 |
| BMW | 3 (E30) | 318 i | 1982 – 1992 | 1766 | 77 | 105 |
| BMW | 3 (E30) | 318 i | 1982 – 1992 | 1796 | 85 | 115 |
| BMW | 3 (E30) | 318 i | 1982 – 1992 | 1796 | 83 | 113 |
| BMW | 3 (E30) | 318 is | 1982 – 1992 | 1796 | 100 | 136 |
| BMW | 3 (E30) | 320 i | 1982 – 1992 | 1990 | 95 | 129 |
| BMW | 3 (E30) | 320 i | 1982 – 1992 | 1990 | 92 | 125 |
| BMW | 3 (E30) | M3 2.3 | 1982 – 1992 | 2302 | 143 | 195 |
| BMW | 3 (E30) | M3 2.3 | 1982 – 1992 | 2302 | 147 | 200 |
| BMW | 3 (E30) | 323 i | 1982 – 1992 | 2316 | 102 | 139 |
| BMW | 3 (E30) | 323 i | 1982 – 1992 | 2316 | 110 | 150 |
| BMW | 3 (E30) | M3 2.3 | 1982 – 1992 | 2302 | 158 | 215 |
| BMW | 3 (E30) | 325 i X | 1982 – 1992 | 2494 | 125 | 170 |
| BMW | 3 (E30) | 325 i X | 1982 – 1992 | 2494 | 126 | 171 |
| BMW | 3 Convertible (E30) | 323 i | 1982 – 1993 | 2316 | 102 | 139 |
| BMW | 3 Convertible (E30) | 318 Baur TC | 1982 – 1993 | 1766 | 66 | 90 |
| BMW | 3 Convertible (E30) | M3 2.3 | 1982 – 1993 | 2303 | 158 | 215 |
| BMW | 3 Convertible (E30) | M3 2.3 | 1982 – 1993 | 2302 | 147 | 200 |
| BMW | 3 Convertible (E30) | 318 i Baur TC | 1982 – 1993 | 1766 | 77 | 105 |
| BMW | 3 Convertible (E30) | 316 i Baur TC | 1982 – 1993 | 1596 | 73 | 99 |
| BMW | 3 Convertible (E30) | 1982 – 1993 | 2693 | 90 | 122 | |
| BMW | 3 Convertible (E30) | 320 i | 1982 – 1993 | 1990 | 93 | 126 |
| BMW | 3 Convertible (E30) | 318 i | 1982 – 1993 | 1796 | 103 | 140 |
| BMW | 3 Convertible (E30) | M3 2.3 | 1982 – 1993 | 2302 | 143 | 195 |
| BMW | 3 Convertible (E30) | 325 i | 1982 – 1993 | 2494 | 126 | 171 |
| BMW | 3 Convertible (E30) | 325 i | 1982 – 1993 | 2494 | 125 | 170 |
| BMW | 3 Convertible (E30) | 320 i | 1982 – 1993 | 1990 | 95 | 129 |
| BMW | 3 Convertible (E30) | 318 i | 1982 – 1993 | 1796 | 83 | 113 |
| BMW | 3 Touring (E30) | 318 i | 1987 – 1994 | 1796 | 85 | 115 |
| BMW | 3 Touring (E30) | 316 i | 1987 – 1994 | 1596 | 75 | 102 |
| BMW | 3 Touring (E30) | 316 i | 1987 – 1994 | 1596 | 73 | 100 |
| BMW | 3 Touring (E30) | 320 i | 1987 – 1994 | 1991 | 93 | 126 |
| BMW | 3 Touring (E30) | 324 td | 1987 – 1994 | 2443 | 85 | 115 |
| BMW | 3 Touring (E30) | 325 i X | 1987 – 1994 | 2494 | 125 | 170 |
| BMW | 3 Touring (E30) | 325 i | 1987 – 1994 | 2494 | 125 | 170 |
| BMW | 3 Touring (E30) | 320 i | 1987 – 1994 | 1991 | 95 | 129 |
| BMW | 3 Touring (E30) | 318 i | 1987 – 1994 | 1796 | 83 | 113 |
