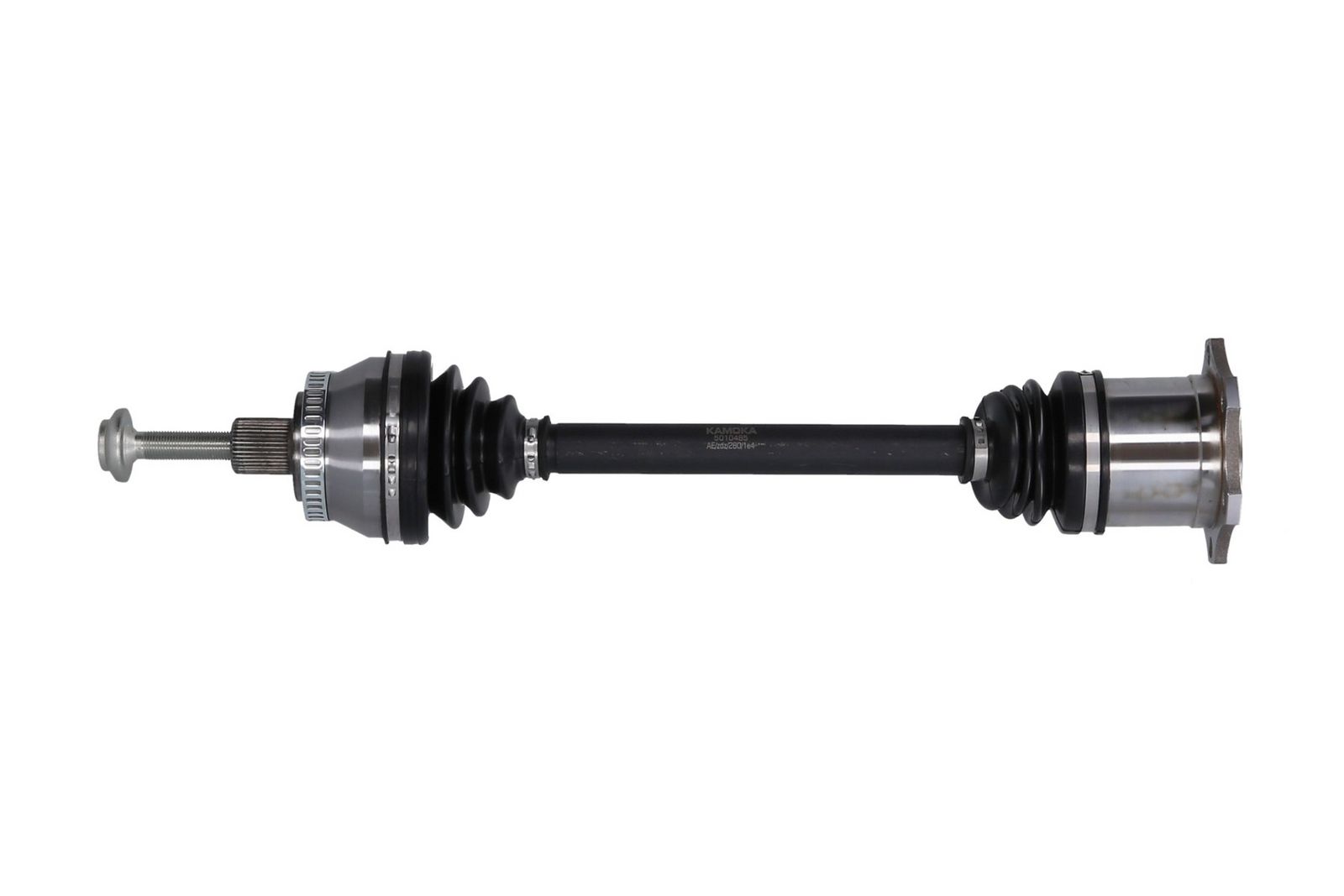

Drive Shaft
Wheel Drive

Drive Shaft

Part No. 5010485 · SKU 5010485-KAMOKA
Front Axle Left
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

ABS-Ring Diameter (mm)81
Bolt Hole Circle Ø (mm)104
Bore Diameter (mm)11
Diameter 2 (mm)124
External Toothing wheel side 38
Length (mm)522
Number of bores 6
Number of Teeth
ABS ring 45
Sealing Ring Diameter (mm)60
Thread Size M16x1.5
Transmission-sided joint diameter (mm)123
Wheel-sided joint diameter (mm)100
ABS-Ring Diameter [mm] 81, Bolt Hole Circle Ø [mm] 104, Bore Diameter [mm] 11, Diameter 2 [mm] 124, External Toothing wheel side 38, Length [mm] 522, Number of bores 6, Number of Teeth, ABS ring 45, Sealing Ring Diameter [mm] 60, Thread Size M16x1.5, Transmission-sided joint diameter [mm] 123, Wheel-sided joint diameter [mm] 100
Fits: AUDI, SEAT

Interchangeable Part Numbers

BORG & BECKBDS1064 DA SILVA2237AT DA SILVA2246AT DEPA3322350 DEPA3322355 DEPA3322955 DEPA3322975 EAIT78249A EAIT78263A GENERAL RICAMBIAU3379 GSP203052 LÖBRO304617 METELLI17-0940 METELLI17-0941 NTYNPW-AU-006 SKF VKJC5519 SKFVKJC5519 SNRAA2418 SPIDAN24301 TrakMotive30-0039

OE Numbers — AUDI

8E0407271AA 8E0407271BF 8E0407271T 8E0407451HX 8E0407451NX 8E0407451X

OE Numbers — VAG

8E0407271BE 8E0407451PX
MakeModelType / Engine YearsCCkWHP
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 184 250
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 186 253
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 127 173
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 (8E2) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 (8E2) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 (8E2) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 Avant (8E5) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 Avant (8E5) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 Avant (8E5) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 127 173
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 Avant (8E5) 2.7 S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 Convertible (8H7) 3.0 2002 – 2009 2976 160 218
AUDI A4 B6 Convertible (8H7) 1.8 T quattro 2002 – 2009 1781 127 173
AUDI A4 B6 Convertible (8H7) 1.8 T 2002 – 2009 1781 125 170
AUDI A4 B6 Convertible (8H7) 2.4 2002 – 2009 2393 125 170
AUDI A4 B6 Convertible (8H7) 3.0 2002 – 2009 2976 162 220
AUDI A4 B6 Convertible (8H7) 2.4 2002 – 2009 2393 120 163
AUDI A4 B6 Convertible (8H7) 2.5 TDI 2002 – 2009 2496 120 163
AUDI A4 B6 Convertible (8H7) 1.8 T 2002 – 2009 1781 120 163
AUDI A4 B6 Convertible (8H7) 1.8 T quattro 2002 – 2009 1781 120 163
AUDI A4 B6 Convertible (8H7) 3.0 quattro 2002 – 2009 2976 162 220
AUDI A4 B6 Convertible (8H7) S4 quattro 2002 – 2009 4163 253 344
AUDI A4 B6 Convertible (8H7) 2.0 2002 – 2009 1984 96 130
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 3.2 FSI quattro 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 100 136
AUDI A4 B7 (8EC) 2.0 TDI 16V 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 150 204
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 1.8 T quattro 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 2.0 2004 – 2009 1984 96 130
AUDI A4 B7 (8EC) 1.6 2004 – 2009 1595 75 102
AUDI A4 B7 (8EC) 1.9 TDI 2004 – 2009 1896 85 116
AUDI A4 B7 (8EC) 2.5 TDI 2004 – 2009 2496 120 163
AUDI A4 B7 (8EC) RS4 quattro 2004 – 2009 4163 309 420
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) S4 quattro 2004 – 2009 4163 253 344
AUDI A4 B7 (8EC) 3.0 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 190 258
AUDI A4 B7 (8EC) 2.0 FSI 2004 – 2009 1984 110 150
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 149 203
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 125 170
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 93 126
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 120 163
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 132 180
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 171 233
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 125 170
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 89 121
AUDI A4 B7 (8EC) 3.0 quattro 2004 – 2009 2976 160 218
AUDI A4 B7 Avant (8ED) 2.7 TDI 2004 – 2008 2698 132 180
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 100 136
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 171 233
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 125 170
AUDI A4 B7 Avant (8ED) 3.0 quattro 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 3.0 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 89 121
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 93 126
AUDI A4 B7 Avant (8ED) 2.7 TDi 2004 – 2008 2698 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 1.6 2004 – 2008 1595 75 102
AUDI A4 B7 Avant (8ED) 2.0 2004 – 2008 1984 96 130
AUDI A4 B7 Avant (8ED) 1.8 T 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 1.8 T quattro 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 3.2 FSI 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 3.2 FSI quattro 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 1.9 TDI 2004 – 2008 1896 85 116
AUDI A4 B7 Avant (8ED) 2.0 TDI 16V 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.5 TDI 2004 – 2008 2496 120 163
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 150 204
AUDI A4 B7 Avant (8ED) RS4 quattro 2004 – 2008 4163 309 420
AUDI A4 B7 Avant (8ED) S4 quattro 2004 – 2008 4163 253 344
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 125 170
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 125 170
AUDI A4 B7 Convertible (8HE) 3.2 FSI 2002 – 2010 3123 188 255
AUDI A4 B7 Convertible (8HE) 3.2 FSI quattro 2002 – 2010 3123 188 255
AUDI A4 B7 Convertible (8HE) 2.0 TDI 2002 – 2010 1968 103 140
AUDI A4 B7 Convertible (8HE) 3.0 TDI quattro 2002 – 2010 2967 171 233
AUDI A4 B7 Convertible (8HE) 2.0 TFSI 16V 2002 – 2010 1984 147 200
AUDI A4 B7 Convertible (8HE) 2.7 TDI 2002 – 2010 2698 132 180
AUDI A4 B7 Convertible (8HE) RS4 quattro 2002 – 2010 4163 309 420
AUDI A4 B7 Convertible (8HE) 3.0 TDI quattro 2002 – 2010 2967 150 204
AUDI A4 B7 Convertible (8HE) 2.0 TDI 2002 – 2010 1968 100 136
AUDI A4 B7 Convertible (8HE) 1.8 T 2002 – 2010 1781 120 163
AUDI A4 B7 Convertible (8HE) S4 quattro 2002 – 2010 4163 253 344
AUDI A4 B7 Convertible (8HE) 2.0 TFSI quattro 2002 – 2010 1984 147 200
