Piston
Crankshaft Drive

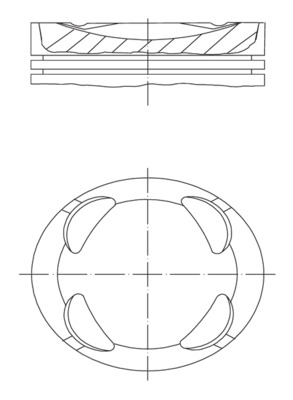

Piston

Part No. 503 PI 00110 000 · SKU 503 PI 00110 000-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Head Diameter (mm)23
Bolt Length (mm)60
Component Number 1. M 1.2 IW N
Component Number 2. NM 1.75 P
Component Number 3. 3S 2.0 N
Component Number 3. 3S 2.0
Compression Height (mm)33.1
Cylinder Bore (mm)100
Length (mm)53.1
Packaging height (cm)12.80
Packaging length (cm)9.5
Packaging width (cm)9.50
Piston Clearance (mm)0.03
Production Number 100 P 61
Recess Depth 1 (mm)5.2
Recess Diameter (mm)86.6
Bolt Head Diameter [mm] 23, Bolt Length [mm] 60, Component Number 1. M 1.2 IW N, Component Number 2. NM 1.75 P, Component Number 3. 3S 2.0 N, Component Number 3. 3S 2.0, Compression Height [mm] 33,1, Cylinder Bore [mm] 100, Length [mm] 53,1, Packaging height [cm] 12,80, Packaging length [cm] 9,5, Packaging width [cm] 9,50, Piston Clearance [mm] 0,03, Production Number 100 P 61, Recess Depth 1 [mm] 5,2, Recess Diameter [mm] 86,6, Surface Ferroprint® hard-anodised, Top Land Height [mm] 6,6, Valve Pocket Depth 1 [mm] 4,56
Fits: PORSCHE

OE Numbers — PORSCHE

997 103 915 71 PIS 997 103 915 71 997 103 916 71 PIS 997 103 916 71
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 235 320
PORSCHE 911 (997) 3.6 GT3 2004 – 2013 3600 305 415
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 368 500
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 GT3 2004 – 2013 3797 320 435
PORSCHE 911 (997) 3.6 GT 2 2004 – 2013 3600 390 530
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3797 331 450
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 309 420
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 373 507
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3800 335 456
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 242 329
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 264 359
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 395 537
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 462 628
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera S / GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Carrera 4S / 4 GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 456 620
PORSCHE 911 (997) 4.0 GT3 RS 2004 – 2013 3996 368 500
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 390 530
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 353 480
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.8 Carrera 4 GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 395 537
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 264 359
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.8 Turbo 2005 – 2013 3800 368 500
PORSCHE 911 Convertible (997) 3.8 Carrera 2005 – 2013 3800 298 405
PORSCHE 911 Convertible (997) 3.8 Carrera S / GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera 4S / 4 GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Turbo 2005 – 2013 3600 353 480
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 235 320
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 390 530
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3614 254 345
