Piston
Crankshaft Drive

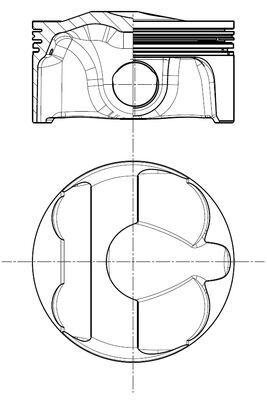

Piston

Part No. 503 PI 00112 000 · SKU 503 PI 00112 000-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Head Diameter (mm)22
Bolt Length (mm)56
Component Number 1. R 1.2 N
Component Number 2. NM 1.5 N P
Component Number 3. 3S 2.0 N
Compression Height (mm)32.95
Cylinder Bore (mm)102
Length (mm)56.4
Net Weight (g)673
Packaging height (cm)14.20
Packaging length (cm)11.6
Packaging width (cm)11.60
Production Number 102 P 11
Surface FerroTec® hard anodized and tin-coated
Top Land Height (mm)4
Bolt Head Diameter [mm] 22, Bolt Length [mm] 56, Component Number 1. R 1.2 N, Component Number 2. NM 1.5 N P, Component Number 3. 3S 2.0 N, Compression Height [mm] 32,95, Cylinder Bore [mm] 102, Length [mm] 56,4, Net Weight [g] 673, Packaging height [cm] 14,20, Packaging length [cm] 11,6, Packaging width [cm] 11,60, Production Number 102 P 11, Surface FerroTec® hard anodized and tin-coated, Top Land Height [mm] 4
Fits: PORSCHE

OE Numbers — PORSCHE

9A1 103 038 00 9A1 103 937 00 9A1 103 938 00
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (991) 3.4 Carrera 2011 – 2020 3436 257 350
PORSCHE 911 (991) 3.8 Carrera S 2011 – 2020 3800 294 400
PORSCHE 911 (991) 3.8 Carrera S / GTS 2011 – 2020 3800 316 430
PORSCHE 911 (991) 3.4 Carrera 4 2011 – 2020 3436 257 350
PORSCHE 911 (991) 3.8 Carrera 4S 2011 – 2020 3800 294 400
PORSCHE 911 (991) 3.8 Carrera 4S / 4 GTS 2011 – 2020 3800 316 430
PORSCHE 911 (991) 3.6 Carrera 2011 – 2020 3614 257 350
PORSCHE 911 (991) 3.8 GT3 2011 – 2020 3799 350 475
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3800 383 520
PORSCHE 911 (991) 3.8 Turbo S 2011 – 2020 3800 412 560
PORSCHE 911 (991) 3.8 Carrera 4S 2011 – 2020 3800 304 413
PORSCHE 911 (991) 3.4 Carrera 2011 – 2020 3436 261 355
PORSCHE 911 (991) 3.8 Carrera S 2011 – 2020 3800 304 413
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3824 373 507
PORSCHE 911 (991) 3.8 Turbo S 2011 – 2020 3824 395 537
PORSCHE 911 (991) 3.4 Carrera 4 2011 – 2020 3436 261 355
PORSCHE 911 (991) 4.0 GT3 RS / R 2011 – 2020 3996 368 500
PORSCHE 911 (991) 3.0 Carrera 2011 – 2020 2981 272 370
PORSCHE 911 (991) 3.0 Carrera 4 2011 – 2020 2981 272 370
PORSCHE 911 (991) 3.0 Carrera S 2011 – 2020 2981 309 420
PORSCHE 911 (991) 3.0 Carrera 4S 2011 – 2020 2981 309 420
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3800 397 540
PORSCHE 911 (991) 3.8 Turbo S 2011 – 2020 3800 427 580
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3800 389 530
PORSCHE 911 (991) 3.0 Carrera GTS 2011 – 2020 2981 331 450
PORSCHE 911 (991) 3.0 Carrera 4 GTS 2011 – 2020 2981 331 450
PORSCHE 911 (991) 3.8 Turbo S 2011 – 2020 3800 446 607
PORSCHE 911 (991) 3.8 GT2 RS 2011 – 2020 3800 515 700
PORSCHE 911 (991) 4.0 GT3 2011 – 2020 3996 368 500
PORSCHE 911 (991) 4.0 GT3 RS 2011 – 2020 3996 383 520
PORSCHE 911 (991) 3.0 Carrera T 2011 – 2020 2981 272 370
PORSCHE 911 (991) 3.0 Carrera S 2011 – 2020 2981 313 426
PORSCHE 911 (991) 3.8 4 GTS 2011 – 2020 3800 321 436
PORSCHE 911 (991) 3.8 Turbo 2011 – 2020 3800 388 528
PORSCHE 911 (991) 3.8 GT3 2011 – 2020 3799 354 481
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 368 500
PORSCHE 911 (997) 3.8 Carrera S / GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Carrera 4S / 4 GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 456 620
PORSCHE 911 (997) 4.0 GT3 RS 2004 – 2013 3996 368 500
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 390 530
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 353 480
PORSCHE 911 (997) 3.6 GT3 2004 – 2013 3600 305 415
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.6 GT 2 2004 – 2013 3600 390 530
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 GT3 2004 – 2013 3797 320 435
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 235 320
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3797 331 450
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 309 420
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 373 507
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3800 335 456
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 242 329
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 264 359
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 395 537
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 462 628
PORSCHE 911 Convertible (991) 3.4 Carrera 2012 – 2020 3436 257 350
PORSCHE 911 Convertible (991) 3.8 Carrera S 2012 – 2020 3800 294 400
PORSCHE 911 Convertible (991) 3.8 Carrera S / GTS 2012 – 2020 3800 316 430
PORSCHE 911 Convertible (991) 3.4 Carrera 4 2012 – 2020 3436 257 350
PORSCHE 911 Convertible (991) 3.8 Carrera 4S 2012 – 2020 3800 294 400
PORSCHE 911 Convertible (991) 3.8 Carrera 4S / 4 GTS 2012 – 2020 3800 316 430
PORSCHE 911 Convertible (991) 3.6 Carrera 2012 – 2020 3614 257 350
PORSCHE 911 Convertible (991) 3.8 Turbo 2012 – 2020 3800 383 520
PORSCHE 911 Convertible (991) 3.8 Turbo S 2012 – 2020 3800 412 560
PORSCHE 911 Convertible (991) 3.4 Carrera 2012 – 2020 3436 261 355
PORSCHE 911 Convertible (991) 3.4 Carrera 4 2012 – 2020 3436 261 355
PORSCHE 911 Convertible (991) 3.8 Turbo 2012 – 2020 3824 373 507
PORSCHE 911 Convertible (991) 3.8 Turbo S 2012 – 2020 3824 395 537
PORSCHE 911 Convertible (991) 3.0 Carrera 2012 – 2020 2981 272 370
PORSCHE 911 Convertible (991) 3.0 Carrera 4 2012 – 2020 2981 272 370
PORSCHE 911 Convertible (991) 3.0 Carrera S 2012 – 2020 2981 309 420
PORSCHE 911 Convertible (991) 3.0 Carrera 4S 2012 – 2020 2981 309 420
PORSCHE 911 Convertible (991) 3.8 Turbo 2012 – 2020 3800 397 540
PORSCHE 911 Convertible (991) 3.8 Turbo S 2012 – 2020 3800 427 580
PORSCHE 911 Convertible (991) 3.0 Carrera GTS 2012 – 2020 2981 331 450
PORSCHE 911 Convertible (991) 3.0 Carrera 4 GTS 2012 – 2020 2981 331 450
PORSCHE 911 Convertible (991) 3.0 Carrera S 2012 – 2020 2981 313 426
PORSCHE 911 Convertible (997) 3.8 Turbo 2005 – 2013 3800 368 500
PORSCHE 911 Convertible (997) 3.8 Carrera S / GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera 4S / 4 GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 390 530
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.6 Turbo 2005 – 2013 3600 353 480
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 235 320
PORSCHE 911 Convertible (997) 3.8 Carrera GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera 2005 – 2013 3800 298 405
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 264 359
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 395 537
PORSCHE 911 Convertible (997) 3.8 Carrera 4 GTS 2005 – 2013 3800 304 413
PORSCHE 911 Speedster (997) 3.8 (997.720, 997.721) 2010 – 2011 3800 300 408
PORSCHE 911 Targa (991) 3.4 Carrera 4 2014 – 2019 3436 257 350
PORSCHE 911 Targa (991) 3.8 Carrera 4S 2014 – 2019 3800 294 400
PORSCHE 911 Targa (991) 3.8 Carrera 4S / 4 GTS 2014 – 2019 3800 316 430
PORSCHE 911 Targa (991) 3.0 Carrera 4 2014 – 2019 2981 272 370
PORSCHE 911 Targa (991) 3.0 Carrera 4S 2014 – 2019 2981 309 420
PORSCHE 911 Targa (991) 3.0 Carrera 4 GTS 2014 – 2019 2981 331 450
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3614 254 345
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 283 385
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3596 239 325
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 261 355
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 280 381
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 300 408
