Piston
Crankshaft Drive

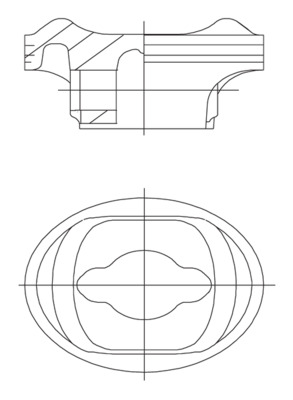

Piston

Part No. 504 36 00 · SKU 504 36 00-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Head Diameter (mm)23.0
Bolt Length (mm)54.0
Component Number 1. M 1.75 IW P
Component Number 2. NM 1.75 P
Component Number 3. SSF 2.0
Compression Height (mm)31.8
Cylinder Bore (mm)100.0
Length (mm)63.3
Net Weight (g)596
Packaging height (cm)14.30
Packaging length (cm)11.6
Packaging width (cm)11.60
Piston Clearance (mm)0.035
Production Number 100 P 46
Surface Coated
Top Land Height (mm)6.1
Bolt Head Diameter [mm] 23,0, Bolt Length [mm] 54,0, Component Number 1. M 1.75 IW P, Component Number 2. NM 1.75 P, Component Number 3. SSF 2.0, Compression Height [mm] 31,8, Cylinder Bore [mm] 100,0, Length [mm] 63,3, Net Weight [g] 596, Packaging height [cm] 14,30, Packaging length [cm] 11,6, Packaging width [cm] 11,60, Piston Clearance [mm] 0,035, Production Number 100 P 46, Surface Coated, Top Land Height [mm] 6,1
Fits: PORSCHE

OE Numbers — PORSCHE

993 103 91 551 993 103 91 552 993 103 91 553 993 103 91 554
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (993) 3.6 Carrera 1993 – 1997 3600 200 272
PORSCHE 911 (993) 3.6 Carrera 4 1993 – 1997 3600 200 272
PORSCHE 911 (993) 3.6 Turbo 4 1993 – 1997 3600 300 408
PORSCHE 911 (993) 3.6 Turbo GT2 1993 – 1997 3600 316 430
PORSCHE 911 (993) 3.8 Carrera 1993 – 1997 3746 210 286
PORSCHE 911 (993) 3.8 Carrera 4 1993 – 1997 3746 210 286
PORSCHE 911 (993) 3.8 Carrera RS 1993 – 1997 3746 221 300
PORSCHE 911 (993) 3.8 Carrera 4 1993 – 1997 3746 221 300
PORSCHE 911 (993) 3.6 Carrera 4 1993 – 1997 3600 210 286
PORSCHE 911 (993) 3.6 Turbo GT2 4 1993 – 1997 3600 316 430
PORSCHE 911 (993) 3.6 Turbo GT2 4 1993 – 1997 3600 331 450
PORSCHE 911 (993) 3.6 Carrera 1993 – 1997 3600 210 286
PORSCHE 911 (993) 3.8 Carrera 1993 – 1997 3746 221 301
PORSCHE 911 (993) 3.6 Turbo 4 1993 – 1997 3600 298 405
