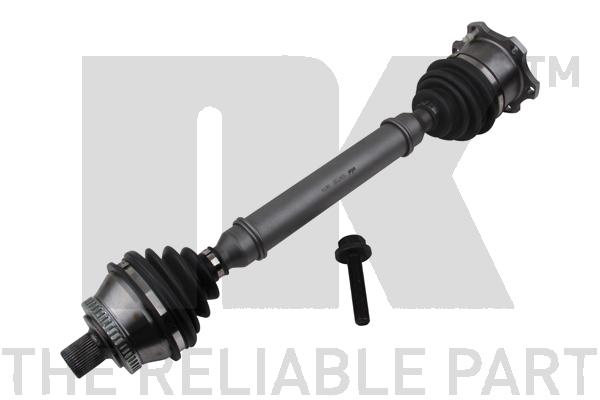

Drive Shaft
Wheel Drive

Drive Shaft

Part No. 5047120 · SKU 5047120-NK
Front Axle Left
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Drive Shaft with ABS ring
External Toothing wheel side 38
Length (mm)603
Net weight (kg)8.4
Number of Teeth
ABS ring 45, paired article number 5047119
Sealing Ring Diameter (mm)59.5
Tripod roller diameter (mm)37.1
Drive Shaft with ABS ring, External Toothing wheel side 38, Length [mm] 603, Net weight [kg] 8,4, Number of Teeth, ABS ring 45, paired article number 5047119, Sealing Ring Diameter [mm] 59,5, Tripod roller diameter [mm] 37,1
Fits: AUDI, SKODA, VW

Interchangeable Part Numbers

FEBI BILSTEIN22687 GSP203008 JP GROUP1143100570 JP GROUP1143100579 LÖBRO301288 LPRDS14225 MAPCO16866 METELLI17-0603 MEYLE100 498 0146 OPTIMALDS-0057 OPTIMALDS-3518 SHAFTECVW171AL SKF VKJC5444 SKFVKJC5444 TRISCAN8540 29643 TRISCAN854029645

OE Numbers — AUDI

8D0 407 271 AJ 8D0 407 271 BB 8D0 407 271 DT 8D0 407 451 CV 8D0 407 451 CX 8D0 407 453 EX

OE Numbers — SKODA

3B0 407 271 NX 3B0 407 271 N 8D0 407 451 LX

OE Numbers — VW

8D0 407 271 EC 8D0 407 271 EL JZW407449QX JZW407449SX JZW407449TX

OE Numbers — VW JZW

407 449 QX 407 449 SX 407 449 TX
MakeModelType / Engine YearsCCkWHP
AUDI A4 B5 (8D2) 2.4 quattro 1994 – 2001 2393 120 163
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 142 193
AUDI A4 B5 (8D2) S4 quattro 1994 – 2001 2671 187 254
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 142 193
AUDI A4 B5 (8D2) 1.9 TDI quattro 1994 – 2001 1896 81 110
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 121 165
AUDI A4 B5 (8D2) 2.4 quattro 1994 – 2001 2393 121 165
AUDI A4 B5 (8D2) S4 quattro 1994 – 2001 2671 195 265
AUDI A4 B5 (8D2) 2.5 TDI 1994 – 2001 2496 110 150
AUDI A4 B5 (8D2) 2.5 TDI quattro 1994 – 2001 2496 110 150
AUDI A4 B5 (8D2) 2.7 Turbo quattro 1994 – 2001 2671 169 230
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 120 163
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 85 116
AUDI A4 B5 (8D2) 1.6 1994 – 2001 1595 75 102
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 132 180
AUDI A4 B5 (8D2) 1.8 T 1994 – 2001 1781 132 180
AUDI A4 B5 (8D2) 1.8 quattro 1994 – 2001 1781 85 115
AUDI A4 B5 (8D2) 1.9 TDI quattro 1994 – 2001 1896 85 116
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 55 75
AUDI A4 B5 (8D2) 1.8 1994 – 2001 1781 85 115
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 81 110
AUDI A4 B5 (8D2) 1.8 1994 – 2001 1781 92 125
AUDI A4 B5 (8D2) 1.8 T 1994 – 2001 1781 110 150
AUDI A4 B5 (8D2) 2.6 1994 – 2001 2598 110 150
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 128 174
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 66 90
AUDI A4 B5 (8D2) 1.8 quattro 1994 – 2001 1781 92 125
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 110 150
AUDI A4 B5 (8D2) 2.6 quattro 1994 – 2001 2598 110 150
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 128 174
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 140 190
AUDI A4 B5 (8D2) 1.6 1994 – 2001 1595 74 100
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 125 170
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 140 190
AUDI A4 B5 (8D2) 2.6 1994 – 2001 2598 102 139
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 110 150
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 120 163
AUDI A4 B5 Avant (8D5) 1.6 1994 – 2002 1595 75 102
AUDI A4 B5 Avant (8D5) 2.4 quattro 1994 – 2002 2393 120 163
AUDI A4 B5 Avant (8D5) 2.8 quattro 1994 – 2002 2771 140 190
AUDI A4 B5 Avant (8D5) 1.8 quattro 1994 – 2002 1781 85 115
AUDI A4 B5 Avant (8D5) 2.8 1994 – 2002 2771 140 190
AUDI A4 B5 Avant (8D5) 1.9 Hybrid 1994 – 2002 1896 66 90
AUDI A4 B5 Avant (8D5) 1.8 1994 – 2002 1781 85 115
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 110 150
AUDI A4 B5 Avant (8D5) S4 quattro 1994 – 2002 2671 185 252
AUDI A4 B5 Avant (8D5) 2.8 quattro 1994 – 2002 2771 142 193
AUDI A4 B5 Avant (8D5) 1.6 1994 – 2002 1595 74 100
AUDI A4 B5 Avant (8D5) 1.8 1994 – 2002 1781 92 125
AUDI A4 B5 Avant (8D5) 1.8 T 1994 – 2002 1781 110 150
AUDI A4 B5 Avant (8D5) 2.6 1994 – 2002 2598 110 150
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 66 90
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 81 110
AUDI A4 B5 Avant (8D5) 1.8 quattro 1994 – 2002 1781 92 125
AUDI A4 B5 Avant (8D5) 1.8 T quattro 1994 – 2002 1781 110 150
AUDI A4 B5 Avant (8D5) 2.6 quattro 1994 – 2002 2598 110 150
AUDI A4 B5 Avant (8D5) 2.8 1994 – 2002 2771 142 193
AUDI A4 B5 Avant (8D5) RS4 quattro 1994 – 2002 2671 280 380
AUDI A4 B5 Avant (8D5) 1.9 TDI quattro 1994 – 2002 1896 81 110
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 121 165
AUDI A4 B5 Avant (8D5) 2.4 quattro 1994 – 2002 2393 121 165
AUDI A4 B5 Avant (8D5) S4 quattro 1994 – 2002 2671 195 265
AUDI A4 B5 Avant (8D5) 2.5 TDI 1994 – 2002 2496 110 150
AUDI A4 B5 Avant (8D5) 2.5 TDI quattro 1994 – 2002 2496 110 150
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 85 115
AUDI A4 B5 Avant (8D5) 1.8 T quattro 1994 – 2002 1781 132 180
AUDI A4 B5 Avant (8D5) 1.8 T 1994 – 2002 1781 132 180
AUDI A4 B5 Avant (8D5) 1.9 TDI quattro 1994 – 2002 1896 85 115
