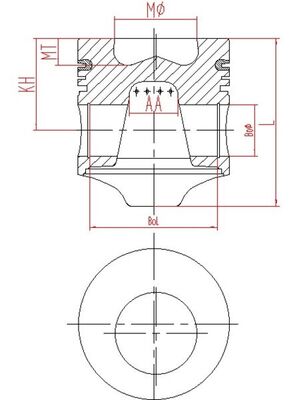

Specifications
| Bolt Head Diameter (mm) | 34 |
| Bolt Length (mm) | 83.9 |
| Compression Height (mm) | 60.7 |
| Cylinder Bore (mm) | 100 |
| Length (mm) | 111 |
| Recess Depth 1 (mm) | 17.5 |
| Recess Diameter (mm) | 54.5 |
| Supplementary Article/Info 2 with piston ring carrier | |
| Supplementary Article/Info 2 without cooling duct | |
Bolt Head Diameter [mm] 34, Bolt Length [mm] 83,9, Compression Height [mm] 60,7, Cylinder Bore [mm] 100, Length [mm] 111, Recess Depth 1 [mm] 17,5, Recess Diameter [mm] 54,5, Supplementary Article/Info 2 with piston ring carrier, Supplementary Article/Info 2 without cooling duct
