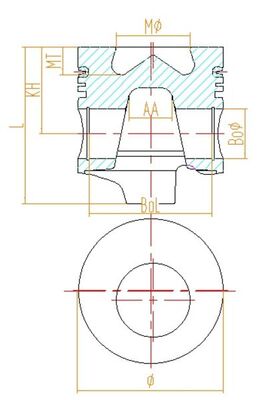

Specifications
| Bolt Head Diameter (mm) | 36.0 |
| Bolt Length (mm) | 87.9 |
| Compression Height (mm) | 62.2 |
| Cylinder Bore (mm) | 104 |
| Length (mm) | 112.2 |
| Recess Depth 1 (mm) | 20.0 |
| Recess Diameter (mm) | 60.2 |
| Supplementary Article/Info 2 with piston ring carrier | |
| Supplementary Article/Info 2 without cooling duct | |
| Surface Tin-plated | |
| Valve Pocket Depth 1 (mm) | 0 |
| Valve Pocket Depth 2 (mm) | 0 |
Bolt Head Diameter [mm] 36,0, Bolt Length [mm] 87,9, Compression Height [mm] 62,2, Cylinder Bore [mm] 104, Length [mm] 112,2, Recess Depth 1 [mm] 20,0, Recess Diameter [mm] 60,2, Supplementary Article/Info 2 with piston ring carrier, Supplementary Article/Info 2 without cooling duct, Surface Tin-plated, Valve Pocket Depth 1 [mm] 0, Valve Pocket Depth 2 [mm] 0
