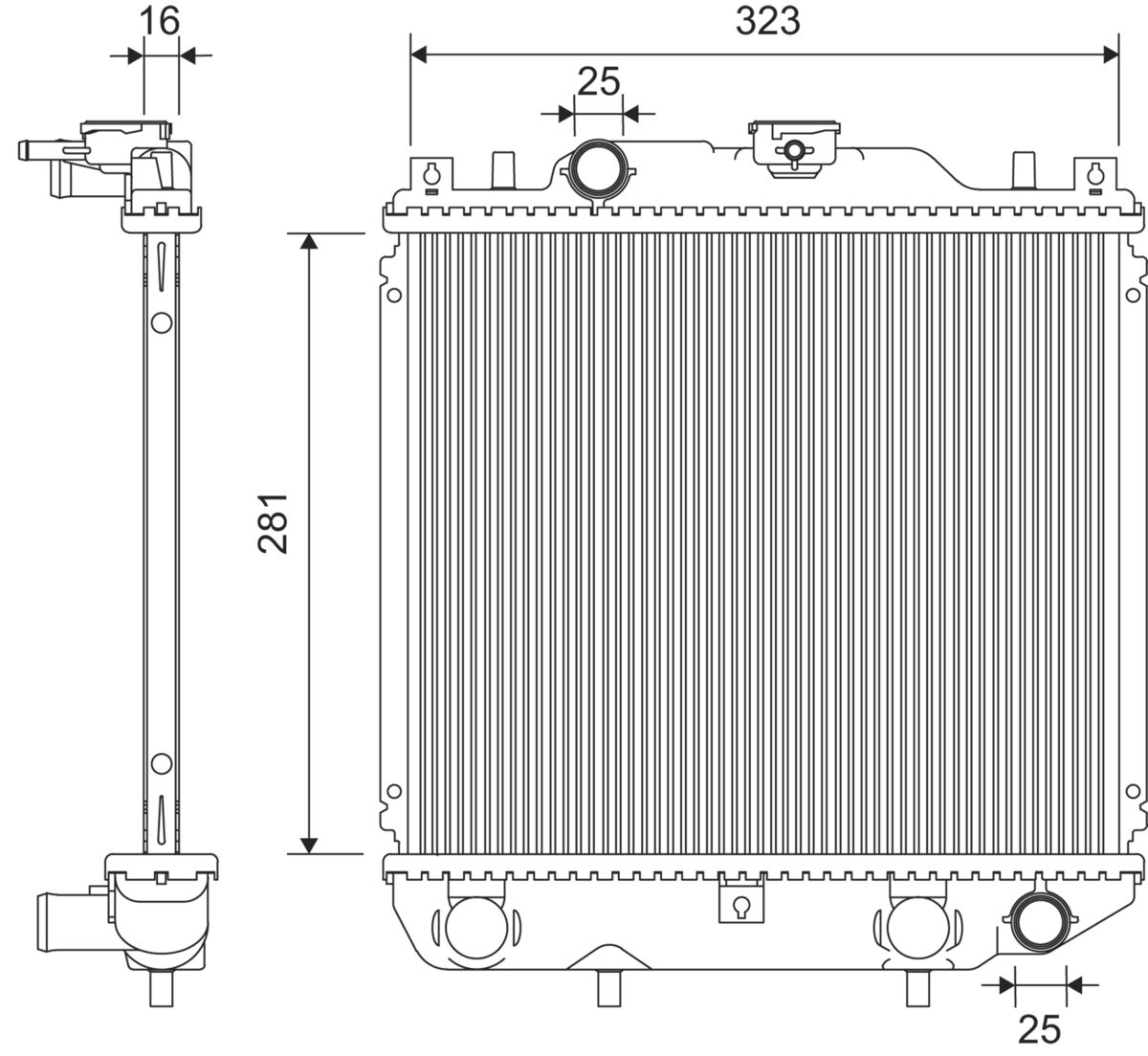

Specifications
| Core Depth (mm) | 16 |
| Core Length (mm) | 281 |
| Core Width (mm) | 323 |
| Heating/Cooling for vehicles without oil cooler | |
| Housing Type Metal Housing | |
| Inlet Ø (mm) | 25 |
| Material Aluminium | |
| Outlet Ø (mm) | 25 |
| Radiator type Brazed cooling fins | |
| Supplementary Article/Info 2 without coolant regulator | |
| Weight (kg) | 2.07 |
Core Depth [mm] 16, Core Length [mm] 281, Core Width [mm] 323, Heating/Cooling for vehicles without oil cooler, Housing Type Metal Housing, Inlet Ø [mm] 25, Material Aluminium, Outlet Ø [mm] 25, Radiator type Brazed cooling fins, Supplementary Article/Info 2 without coolant regulator, Weight [kg] 2,07
