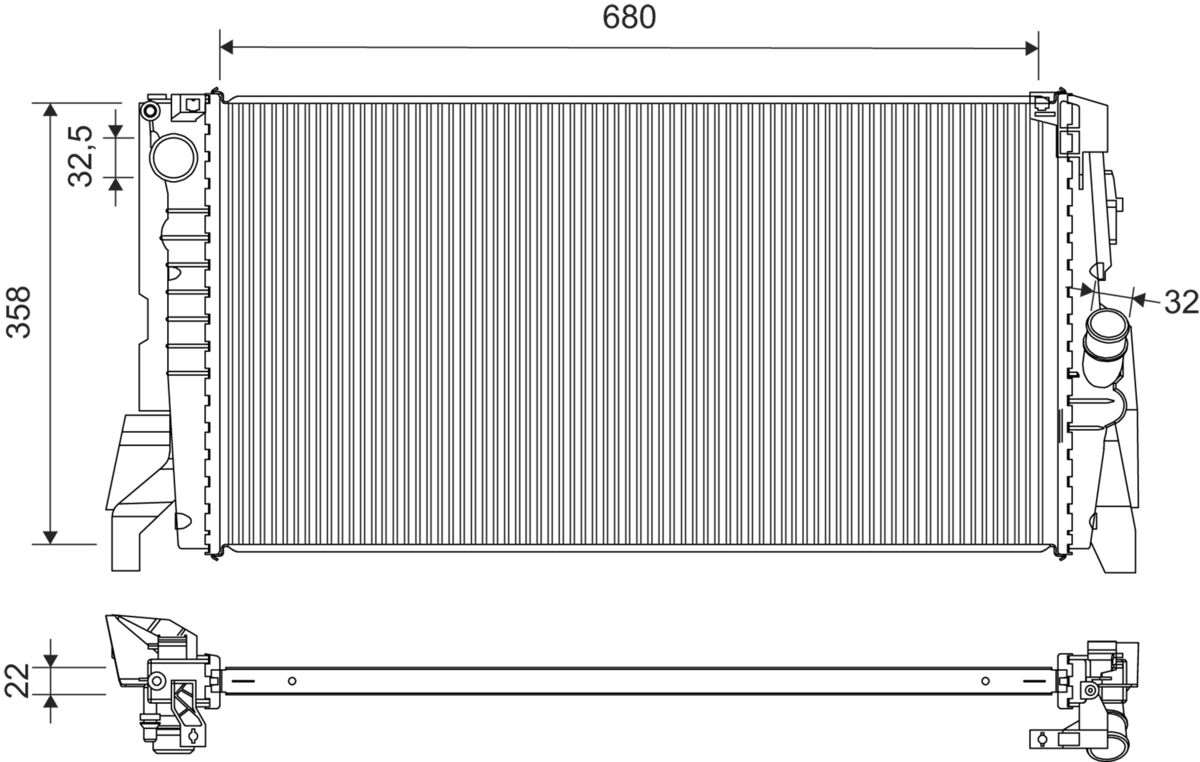

Specifications
| Core Depth (mm) | 22 |
| Core Length (mm) | 358 |
| Core Width (mm) | 680 |
| Heating/Cooling for vehicles without oil cooler | |
| Housing Type Metal Housing | |
| Inlet Ø (mm) | 32.5 |
| Material Aluminium | |
| Outlet Ø (mm) | 32 |
| Radiator type Brazed cooling fins | |
| Supplementary Article/Info 2 without coolant regulator | |
| Weight (kg) | 3.98 |
Core Depth [mm] 22, Core Length [mm] 358, Core Width [mm] 680, Heating/Cooling for vehicles without oil cooler, Housing Type Metal Housing, Inlet Ø [mm] 32,5, Material Aluminium, Outlet Ø [mm] 32, Radiator type Brazed cooling fins, Supplementary Article/Info 2 without coolant regulator, Weight [kg] 3,98
Fits: BMW, MINI
Fits: BMW, MINI
Interchangeable Part Numbers
OE Numbers — BMW (BRILLIANCE) 17 11 7 617
OE Numbers — BMW (BRILLIANCE)
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | 2 Active Tourer (F45) | 225 i | 2013 – 2021 | 1998 | 170 | 231 |
| BMW | 2 Active Tourer (F45) | 220 i | 2013 – 2021 | 1998 | 120 | 163 |
| BMW | 2 Active Tourer (F45) | 220 d xDrive | 2013 – 2021 | 1995 | 120 | 163 |
| BMW | 2 Active Tourer (F45) | 220 d | 2013 – 2021 | 1995 | 120 | 163 |
| BMW | 2 Active Tourer (F45) | 218 d | 2013 – 2021 | 1995 | 100 | 136 |
| BMW | 2 Active Tourer (F45) | 216 i | 2013 – 2021 | 1499 | 75 | 102 |
| BMW | 2 Active Tourer (F45) | 225 xe Plug-in-Hybrid | 2013 – 2021 | 1499 | 165 | 224 |
| BMW | 2 Active Tourer (F45) | 218 d xDrive | 2013 – 2021 | 1995 | 110 | 150 |
| BMW | 2 Active Tourer (F45) | 218 d xDrive | 2013 – 2021 | 1995 | 100 | 136 |
| BMW | 2 Active Tourer (F45) | 220 i Flex | 2013 – 2021 | 1998 | 141 | 192 |
| BMW | 2 Active Tourer (F45) | 216 i | 2013 – 2021 | 1499 | 80 | 109 |
| BMW | 2 Active Tourer (F45) | 218 i | 2013 – 2021 | 1499 | 103 | 140 |
| BMW | 2 Active Tourer (F45) | 220 i | 2013 – 2021 | 1998 | 131 | 178 |
| BMW | 2 Active Tourer (F45) | 218 d | 2013 – 2021 | 1995 | 110 | 150 |
| BMW | 2 Active Tourer (F45) | 216 d | 2013 – 2021 | 1496 | 85 | 116 |
| BMW | 2 Active Tourer (F45) | 220 d | 2013 – 2021 | 1995 | 140 | 190 |
| BMW | 2 Active Tourer (F45) | 220 d xDrive | 2013 – 2021 | 1995 | 140 | 190 |
| BMW | 2 Active Tourer (F45) | 220 i | 2013 – 2021 | 1998 | 141 | 192 |
| BMW | 2 Active Tourer (F45) | 225 i xDrive | 2013 – 2021 | 1998 | 170 | 231 |
| BMW | 2 Active Tourer (F45) | 214 d | 2013 – 2021 | 1496 | 70 | 95 |
| BMW | 2 Active Tourer (F45) | 218 i | 2013 – 2021 | 1499 | 100 | 136 |
| BMW | 2 Active Tourer (F45) | 225 xe Plug-in-Hybrid | 2013 – 2021 | 1499 | 162 | 220 |
| BMW | 2 Gran Tourer (F46) | 218 d xDrive | 2014 – present | 1995 | 110 | 150 |
| BMW | 2 Gran Tourer (F46) | 218 d xDrive | 2014 – present | 1995 | 100 | 136 |
| BMW | 2 Gran Tourer (F46) | 218 i | 2014 – present | 1499 | 103 | 140 |
| BMW | 2 Gran Tourer (F46) | 220 d xDrive | 2014 – present | 1995 | 120 | 163 |
| BMW | 2 Gran Tourer (F46) | 216 i | 2014 – present | 1499 | 80 | 109 |
| BMW | 2 Gran Tourer (F46) | 220 i | 2014 – present | 1998 | 131 | 178 |
| BMW | 2 Gran Tourer (F46) | 220 d | 2014 – present | 1995 | 120 | 163 |
| BMW | 2 Gran Tourer (F46) | 216 i | 2014 – present | 1499 | 75 | 102 |
| BMW | 2 Gran Tourer (F46) | 218 i | 2014 – present | 1499 | 100 | 136 |
| BMW | 2 Gran Tourer (F46) | 220 i | 2014 – present | 1998 | 141 | 192 |
| BMW | 2 Gran Tourer (F46) | 216 d | 2014 – present | 1496 | 85 | 116 |
| BMW | 2 Gran Tourer (F46) | 218 d | 2014 – present | 1995 | 110 | 150 |
| BMW | 2 Gran Tourer (F46) | 220 d xDrive | 2014 – present | 1995 | 140 | 190 |
| BMW | 2 Gran Tourer (F46) | 218 d | 2014 – present | 1995 | 100 | 136 |
| BMW | 2 Gran Tourer (F46) | 214 d | 2014 – present | 1496 | 70 | 95 |
| BMW | 2 Gran Tourer (F46) | 220 d | 2014 – present | 1995 | 140 | 190 |
| BMW | 2 Gran Tourer (F46) | 220 i | 2014 – present | 1998 | 120 | 163 |
| BMW | X1 (F48) | sDrive 18 d | 2014 – 2022 | 1995 | 110 | 150 |
| BMW | X1 (F48) | xDrive 20 d | 2014 – 2022 | 1995 | 140 | 190 |
| BMW | X1 (F48) | sDrive 20 i | 2014 – 2022 | 1998 | 141 | 192 |
| BMW | X1 (F48) | xDrive 20 i | 2014 – 2022 | 1998 | 131 | 178 |
| BMW | X1 (F48) | sDrive 20 i | 2014 – 2022 | 1998 | 131 | 178 |
| BMW | X1 (F48) | sDrive 20 i ActiveFlex | 2014 – 2022 | 1998 | 141 | 192 |
| BMW | X1 (F48) | xDrive 25 i ActiveFlex | 2014 – 2022 | 1998 | 170 | 231 |
| BMW | X1 (F48) | xDrive 25 e Plug-in-Hybrid | 2014 – 2022 | 1499 | 162 | 220 |
| BMW | X1 (F48) | sDrive 18 d | 2014 – 2022 | 1995 | 100 | 136 |
| BMW | X1 (F48) | xDrive 20 d | 2014 – 2022 | 1995 | 120 | 163 |
| BMW | X1 (F48) | xDrive 18 d | 2014 – 2022 | 1995 | 110 | 150 |
| BMW | X1 (F48) | xDrive 25 d | 2014 – 2022 | 1995 | 170 | 231 |
| BMW | X1 (F48) | sDrive 16 d | 2014 – 2022 | 1496 | 85 | 116 |
| BMW | X1 (F48) | sDrive 20 d | 2014 – 2022 | 1995 | 120 | 163 |
| BMW | X1 (F48) | xDrive 18 d | 2014 – 2022 | 1995 | 100 | 136 |
| BMW | X1 (F48) | xDrive 25 i | 2014 – 2022 | 1998 | 170 | 231 |
| BMW | X1 (F48) | sDrive 18 i | 2014 – 2022 | 1499 | 100 | 136 |
| BMW | X1 (F48) | sDrive 20 d | 2014 – 2022 | 1995 | 140 | 190 |
| BMW | X1 (F48) | sDrive 18 i | 2014 – 2022 | 1499 | 103 | 140 |
| BMW | X1 (F48) | xDrive 20 i | 2014 – 2022 | 1998 | 141 | 192 |
| BMW | X1 (F48) | sDrive 28 i | 2014 – 2022 | 1998 | 170 | 231 |
| BMW | X2 (F39) | sDrive 20 d | 2017 – 2023 | 1995 | 120 | 163 |
| BMW | X2 (F39) | M35 i | 2017 – 2023 | 1998 | 225 | 306 |
| BMW | X2 (F39) | sDrive 18 i ActiveFlex | 2017 – 2023 | 1499 | 100 | 136 |
| BMW | X2 (F39) | sDrive 20 i ActiveFlex | 2017 – 2023 | 1998 | 141 | 192 |
| BMW | X2 (F39) | xDrive 25 e Plug-in-Hybrid | 2017 – 2023 | 1499 | 162 | 220 |
| BMW | X2 (F39) | sDrive 20 i | 2017 – 2023 | 1998 | 131 | 178 |
| BMW | X2 (F39) | xDrive 20 i | 2017 – 2023 | 1998 | 131 | 178 |
| BMW | X2 (F39) | sDrive 16 d | 2017 – 2023 | 1496 | 85 | 116 |
| BMW | X2 (F39) | xDrive 20 d | 2017 – 2023 | 1995 | 140 | 190 |
| BMW | X2 (F39) | sDrive 20 d | 2017 – 2023 | 1995 | 140 | 190 |
| BMW | X2 (F39) | xDrive 18 d | 2017 – 2023 | 1995 | 100 | 136 |
| BMW | X2 (F39) | sDrive 18 d | 2017 – 2023 | 1995 | 100 | 136 |
| BMW | X2 (F39) | sDrive 18 i | 2017 – 2023 | 1499 | 100 | 136 |
| BMW | X2 (F39) | sDrive 18 d | 2017 – 2023 | 1995 | 110 | 150 |
| BMW | X2 (F39) | sDrive 28 i | 2017 – 2023 | 1998 | 170 | 231 |
| BMW | X2 (F39) | xDrive 20 i | 2017 – 2023 | 1998 | 141 | 192 |
| BMW | X2 (F39) | sDrive 18 i | 2017 – 2023 | 1499 | 103 | 140 |
| BMW | X2 (F39) | sDrive 20 i | 2017 – 2023 | 1998 | 141 | 192 |
| BMW | X2 (F39) | xDrive 20 d | 2017 – 2023 | 1995 | 120 | 163 |
| BMW | X2 (F39) | xDrive 28 i | 2017 – 2023 | 1998 | 170 | 231 |
| BMW | X2 (F39) | xDrive 18 d | 2017 – 2023 | 1995 | 110 | 150 |
| BMW | X2 (F39) | xDrive 25 d | 2017 – 2023 | 1995 | 170 | 231 |
