Specifications

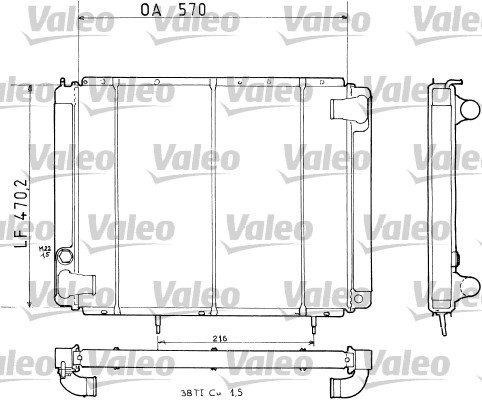

| Core Depth (mm) | 38 |
| Core Length (mm) | 570 |
| Core Width (mm) | 470 |
| Heating/Cooling for vehicles without oil cooler | |
| Housing Type Synthetic Material Housing | |
| Inlet Ø (mm) | 40 |
| Material Copper | |
| Outlet Ø (mm) | 40 |
| Supplementary Article/Info 2 without coolant regulator | |
| Weight (kg) | 9.09 |
Core Depth [mm] 38, Core Length [mm] 570, Core Width [mm] 470, Heating/Cooling for vehicles without oil cooler, Housing Type Synthetic Material Housing, Inlet Ø [mm] 40, Material Copper, Outlet Ø [mm] 40, Supplementary Article/Info 2 without coolant regulator, Weight [kg] 9,09
