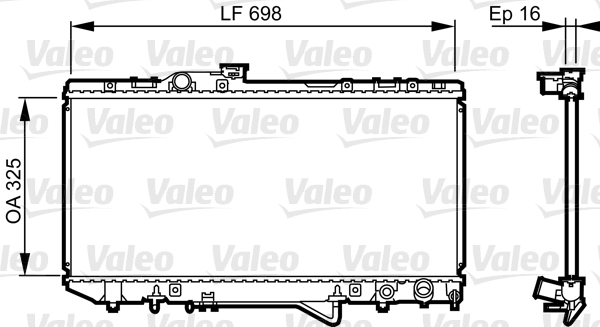

Specifications
| Core Depth (mm) | 16 |
| Core Length (mm) | 325 |
| Core Width (mm) | 698 |
| Heating/Cooling for vehicles with oil cooler | |
| Housing Type Synthetic Material Housing | |
| Inlet Ø (mm) | 31 |
| Material Aluminium | |
| Outlet Ø (mm) | 31 |
| Weight (kg) | 4.18 |
Core Depth [mm] 16, Core Length [mm] 325, Core Width [mm] 698, Heating/Cooling for vehicles with oil cooler, Housing Type Synthetic Material Housing, Inlet Ø [mm] 31, Material Aluminium, Outlet Ø [mm] 31, Weight [kg] 4,18
