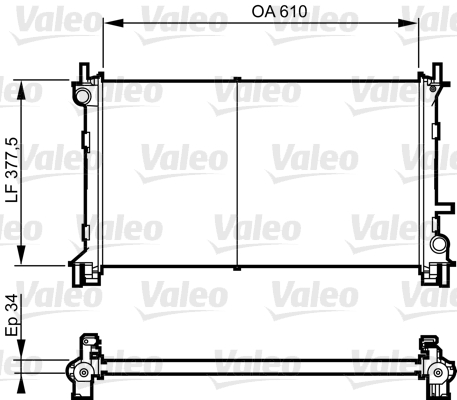

Specifications
| Core Depth (mm) | 34 |
| Core Length (mm) | 610 |
| Core Width (mm) | 378 |
| Heating/Cooling for vehicles without oil cooler | |
| Housing Type Synthetic Material Housing | |
| Inlet Ø (mm) | 33 |
| Material Aluminium | |
| Outlet Ø (mm) | 33 |
| Supplementary Article/Info 2 without coolant regulator | |
| Weight (kg) | 6.16 |
Core Depth [mm] 34, Core Length [mm] 610, Core Width [mm] 378, Heating/Cooling for vehicles without oil cooler, Housing Type Synthetic Material Housing, Inlet Ø [mm] 33, Material Aluminium, Outlet Ø [mm] 33, Supplementary Article/Info 2 without coolant regulator, Weight [kg] 6,16
