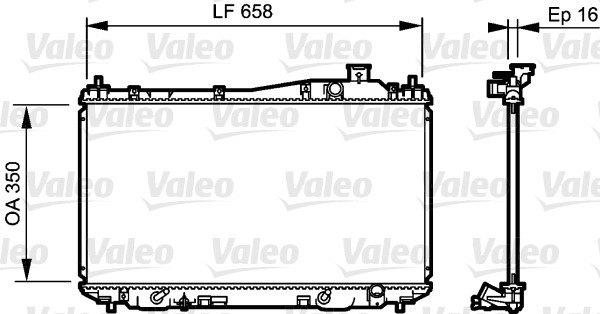

Specifications
| Core Depth (mm) | 16 |
| Core Length (mm) | 350 |
| Core Width (mm) | 658 |
| Heating/Cooling for vehicles without oil cooler | |
| Housing Type Synthetic Material Housing | |
| Inlet Ø (mm) | 29 |
| Material Aluminium | |
| Outlet Ø (mm) | 29 |
| Supplementary Article/Info 2 without coolant regulator | |
| Weight (kg) | 3.46 |
| Weight (kg) | 4.99 |
Core Depth [mm] 16, Core Length [mm] 350, Core Width [mm] 658, Heating/Cooling for vehicles without oil cooler, Housing Type Synthetic Material Housing, Inlet Ø [mm] 29, Material Aluminium, Outlet Ø [mm] 29, Supplementary Article/Info 2 without coolant regulator, Weight [kg] 3,46, Weight [kg] 4,99
Fits: HONDA, MERCEDES-BENZ
Fits: HONDA, MERCEDES-BENZ
Interchangeable Part Numbers
OE Numbers — HONDA
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | 124 T-Model (S124) | 320 TE (124.092) | 1985 – 1993 | 3199 | 162 | 220 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 T Turbo-D 4-matic (124.393) | 1985 – 1993 | 2996 | 105 | 143 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 T Turbo-D 4-matic (124.393) | 1985 – 1993 | 2996 | 108 | 147 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 TE-24 (124.091) | 1985 – 1993 | 2960 | 162 | 220 |
| MERCEDES-BENZ | 124 T-Model (S124) | 260 TE FGST. | 1985 – 1993 | 2597 | 118 | 160 |
| MERCEDES-BENZ | 124 T-Model (S124) | 260 TE FGST. | 1985 – 1993 | 2597 | 122 | 166 |
| MERCEDES-BENZ | 124 T-Model (S124) | 220 TE (124.082) | 1985 – 1993 | 2199 | 110 | 150 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 T Turbo-D | 1985 – 1993 | 2996 | 105 | 143 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 T Turbo-D (124.193) | 1985 – 1993 | 2996 | 108 | 147 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 T D (124.190) | 1985 – 1993 | 2996 | 83 | 113 |
| MERCEDES-BENZ | 124 T-Model (S124) | 280 TE (124.088) | 1985 – 1993 | 2799 | 145 | 197 |
| MERCEDES-BENZ | 124 T-Model (S124) | 200 TE (124.079) | 1985 – 1993 | 1998 | 100 | 136 |
| MERCEDES-BENZ | 124 T-Model (S124) | 230 TE (124.083) | 1985 – 1993 | 2298 | 97 | 132 |
| MERCEDES-BENZ | 124 T-Model (S124) | 200 T | 1985 – 1993 | 1997 | 77 | 105 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 TD T | 1985 – 1993 | 2996 | 100 | 136 |
| MERCEDES-BENZ | 124 T-Model (S124) | 250 TD Turbo (124.188) | 1985 – 1993 | 2497 | 93 | 126 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 TE-24 (124.091) | 1985 – 1993 | 2960 | 170 | 231 |
| MERCEDES-BENZ | 124 T-Model (S124) | 200 T (124.080) | 1985 – 1993 | 1996 | 77 | 105 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 T D (124.190) | 1985 – 1993 | 2996 | 81 | 110 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 T D (124.190) | 1985 – 1993 | 2996 | 80 | 109 |
| MERCEDES-BENZ | 124 T-Model (S124) | 250 T D (124.185) | 1985 – 1993 | 2497 | 69 | 94 |
| MERCEDES-BENZ | 124 T-Model (S124) | 250 T D (124.185) | 1985 – 1993 | 2497 | 66 | 90 |
| MERCEDES-BENZ | 124 T-Model (S124) | 200 T D (124.180) | 1985 – 1993 | 1997 | 55 | 75 |
| MERCEDES-BENZ | 124 T-Model (S124) | 200 T D (124.180) | 1985 – 1993 | 1997 | 53 | 72 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 TE 4-matic (124.290) | 1985 – 1993 | 2960 | 138 | 188 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 TE (124.090) | 1985 – 1993 | 2960 | 138 | 188 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 TE (124.090) | 1985 – 1993 | 2960 | 132 | 180 |
| MERCEDES-BENZ | 124 T-Model (S124) | 300 TE 4-matic (124.290) | 1985 – 1993 | 2960 | 132 | 180 |
| MERCEDES-BENZ | 124 T-Model (S124) | 230 TE (124.083) | 1985 – 1993 | 2298 | 100 | 136 |
| MERCEDES-BENZ | 124 T-Model (S124) | 230 TE Cat (124.083) | 1985 – 1993 | 2298 | 97 | 132 |
| MERCEDES-BENZ | 124 T-Model (S124) | 200 TE | 1985 – 1993 | 1996 | 90 | 122 |
| MERCEDES-BENZ | 124 T-Model (S124) | 200 TE (124.081) | 1985 – 1993 | 1996 | 87 | 118 |
| MERCEDES-BENZ | 124 T-Model (S124) | 200 T (124.080) | 1985 – 1993 | 1996 | 80 | 109 |
