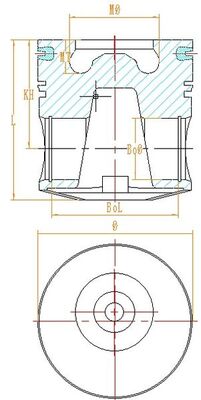

Specifications
| Bolt Head Diameter (mm) | 40.0 |
| Bolt Length (mm) | 83.1 |
| Compression Height (mm) | 71.6 |
| Cylinder Bore (mm) | 102 |
| Length (mm) | 105.5 |
| Recess Depth 1 (mm) | 22.0 |
| Recess Diameter (mm) | 59.6 |
| Supplementary Article/Info 2 with piston ring carrier | |
| Supplementary Article/Info 2 without cooling duct | |
Bolt Head Diameter [mm] 40,0, Bolt Length [mm] 83,1, Compression Height [mm] 71,6, Cylinder Bore [mm] 102, Length [mm] 105,5, Recess Depth 1 [mm] 22,0, Recess Diameter [mm] 59,6, Supplementary Article/Info 2 with piston ring carrier, Supplementary Article/Info 2 without cooling duct
