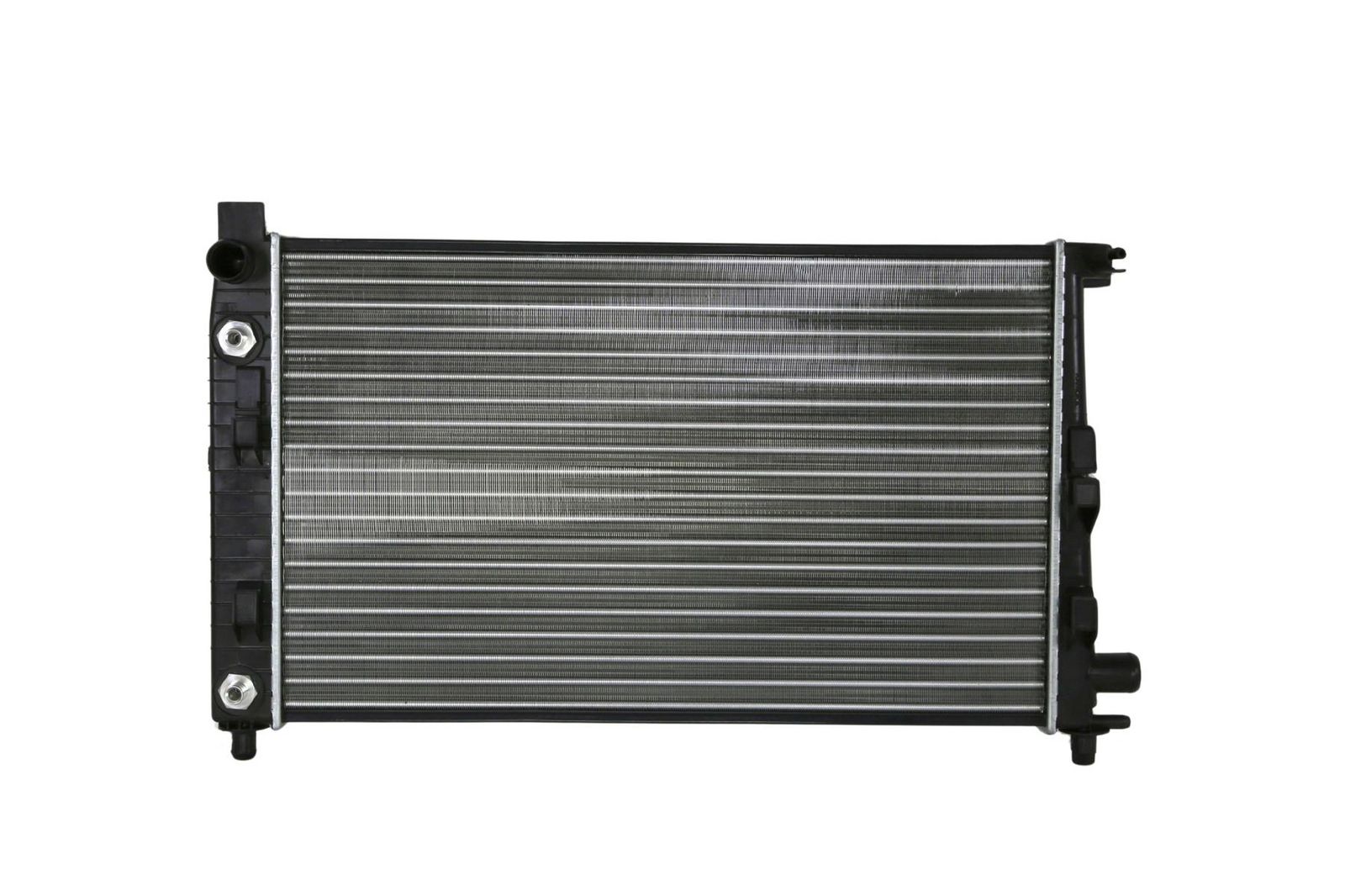

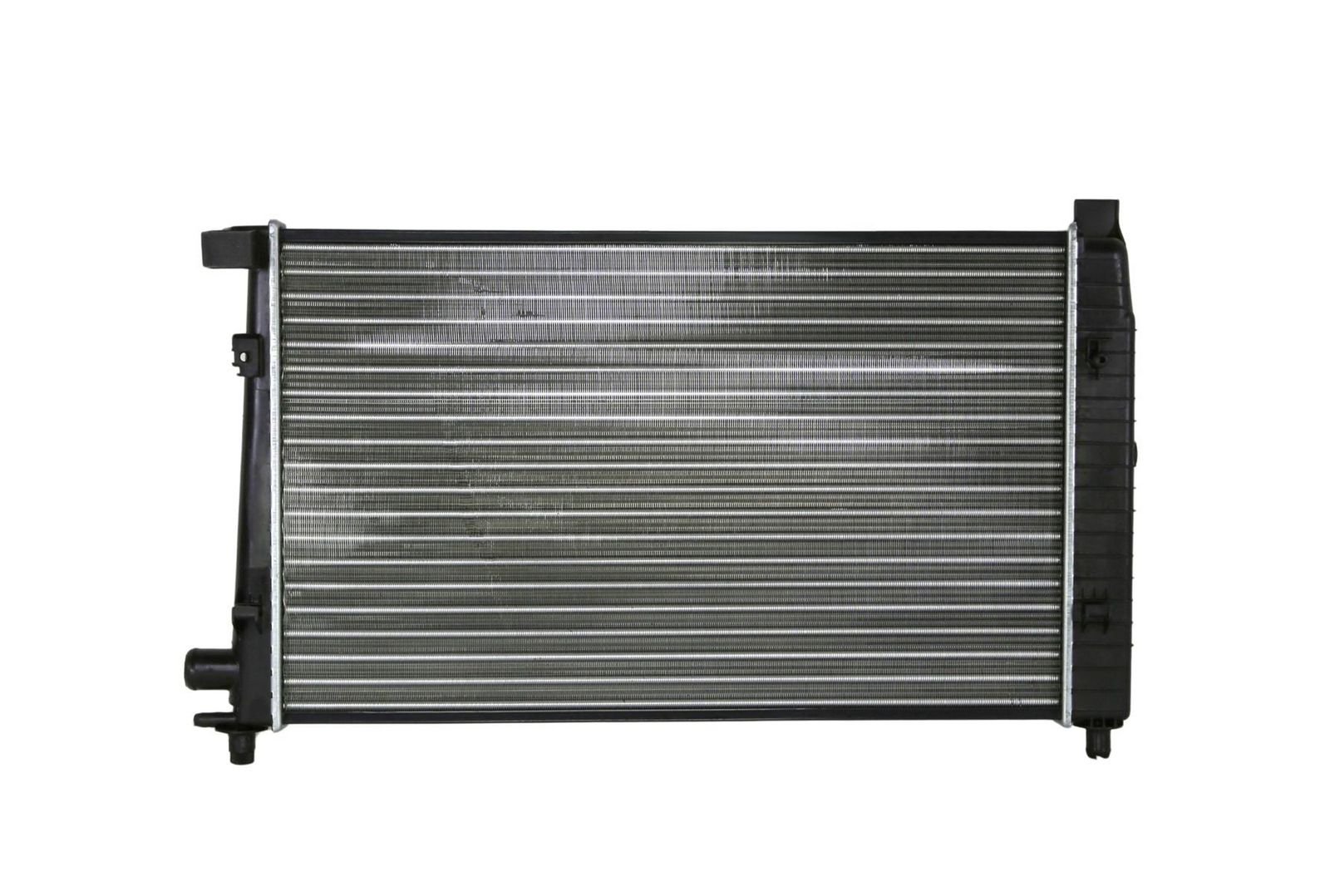

Specifications
| Core Depth (mm) | 24 |
| Core Length (mm) | 600 |
| Core Width (mm) | 359 |
| Material Aluminium | |
| Radiator type Mechanically jointed cooling fins | |
Core Depth [mm] 24, Core Length [mm] 600, Core Width [mm] 359, Material Aluminium, Radiator type Mechanically jointed cooling fins
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
Interchangeable Part Numbers
OE Numbers — MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | A-CLASS (W168) | A 140 (168.031, 168.131) | 1997 – 2005 | 1397 | 60 | 82 |
| MERCEDES-BENZ | A-CLASS (W168) | A 160 (168.033, 168.133) | 1997 – 2005 | 1598 | 75 | 102 |
| MERCEDES-BENZ | A-CLASS (W168) | A 160 CDI (168.007) | 1997 – 2005 | 1689 | 44 | 60 |
| MERCEDES-BENZ | A-CLASS (W168) | A 170 CDI (168.008) | 1997 – 2005 | 1689 | 66 | 90 |
| MERCEDES-BENZ | A-CLASS (W168) | A 190 (168.032, 168.132) | 1997 – 2005 | 1898 | 92 | 125 |
| MERCEDES-BENZ | A-CLASS (W168) | A 160 CDI (168.006) | 1997 – 2005 | 1689 | 55 | 75 |
| MERCEDES-BENZ | A-CLASS (W168) | A 170 CDI (168.009, 168.109) | 1997 – 2005 | 1689 | 70 | 95 |
| MERCEDES-BENZ | A-CLASS (W168) | A 140 (168.031, 168.131) | 1997 – 2005 | 1598 | 60 | 82 |
| MERCEDES-BENZ | A-CLASS (W168) | A 210 (168.035, 168.135) | 1997 – 2005 | 2084 | 103 | 140 |
| MERCEDES-BENZ | A-CLASS (W168) | A 38 AMG Twin Engine (168.032) | 1997 – 2005 | 1898 | 184 | 250 |
| MERCEDES-BENZ | VANEO (414) | 1.7 CDI (414.700) | 2002 – 2005 | 1689 | 55 | 75 |
| MERCEDES-BENZ | VANEO (414) | 1.6 (414.700) | 2002 – 2005 | 1598 | 75 | 102 |
| MERCEDES-BENZ | VANEO (414) | 1.6 (414.700) | 2002 – 2005 | 1598 | 60 | 82 |
| MERCEDES-BENZ | VANEO (414) | 1.9 (414.700) | 2002 – 2005 | 1898 | 92 | 125 |
| MERCEDES-BENZ | VANEO (414) | 1.7 CDI (414.700) | 2002 – 2005 | 1689 | 67 | 91 |
