Workshop Devices

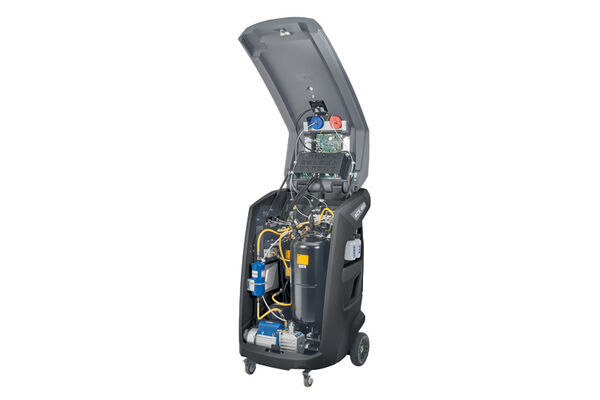

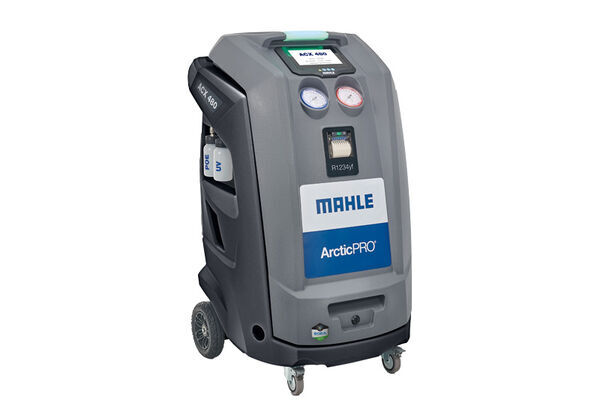

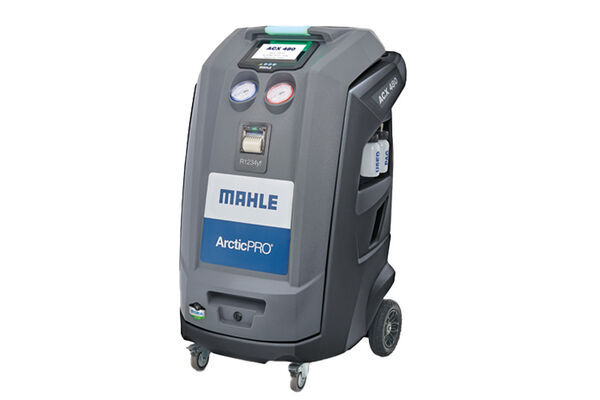

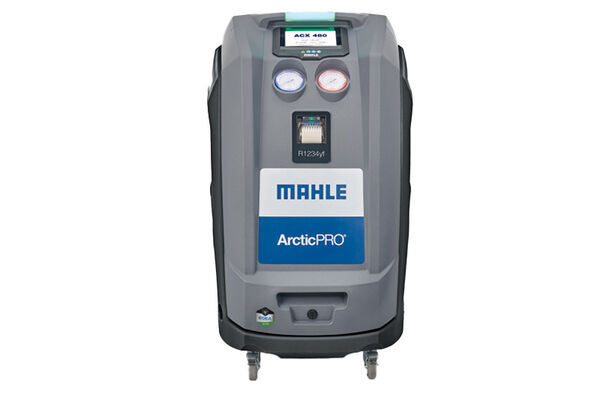

Service Unit, air conditioning

Part No. ACX 480 · SKU ACX 480-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Air conditioning flush function Yes
Air conditioning oil filling Automatic
Connector/Clamp with USB socket
Depth (mm)720
Energy Consumption (kWh)0.8
Enter evacuation time Automatic
Evacuation Automatic
Filling Hose Length (m)4.5
Flow rate (l/h)50
Frequency Range (Hz)50
Fresh oil load cell Yes
Fresh oil tank capacity (ml)500
Guarantee 2 years guarantee
Height (mm)1090
Information Transfer Bluetooth
Leak detector fluid filling Automatic
Air conditioning flush function Yes, Air conditioning oil filling Automatic, Connector/Clamp with USB socket, Depth [mm] 720, Energy Consumption [kWh] 0,8, Enter evacuation time Automatic, Evacuation Automatic, Filling Hose Length [m] 4,5, Flow rate [l/h] 50, Frequency Range [Hz] 50, Fresh oil load cell Yes, Fresh oil tank capacity [ml] 500, Guarantee 2 years guarantee, Height [mm] 1090, Information Transfer Bluetooth, Leak detector fluid filling Automatic, Mains Cable Length [m] 3, Nitrogen density test Yes, Oil Fill Quantity [ml] 100, Operating temperature from [°C] 10, Operating temperature to [C°] 50, Operating voltage from [V] 210, Operating voltage to [V] 250, Rated Power [W] 800, Refrigerant filling Automatic, Refrigerant R 1234yf, Refrigerant recycling Yes, Refrigerant tank capacity [l] 20, Release of non-condensable gasses Automatic, Screen Diagonal [inch] 7, Screen Display TFT, Screen Display Touchscreen, Temperature range from [°C] 10, Temperature range to [°C] 50, UV additive feed Automatic, Vacuum check Yes, Voltage [V] 230, Volumetric flow rate [l/min] 150, Waste oil draining Automatic, Waste oil load cell Yes, Waste oil tank capacity [ml] 500, Weight [kg] 74, Width [mm] 620
