Specifications

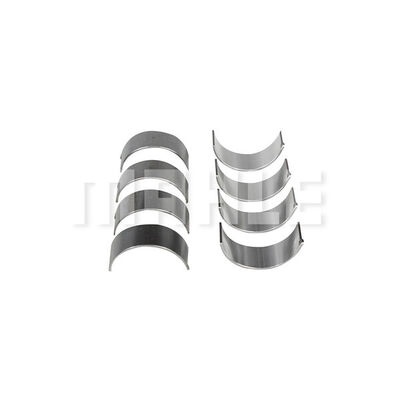

| Component Number 4BB-1064-S 0.50, for bearing clearance from (mm) | 0.023. for housing diameter from [mm] 62.433. for shaft diameter from [mm] 58.725. for wall thickness from [mm] 2.077. to bearing clearance [mm] 0.067. to housing diameter [mm] 62.446. to shaft diameter [mm] 58.744. to wall thickness [mm] 2.083 |
| Width from (mm) | 24.75 |
| Width to (mm) | 25.0 |
Component Number 4BB-1064-S 0.50, for bearing clearance from [mm] 0,023, for housing diameter from [mm] 62,433, for shaft diameter from [mm] 58,725, for wall thickness from [mm] 2,077, to bearing clearance [mm] 0,067, to housing diameter [mm] 62,446, to shaft diameter [mm] 58,744, to wall thickness [mm] 2,083, Width from [mm] 24,75, Width to [mm] 25,0
