Brake Drum
Brake Drum 1 Brake Drum 2 Brake Drum 3
Braking System

Brake Drum

Part No. BF284 · SKU BF284-DELPHI
Rear Axle
₱28,200.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

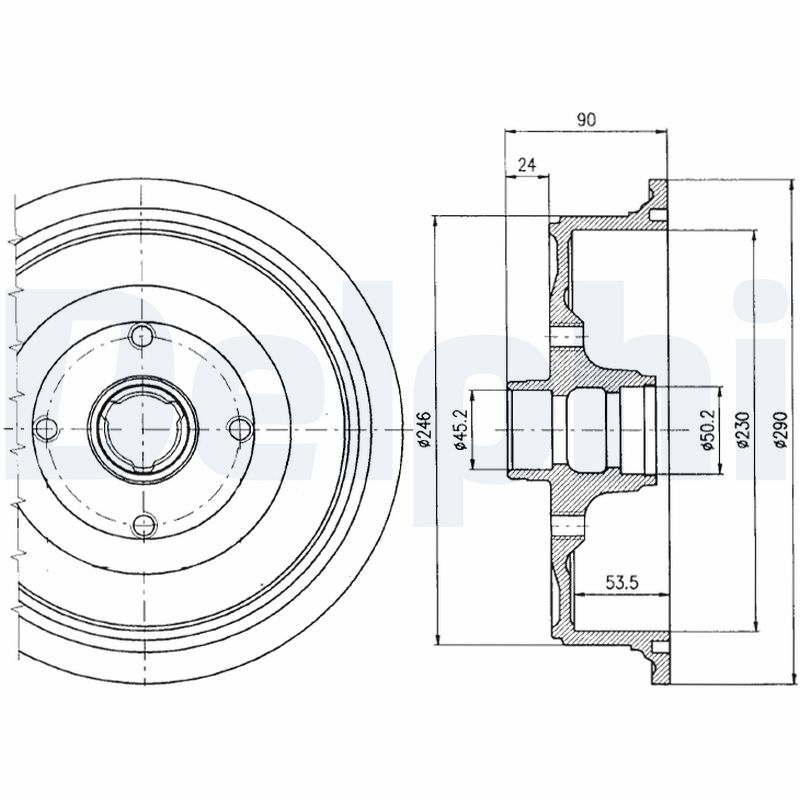

Specifications

Inner brake drum diameter (mm)230
Inner brake drum height (mm)54
Total brake drum height (mm)90
Inner brake drum diameter [mm] 230, Inner brake drum height [mm] 54, Total brake drum height [mm] 90
Fits: AUDI

Supplier Cross-References

DELPHIBF284 FERODOFDR329133 ATE24022300071 BREMBO14559810 TRWDB4083 BOSCH986477029

Interchangeable Part Numbers

A.B.S.2322-S A.B.S.2326-S AP55131 ATE-CN24-0223-0007-1-02 ATE-CN480037 BENDIX329133B BOSCHDB105 Brake ENGINEERING960210 Brake ENGINEERINGDR960210 CIFAM700-197 FEBI BILSTEIN14059 FEDERAL MOGULDR1301 FTEBT200 HP (ZEBRA)66259 JURID329133J KAGER36-0032 METELLI18-0197 MEYLE115 523 1113 MGATR7461 MINTEXMBD069 NationalNDR072 NK254713 NK254715 OMC100617 OPTIMALBT-0740 PAGID63902 PEX15.0092 QUINTON HAZELLBDR200 QUINTON HAZELLBTF200 REMSA707.4 00 SEBRO302327 TEXTAR94009200 TEXTAR98100 0085 TEXTAR98100 0092 TOPRAN103 693 TRISCAN8120 29204 WOKINGP7074.00 ZIMMERMANN100.1644.00

OE Numbers — AUDI

431501615 443 501 615A 443501615

OE Numbers — VW

431 501 615A
MakeModelType / Engine YearsCCkWHP
AUDI 100 C2 Avant (435, 436) 1.6 1977 – 1983 1588 63 85
AUDI 100 C2 Avant (435, 436) 2.1 1977 – 1983 2144 85 115
AUDI 100 C2 Avant (435, 436) 2.1 1977 – 1983 2144 100 136
AUDI 100 C2 Avant (435, 436) 2.0 D 1977 – 1983 1986 51 70
AUDI 100 C2 Avant (435, 436) 1.9 1977 – 1983 1921 74 100
AUDI 100 C2 Avant (435, 436) 2.0 1977 – 1983 1984 85 115
AUDI 100 C2 Saloon (431, 433, 434) 1.6 1976 – 1984 1588 63 85
AUDI 100 C2 Saloon (431, 433, 434) 1.9 1976 – 1984 1921 74 100
AUDI 100 C2 Saloon (431, 433, 434) 2.0 1976 – 1984 1984 85 115
AUDI 100 C2 Saloon (431, 433, 434) 2.1 1976 – 1984 2144 85 115
AUDI 100 C2 Saloon (431, 433, 434) 2.1 1976 – 1984 2144 100 136
AUDI 100 C2 Saloon (431, 433, 434) 2.0 D 1976 – 1984 1986 51 70
AUDI 100 C2 Saloon (431, 433, 434) 2.2 1976 – 1984 2144 79 107
AUDI 100 C2 Saloon (431, 433, 434) 1.9 1976 – 1984 1871 70 95
AUDI 100 C2 Saloon (431, 433, 434) 2.2 1976 – 1984 2144 75 102
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2144 79 107
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 82 112
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 118 160
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 96 131
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 97 132
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 117 159
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 55 75
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 1982 – 1990 1994 83 113
AUDI 100 C3 Avant (445, 446) 2.0 E Cat 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 100 136
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 85 115
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Turbo 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.0 D 1982 – 1990 1986 51 70
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 64 87
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 74 100
AUDI 100 C3 Avant (445, 446) 2.5 TDI 1982 – 1990 2461 88 120
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Turbo quattro 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.3 E quattro 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.3 quattro 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 E quattro 1982 – 1990 2226 88 120
AUDI 100 C3 Avant (445, 446) 2.4 D 1982 – 1990 2370 60 82
AUDI 100 C3 Avant (445, 446) 1.9 1982 – 1990 1921 74 100
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 Cat quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 E 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.2 Cat 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Cat quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 1.8 Cat 1982 – 1990 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 1.8 Cat 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.9 1982 – 1991 1921 74 100
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 83 113
AUDI 100 C3 Saloon (443, 444) 2.0 Cat 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 100 136
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Turbo 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 51 70
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 64 87
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 74 100
AUDI 100 C3 Saloon (443, 444) 2.5 TDI 1982 – 1991 2461 88 120
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 1.8 Cat quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 E Turbo quattro 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.3 E quattro 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 55 75
AUDI 100 C3 Saloon (443, 444) 2.4 D 1982 – 1991 2370 60 82
AUDI 100 C3 Saloon (443, 444) 2.2 E quattro 1982 – 1991 2226 88 120
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 Cat quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Cat 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 79 107
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 96 130
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 66 90
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2144 118 160
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.3 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 75 102
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 117 159
AUDI 80 B4 Avant (8C5) 2.0 quattro 1991 – 1996 1984 79 107
AUDI 80 B4 Avant (8C5) 2.0 1991 – 1996 1984 66 90
AUDI 80 B4 Avant (8C5) 2.0 E 1991 – 1996 1984 85 115
AUDI 80 B4 Avant (8C5) 2.0 E 16V 1991 – 1996 1984 103 140
AUDI 80 B4 Avant (8C5) 2.3 E 1991 – 1996 2309 98 133
AUDI 80 B4 Avant (8C5) 2.6 1991 – 1996 2598 110 150
AUDI 80 B4 Avant (8C5) S2 quattro 1991 – 1996 2226 169 230
AUDI 80 B4 Avant (8C5) 2.6 quattro 1991 – 1996 2598 110 150
AUDI 80 B4 Avant (8C5) 2.8 quattro 1991 – 1996 2771 128 174
AUDI 80 B4 Avant (8C5) RS2 quattro 1991 – 1996 2226 232 315
AUDI 80 B4 Avant (8C5) 2.3 E quattro 1991 – 1996 2309 98 133
AUDI 80 B4 Avant (8C5) 1.9 TDI 1991 – 1996 1896 66 90
AUDI 80 B4 Avant (8C5) 1.6 E 1991 – 1996 1595 74 101
AUDI 80 B4 Avant (8C5) 2.8 1991 – 1996 2771 128 174
AUDI 80 B4 Avant (8C5) 2.0 E 16V quattro 1991 – 1996 1984 103 140
AUDI 80 B4 Avant (8C5) 1.9 TD 1991 – 1996 1896 55 75
AUDI 80 B4 Saloon (8C2) 1.9 TD 1991 – 1995 1896 55 75
AUDI 80 B4 Saloon (8C2) 1.9 TDI 1991 – 1995 1896 66 90
AUDI 80 B4 Saloon (8C2) 1.6 1991 – 1995 1595 52 71
AUDI 80 B4 Saloon (8C2) 1.6 E 1991 – 1995 1595 74 101
AUDI 80 B4 Saloon (8C2) 2.0 1991 – 1995 1984 66 90
AUDI 80 B4 Saloon (8C2) 2.0 E 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.3 E 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 E 16V quattro 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.0 E quattro 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) S2 quattro 1991 – 1995 2226 169 230
AUDI 80 B4 Saloon (8C2) 2.3 E quattro 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 quattro 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 quattro 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 101 137
AUDI 80 B4 Saloon (8C2) 2.0 quattro 1991 – 1995 1984 79 107
