Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG2623 · SKU BG2623-DELPHI
Front Axle
₱24,700.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

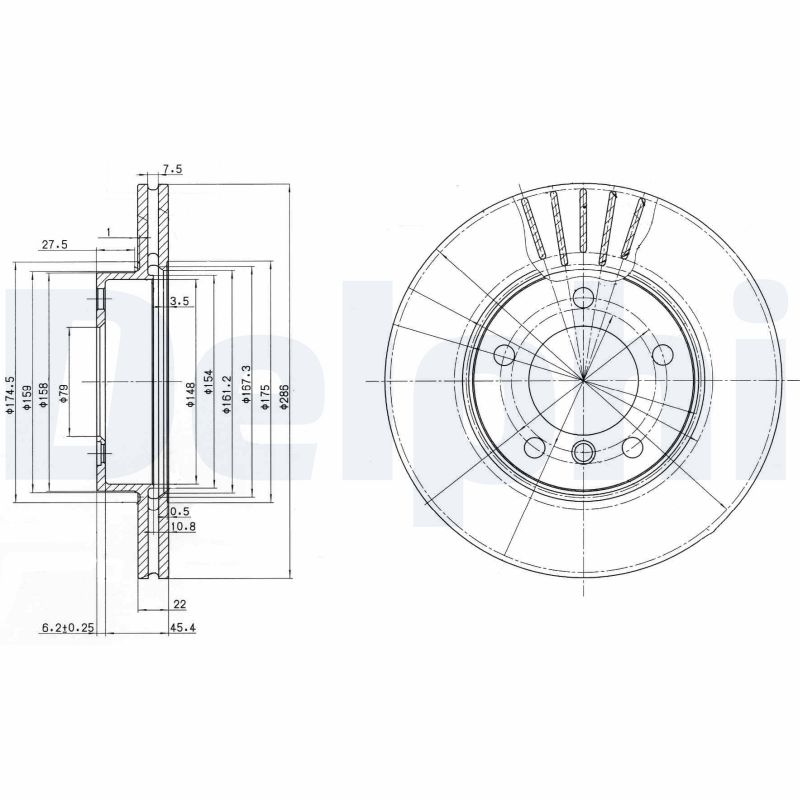

Specifications

Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)79
Height (mm)51.7
Minimum thickness (mm)20.4
Number of Holes 5
Outer Diameter (mm)286
Test Mark E1 90R-02C0373/0037
Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 79, Height [mm] 51,7, Minimum thickness [mm] 20,4, Number of Holes 5, Outer Diameter [mm] 286, Test Mark E1 90R-02C0373/0037
Fits: BMW

Supplier Cross-References

DELPHIBG2623 TEXTAR92055605 FERODODDF258C ATE24012201151 HELLA PAGID8DD355102581 JURID561551JC

Interchangeable Part Numbers

A.B.S.16085 ACDelcoAC2122D ALFA DR6369 ALFADR6369 AP24819 E AP X24819 APX24819 APECDSK918 ATE-CN24-0122-0115-1-01 ATE-CN422115 BARUMBAR22115 BENDIX561551 BENDIX561551B BOSCH0 986 479 S10 BRADI1.0631.2.4 Brake ENGINEERING955155 Brake ENGINEERINGDI955155 Brake ENGINEERINGDI955588 BREMBO09.5390.10 BREMBO09.5390.20 BREMBO09.5390.30 BREMBO09.5390.31 BREMBO09.5390.34 BREMBO09.5390.76 BREMBO09.5390.77 BREMBOFD.040.000 BREMBOFS.040.000 CAR142.113 CIFAM800-474 COMLINEADC1702V EURO CAR PARTS104 11 0028 FEBI BILSTEIN01718 FEDERAL MOGULDRF258S FEDERAL MOGULRT2465 FERODODDF258 FERODODRF258 FERODOFQR258 FIRST LINEFBD438 FREMAXBD-0674 fri.tech.DF283 FTEBS3804 GIRLING6015381 GRAFDF29474 HP (ZEBRA)57377 JURATEKBMW100 JURID561551J JURID82 906 30 KAGER37-0285 LEMFÖRDER10394 LEMFÖRDER10394 03 MAGNETI MARELLI353610631240 METELLI23-0474 MEYLE315 521 3011/PD MEYLE315 521 3011 MGAD1028 MINTEXMDC624 MOTAQUIPVBD430 NationalNBD211 NECTOWN514 NK201521 OPTIMALBS-3240 PAGID50424 PEX14.0103 PILENGAV119 QUINTON HAZELLBDC3804 QUINTON HAZELLBDC3804HC QUINTON HAZELLBDC3804P QUINTON HAZELLBDC4333 QUINTON HAZELLBSF3804 REMSA632.4 10 ROULUNDS BRAKINGD2122 sbs1815201521 sbs815131381V SEBRO202417 SEBRO202446 TEXTAR92055600 TEXTAR98200 0556 TOPRAN500 563 TRISCAN8120 11116 TRWDF1538 TRWDF1538T UNIPARTGBD794 VAICOV20-80037 VALEO185165 VALEO186045 VALEO186275 WOKINGP6324.10 ZIMMERMANN150.1269.00

OE Numbers — BMW

3411 1160 674 3411 1162 282 3411 1162 288 3411 1164 199 3411 1164 431 3411 1164 921 3411 1165 455 3411 6766 239 3411 685 515 34111160981 34116794301 34116855153 34116864060
MakeModelType / Engine YearsCCkWHP
BMW 3 (E36) 318 i 1990 – 1998 1796 103 140
BMW 3 (E36) M3 3.2 1990 – 1998 3152 179 243
BMW 3 (E36) 316 i 1990 – 1998 1596 73 100
BMW 3 (E36) 316 i 1990 – 1998 1596 75 102
BMW 3 (E36) 318 i 1990 – 1998 1796 83 113
BMW 3 (E36) 318 is 1990 – 1998 1796 103 140
BMW 3 (E36) 320 i 1990 – 1998 1990 110 150
BMW 3 (E36) 325 i 1990 – 1998 2494 141 192
BMW 3 (E36) 325 td 1990 – 1998 2497 85 115
BMW 3 (E36) 325 tds 1990 – 1998 2497 105 143
BMW 3 (E36) 318 tds 1990 – 1998 1665 66 90
BMW 3 (E36) 328 i 1990 – 1998 2793 142 193
BMW 3 (E36) 323 i 1990 – 1998 2494 125 170
BMW 3 (E36) 318 i 1990 – 1998 1796 85 115
BMW 3 (E36) 318 is 1990 – 1998 1895 103 140
BMW 3 (E36) M3 3.2 1990 – 1998 3201 236 321
BMW 3 (E36) M3 3.0 1990 – 1998 2990 210 286
BMW 3 (E46) 318 i 1997 – 2005 1895 87 118
BMW 3 (E46) 328 i 1997 – 2005 2793 142 193
BMW 3 (E46) 320 d 1997 – 2005 1951 100 136
BMW 3 (E46) 323 i 1997 – 2005 2494 125 170
BMW 3 (E46) 320 i 1997 – 2005 1990 110 150
BMW 3 (E46) 316 i 1997 – 2005 1895 77 105
BMW 3 (E46) 330 d 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xd 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xi 1997 – 2005 2979 170 231
BMW 3 (E46) 330 i 1997 – 2005 2979 170 231
BMW 3 (E46) 320 i 1997 – 2005 2171 125 170
BMW 3 (E46) 325 i 1997 – 2005 2494 141 192
BMW 3 (E46) 325 xi 1997 – 2005 2494 141 192
BMW 3 (E46) 316 i 1997 – 2005 1596 77 105
BMW 3 (E46) 318 i 1997 – 2005 1995 105 143
BMW 3 (E46) 328 i 1997 – 2005 2793 144 196
BMW 3 (E46) 316 i 1997 – 2005 1596 85 115
BMW 3 (E46) 318 d 1997 – 2005 1995 85 116
BMW 3 (E46) 325 xi 1997 – 2005 2494 137 186
BMW 3 (E46) 320 d 1997 – 2005 1995 110 150
BMW 3 (E46) 320 i 1997 – 2005 2171 120 163
BMW 3 (E46) 330 xd 1997 – 2005 2993 150 204
BMW 3 (E46) 330 d 1997 – 2005 2993 150 204
BMW 3 (E46) 318 i 1997 – 2005 1995 100 136
BMW 3 (E46) 325 i 1997 – 2005 2494 137 186
BMW 3 (E46) 320 d 1997 – 2005 1951 95 129
BMW 3 (E46) 323 i 1997 – 2005 2494 120 163
BMW 3 (E46) 325 i 1997 – 2005 2494 132 179
BMW 3 (E46) 330 xi 1997 – 2005 2979 168 228
BMW 3 (E46) 318 d 1997 – 2005 1951 85 116
BMW 3 (E46) 316 i 1997 – 2005 1796 85 115
BMW 3 Compact (E36) 323 ti 1994 – 2000 2494 120 163
BMW 3 Compact (E36) 316 i 1994 – 2000 1596 75 102
BMW 3 Compact (E36) 318 tds 1994 – 2000 1665 66 90
BMW 3 Compact (E36) 318 ti 1994 – 2000 1796 103 140
BMW 3 Compact (E36) 318 ti 1994 – 2000 1895 103 140
BMW 3 Compact (E36) 323 ti 1994 – 2000 2494 125 170
BMW 3 Compact (E36) 316 g 1994 – 2000 1596 75 102
BMW 3 Compact (E36) 316 i 1994 – 2000 1895 77 105
BMW 3 Compact (E46) 316 ti 2001 – 2005 1796 85 115
BMW 3 Compact (E46) 325 ti 2001 – 2005 2494 141 192
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 105 143
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 110 150
BMW 3 Compact (E46) 318 td 2001 – 2005 1995 85 115
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 85 115
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 100 136
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 77 105
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 100 136
BMW 3 Convertible (E36) 318 is 1993 – 1999 1895 103 140
BMW 3 Convertible (E36) M3 3.2 1993 – 1999 3152 179 243
BMW 3 Convertible (E36) 318 i 1993 – 1999 1796 103 140
BMW 3 Convertible (E36) 320 i 1993 – 1999 1990 110 150
BMW 3 Convertible (E36) 325 i 1993 – 1999 2494 141 192
BMW 3 Convertible (E36) 318 i 1993 – 1999 1796 85 115
BMW 3 Convertible (E36) M3 3.0 1993 – 1999 2990 210 286
BMW 3 Convertible (E36) 328 i 1993 – 1999 2793 142 193
BMW 3 Convertible (E36) 323 i 1993 – 1999 2494 125 170
BMW 3 Convertible (E36) M3 3.2 1993 – 1999 3201 236 321
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 125 170
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 170 231
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 125 170
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 141 192
BMW 3 Convertible (E46) M3 2000 – 2007 3246 252 343
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 120 163
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 120 163
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 137 186
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 168 228
BMW 3 Convertible (E46) 330 Cd 2000 – 2007 2993 150 204
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 105 143
BMW 3 Convertible (E46) 320 Cd 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 100 136
BMW 3 Coupe (E36) M3-R 3.0 1991 – 1999 2990 242 329
BMW 3 Coupe (E36) 318 i 1991 – 1999 1796 83 113
BMW 3 Coupe (E36) M3 3.2 1991 – 1999 3152 179 243
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 176 239
BMW 3 Coupe (E36) 325 is 1991 – 1999 2494 141 192
BMW 3 Coupe (E36) 318 is 1991 – 1999 1796 103 140
BMW 3 Coupe (E36) 320 i 1991 – 1999 1990 110 150
BMW 3 Coupe (E36) 325 i 1991 – 1999 2494 141 192
BMW 3 Coupe (E36) 316 i 1991 – 1999 1596 75 102
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 210 286
BMW 3 Coupe (E36) 328 i 1991 – 1999 2793 142 193
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 217 295
BMW 3 Coupe (E36) 318 is 1991 – 1999 1895 103 140
BMW 3 Coupe (E36) 323 i 1991 – 1999 2494 125 170
BMW 3 Coupe (E36) M3 3.2 1991 – 1999 3201 236 321
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 125 170
BMW 3 Coupe (E46) 328 Ci 1998 – 2006 2793 142 193
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 1990 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 87 118
BMW 3 Coupe (E46) M3 1998 – 2006 3246 252 343
BMW 3 Coupe (E46) 330 xi 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 125 170
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 141 192
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 77 105
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 105 143
BMW 3 Coupe (E46) 330 Cd 1998 – 2006 2993 150 204
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 103 140
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 168 228
BMW 3 Coupe (E46) 325 i 1998 – 2006 2494 132 179
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 120 163
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 137 186
BMW 3 Coupe (E46) 320 Cd 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 85 116
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 120 163
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 85 115
BMW 3 Coupe (E46) M3 CSL 1998 – 2006 3246 265 360
BMW 3 Coupe (E46) 323 i 1998 – 2006 2494 127 173
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 100 136
BMW 3 Touring (E36) 320 i 1994 – 1999 1990 110 150
BMW 3 Touring (E36) 328 i 1994 – 1999 2793 142 193
BMW 3 Touring (E36) 318 tds 1994 – 1999 1665 66 90
BMW 3 Touring (E36) 325 tds 1994 – 1999 2497 105 143
BMW 3 Touring (E36) 323 i 1994 – 1999 2494 125 170
BMW 3 Touring (E36) 318 i 1994 – 1999 1796 85 116
BMW 3 Touring (E36) 316 i 1994 – 1999 1596 75 102
BMW 3 Touring (E46) 320 i 1999 – 2005 1990 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 87 118
BMW 3 Touring (E46) 328 i 1999 – 2005 2793 142 193
BMW 3 Touring (E46) 320 d 1999 – 2005 1951 100 136
BMW 3 Touring (E46) 330 d 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xd 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xi 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 330 i 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 120 163
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 132 179
BMW 3 Touring (E46) 323 i 1999 – 2005 2494 125 170
BMW 3 Touring (E46) 330 d 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 330 xd 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 318 d 1999 – 2005 1951 85 115
BMW 3 Touring (E46) 318 d 1999 – 2005 1995 85 116
BMW 3 Touring (E46) 316 i 1999 – 2005 1796 85 115
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 85 116
BMW 3 Touring (E46) 318 i 1999 – 2005 1995 105 143
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 320 d 1999 – 2005 1995 110 150
BMW Z3 Coupe (E36) 3.0 i 1997 – 2003 2979 168 228
BMW Z3 Coupe (E36) M 3.2 1997 – 2003 3152 176 239
BMW Z3 Coupe (E36) M 1997 – 2003 3246 235 320
BMW Z3 Coupe (E36) 2.8 i 1997 – 2003 2793 142 193
BMW Z3 Coupe (E36) M 1997 – 2003 3201 236 321
BMW Z3 Coupe (E36) 3.0 i 1997 – 2003 2979 170 231
BMW Z3 Coupe (E36) M 1997 – 2003 3246 239 325
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 103 140
BMW Z3 Roadster (E36) 1.8 i 1995 – 2003 1796 85 116
BMW Z3 Roadster (E36) 2.8 i 1995 – 2003 2793 142 193
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3201 236 321
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 87 118
BMW Z3 Roadster (E36) 2.0 i 1995 – 2003 1990 110 150
BMW Z3 Roadster (E36) 1.9 i 1995 – 2003 1895 85 116
BMW Z3 Roadster (E36) 3.0 i 1995 – 2003 2979 170 231
BMW Z3 Roadster (E36) 2.2 i 1995 – 2003 2171 125 170
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3246 239 325
BMW Z3 Roadster (E36) 2.2 i 1995 – 2003 2171 120 163
BMW Z3 Roadster (E36) M 3.2 1995 – 2003 3152 179 243
BMW Z3 Roadster (E36) 2.5 i 1995 – 2003 2494 141 192
BMW Z3 Roadster (E36) 3.2 i 1995 – 2003 3246 235 320
BMW Z3 Roadster (E36) 3.0 i 1995 – 2003 2979 168 228
BMW Z3 Roadster (E36) 2.5 1995 – 2003 2494 125 170
BMW Z4 Roadster (E85) 2.5 i 2002 – 2009 2497 130 177
BMW Z4 Roadster (E85) 3.2 2002 – 2009 3246 235 320
BMW Z4 Roadster (E85) 3.0 i 2002 – 2009 2979 170 231
BMW Z4 Roadster (E85) 2.5 i 2002 – 2009 2494 141 192
BMW Z4 Roadster (E85) 2.2 i 2002 – 2009 2171 125 170
BMW Z4 Roadster (E85) 2.5 si 2002 – 2009 2497 155 211
BMW Z4 Roadster (E85) 2.0 i 2002 – 2009 1995 110 150
BMW Z4 Roadster (E85) 2.5 si 2002 – 2009 2497 160 218
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 195 265
BMW Z4 Roadster (E85) M 2002 – 2009 3246 252 343
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 160 218
BMW Z4 Roadster (E85) 3.0 si 2002 – 2009 2996 190 258
