Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3030C · SKU BG3030C-DELPHI
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

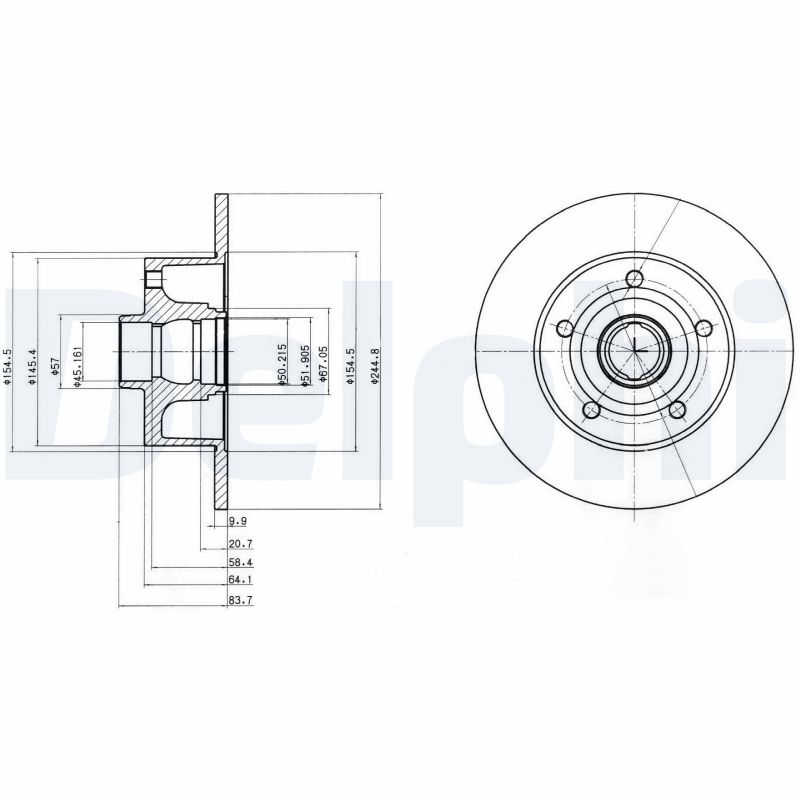

Specifications

Brake Disc Thickness (mm)10
Brake Disc Type solid
Height (mm)83.5
Minimum thickness (mm)8
Number of Holes 5
Outer Diameter (mm)245
Brake Disc Thickness [mm] 10, Brake Disc Type solid, Height [mm] 83,5, Minimum thickness [mm] 8, Number of Holes 5, Outer Diameter [mm] 245
Fits: AUDI

Interchangeable Part Numbers

A.B.S.16329 ALFA DR6388 ALFADR6388 AP 14594E AP14594E APECDSK228 ATE-CN24-0110-0210-1-01 ATE-CN24.0110-0210.1 ATE-CN410210 BARUMBAR10210 BENDIX561982B BRADI1.0126.5.4 Brake ENGINEERING955539 Brake ENGINEERINGDI955539 Brake ENGINEERINGDI955539S BRECO BS7529 BRECOBS7529 BREMBO08.6911.10 BREMBO08.6911.14 BREMBO08.6911.75 CAR142.750 COMLINEADC1419 FEBI BILSTEIN09079 FEDERAL MOGULDRF830S FERODODDF830 FERODODRF830 FREMAXBD-5606 FTEBS4552 GIRLING6027714 GRAFDF29394 HP (ZEBRA)57688 JURATEKVAG125 JURID561982J KAGER37-1151 KAVO PARTSBR-7217 LEMFÖRDER14277 LEMFÖRDER 1427703 LEMFÖRDER1427703 MAGNETI MARELLI353610126540 METELLI23-0394 MEYLE 115 5231012 MEYLE1155231012 MGAD1194 MINTEXMDC830 MOTAQUIPVBD901 NationalNBD709 NECTOWN830 NK204757 PEX14.0044 PILENGA5863 QUINTON HAZELLBSF4552 REMSA 643.100 REMSA643100 ROULUNDS BRAKINGD2244 sbs1815204757 sbs815.424233 SEBRO102390 TEXTAR92072100 TRWDF2771 TRWDF2771S TRWDF2771T UNIPARTGBD1097 VAICOV10-40011 VAICOV10-40068 VALEO186411 VALEO186773 WOKINGP6431.00 ZIMMERMANN100.1229.00

OE Numbers — AUDI 815 615

301B

OE Numbers — AUDI

815615301B 8D0615301B 8D0615601B

OE Numbers — AUDI 8D0 615

601B
MakeModelType / Engine YearsCCkWHP
AUDI A4 B5 (8D2) S4 quattro 1994 – 2001 2671 187 254
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 140 190
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 110 150
AUDI A4 B5 (8D2) 2.6 1994 – 2001 2598 102 139
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 140 190
AUDI A4 B5 (8D2) 2.7 Turbo quattro 1994 – 2001 2671 169 230
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 125 170
AUDI A4 B5 (8D2) 1.6 1994 – 2001 1595 74 100
AUDI A4 B5 (8D2) 1.8 1994 – 2001 1781 92 125
AUDI A4 B5 (8D2) 1.8 T 1994 – 2001 1781 110 150
AUDI A4 B5 (8D2) 2.6 1994 – 2001 2598 110 150
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 128 174
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 66 90
AUDI A4 B5 (8D2) 1.8 quattro 1994 – 2001 1781 92 125
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 110 150
AUDI A4 B5 (8D2) 2.6 quattro 1994 – 2001 2598 110 150
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 128 174
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 81 110
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 142 193
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 142 193
AUDI A4 B5 (8D2) 1.9 TDI quattro 1994 – 2001 1896 81 110
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 121 165
AUDI A4 B5 (8D2) 2.4 quattro 1994 – 2001 2393 121 165
AUDI A4 B5 (8D2) S4 quattro 1994 – 2001 2671 195 265
AUDI A4 B5 (8D2) 2.5 TDI 1994 – 2001 2496 110 150
AUDI A4 B5 (8D2) 2.5 TDI quattro 1994 – 2001 2496 110 150
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 85 116
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 132 180
AUDI A4 B5 (8D2) 1.8 T 1994 – 2001 1781 132 180
AUDI A4 B5 (8D2) 1.9 TDI quattro 1994 – 2001 1896 85 116
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 55 75
AUDI A4 B5 (8D2) 1.8 1994 – 2001 1781 85 115
AUDI A4 B5 (8D2) 1.8 quattro 1994 – 2001 1781 85 115
AUDI A4 B5 (8D2) 1.6 1994 – 2001 1595 75 102
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 120 163
AUDI A4 B5 (8D2) 2.4 quattro 1994 – 2001 2393 120 163
AUDI A4 B5 Avant (8D5) 1.6 1994 – 2002 1595 74 100
AUDI A4 B5 Avant (8D5) 1.8 1994 – 2002 1781 92 125
AUDI A4 B5 Avant (8D5) 1.8 T 1994 – 2002 1781 110 150
AUDI A4 B5 Avant (8D5) 2.6 1994 – 2002 2598 110 150
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 66 90
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 81 110
AUDI A4 B5 Avant (8D5) 1.8 quattro 1994 – 2002 1781 92 125
AUDI A4 B5 Avant (8D5) 1.8 T quattro 1994 – 2002 1781 110 150
AUDI A4 B5 Avant (8D5) 2.6 quattro 1994 – 2002 2598 110 150
AUDI A4 B5 Avant (8D5) 2.8 1994 – 2002 2771 142 193
AUDI A4 B5 Avant (8D5) 2.8 quattro 1994 – 2002 2771 142 193
AUDI A4 B5 Avant (8D5) 1.9 TDI quattro 1994 – 2002 1896 81 110
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 121 165
AUDI A4 B5 Avant (8D5) 2.4 quattro 1994 – 2002 2393 121 165
AUDI A4 B5 Avant (8D5) S4 quattro 1994 – 2002 2671 195 265
AUDI A4 B5 Avant (8D5) 2.5 TDI 1994 – 2002 2496 110 150
AUDI A4 B5 Avant (8D5) 2.5 TDI quattro 1994 – 2002 2496 110 150
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 85 115
AUDI A4 B5 Avant (8D5) 1.8 T quattro 1994 – 2002 1781 132 180
AUDI A4 B5 Avant (8D5) 1.8 T 1994 – 2002 1781 132 180
AUDI A4 B5 Avant (8D5) 1.9 TDI quattro 1994 – 2002 1896 85 115
AUDI A4 B5 Avant (8D5) RS4 quattro 1994 – 2002 2671 280 380
AUDI A4 B5 Avant (8D5) 1.8 1994 – 2002 1781 85 115
AUDI A4 B5 Avant (8D5) 1.8 quattro 1994 – 2002 1781 85 115
AUDI A4 B5 Avant (8D5) 1.6 1994 – 2002 1595 75 102
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 120 163
AUDI A4 B5 Avant (8D5) 2.4 quattro 1994 – 2002 2393 120 163
AUDI A4 B5 Avant (8D5) 1.9 Hybrid 1994 – 2002 1896 66 90
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 110 150
AUDI A4 B5 Avant (8D5) 2.8 1994 – 2002 2771 140 190
AUDI A4 B5 Avant (8D5) 2.8 quattro 1994 – 2002 2771 140 190
AUDI A4 B5 Avant (8D5) S4 quattro 1994 – 2002 2671 185 252
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 184 250
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 127 173
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 186 253
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 (8E2) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 (8E2) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 (8E2) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 Avant (8E5) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 Avant (8E5) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 Avant (8E5) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 127 173
AUDI A4 B6 Avant (8E5) 2.7 S4 quattro 2000 – 2005 2671 187 254
