Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3034 · SKU BG3034-DELPHI
Rear Axle
₱5,400.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

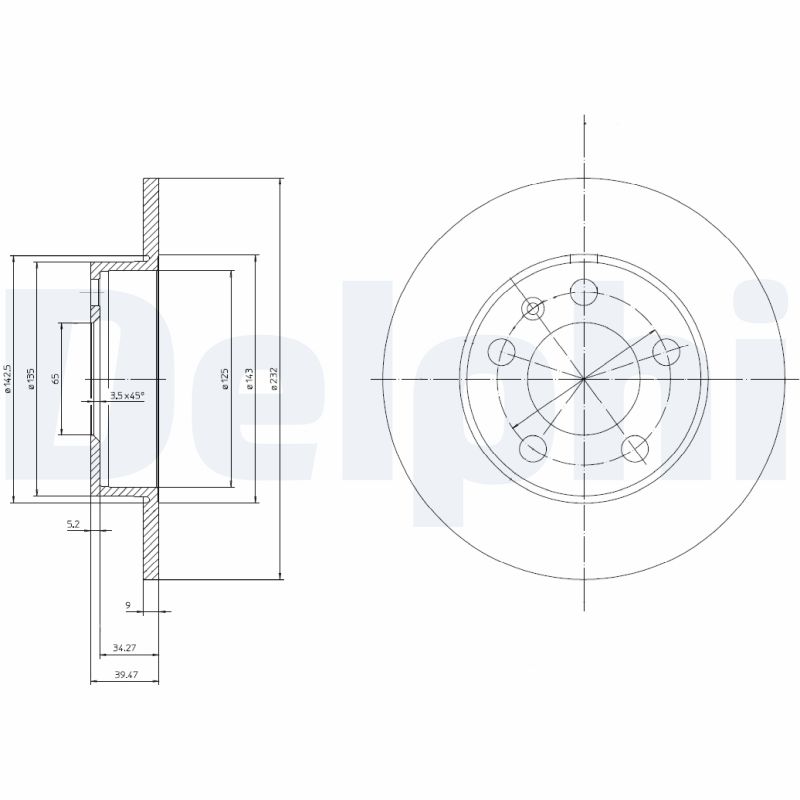

Specifications

Brake Disc Thickness (mm)9
Brake Disc Type solid
Centering Diameter (mm)65
Height (mm)39.3
Minimum thickness (mm)7
Number of Holes 5
Outer Diameter (mm)232
Test Mark E1 90R-02C0250/1192
Brake Disc Thickness [mm] 9, Brake Disc Type solid, Centering Diameter [mm] 65, Height [mm] 39,3, Minimum thickness [mm] 7, Number of Holes 5, Outer Diameter [mm] 232, Test Mark E1 90R-02C0250/1192
Fits: AUDI, SEAT, SKODA, VW

Supplier Cross-References

DELPHIBG3034 TEXTAR89006800 ZIMMERMANN100123620 FERODODDF1233 ATE24010901231 HELLA PAGID8DD355105411

Interchangeable Part Numbers

A.B.S.16883 ACDelcoAC2255D ALFA DR6399 ALFADR6399 AP 14699E AP14699E AP X14699 APX14699 APECDSK274 ATE-CN24-0109-0123-1-02 ATE-CN24.0109-0164.1 ATE-CN409123 BARUMBAR09123 BENDIX562053 BENDIX562053B BLUE PRINTADV184302 BLUE PRINTADV184325 BRADI1.5833.5.4 Brake ENGINEERING955639 Brake ENGINEERINGDI955639 Brake ENGINEERINGDI955936 Brake ENGINEERINGDI956022 BREMBO08.7165.10 BREMBO08.7165.11 BREMBO08.7165.14 BREMBO08.7165.20 BREMBO08.7165.75 BREMBO09.7010.21 BREMBO09.7010.76 BREMBOFD.074.000 BREMBOFS.074.000 BREMBORD.131.000 CAR142.749 CIFAM800-366 COMLINEADC1414 FEBI BILSTEIN18488 FEDERAL MOGULDRF929S FERODODDF929 FERODODRF929 FREMAXBD-5601 fri.tech.DF149 FTEBS4753 GIRLING6028054 GRAFDF29366 HP (ZEBRA)57755 JURATEKVAG118 JURID562053J KAGER37-0191 KAVO PARTSBR-7220 LEMFÖRDER22048 LEMFÖRDER 2204801 LEMFÖRDER2204801 LPRA1441P MAGNETI MARELLI353615833540 METELLI23-0366 MEYLE 115 5231008/PD MEYLE1155231008PD MEYLE 115 5231008 MEYLE1155231008 MGAD1166 MINTEXMDC980 MOTAQUIPVBD970 NationalNBD877 NECTOWN917 NK204761 PAGID53955 PEX14.0640 PILENGA5255 QUINTON HAZELLBDC4753 QUINTON HAZELLBDC4753P QUINTON HAZELLBSF4753 REMSA 654.700 REMSA654700 ROULUNDS BRAKINGD2255 sbs1815204761 sbs815.424238 SEBRO102346 SEBRO107082 SEBRO107084 STOP562053S TEXTAR92082500 TRWDF2805 TRWDF2805BP TRWDF2805S TRWDF2805T UNIPARTGBD1106 VAICOV10-40048 VALEO186597 VALEO186678 WOKINGP6547.00 ZIMMERMANN100.1236.00

OE Numbers — AUDI 1J0 615

601C 601N 601P 601Q 601

OE Numbers — AUDI

1J0615601C 1J0615601N 1J0615601P 1J0615601Q 1J0615601 1JE615601 1JO615601P 1JO615601 2Q0615601H

OE Numbers — AUDI 2Q0 615

601H
MakeModelType / Engine YearsCCkWHP
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 100 136
AUDI A1 (8X1, 8XK) 1.2 TFSI 2010 – 2019 1197 63 86
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 77 105
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 90 122
AUDI A1 (8X1, 8XK) 2.0 TFSI quattro 2010 – 2019 1984 188 256
AUDI A1 (8X1, 8XK) S1 quattro 2010 – 2019 1984 170 231
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 92 125
AUDI A1 (8X1, 8XK) 1.4 TSI 2010 – 2019 1395 110 150
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 85 115
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 103 140
AUDI A1 (8X1, 8XK) 1.4 TDI 2010 – 2019 1422 66 90
AUDI A1 (8X1, 8XK) 1.8 TFSI 2010 – 2019 1798 141 192
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 60 82
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 136 185
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 66 90
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 105 143
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 70 95
AUDI A1 City Carver (GBH) 30 TFSI 2019 – 2022 999 81 110
AUDI A1 City Carver (GBH) 35 TFSI 2019 – 2022 1498 110 150
AUDI A1 City Carver (GBH) 30 TFSI 2019 – 2022 999 85 116
AUDI A1 City Carver (GBH) 25 TFSI 2019 – 2022 999 70 95
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 77 105
AUDI A1 Sportback (8XA, 8XF) 1.4 30 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 105 143
AUDI A1 Sportback (8XA, 8XF) S1 quattro 2011 – 2019 1984 170 231
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.4 TSI 2011 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 100 136
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 66 90
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 136 185
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 103 140
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 90 122
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI 2011 – 2019 1197 63 86
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 60 82
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 85 115
AUDI A1 Sportback (8XA, 8XF) 1.4 TDI 2011 – 2019 1422 66 90
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 70 95
AUDI A1 Sportback (8XA, 8XF) 1.8 TFSI 2011 – 2019 1798 141 192
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 66 90
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 55 75
AUDI A2 (8Z0) 1.4 2000 – 2005 1390 55 75
AUDI A2 (8Z0) 1.2 TDI 2000 – 2005 1191 45 61
AUDI A2 (8Z0) 1.6 FSI 2000 – 2005 1598 81 110
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 120 163
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 134 182
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 132 180
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 165 224
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 140 190
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 134 182
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 132 180
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 140 190
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 180 245
AUDI TT (8N3) 3.2 VR6 quattro 1998 – 2007 3189 184 250
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 110 150
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 168 228
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 134 182
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 140 190
AUDI TT Roadster (8N9) 3.2 VR6 quattro 1999 – 2007 3189 184 250
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 140 190
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 120 163
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 132 180
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 132 180
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 165 224
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 134 182
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 168 228
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 110 150
