Braking System

Brake Disc

Name: Brake Disc
Brand: DELPHI
SKU: BG3034T-DELPHI
Availability: OutOfStock

Part No. BG3034T · SKU BG3034T-DELPHI

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

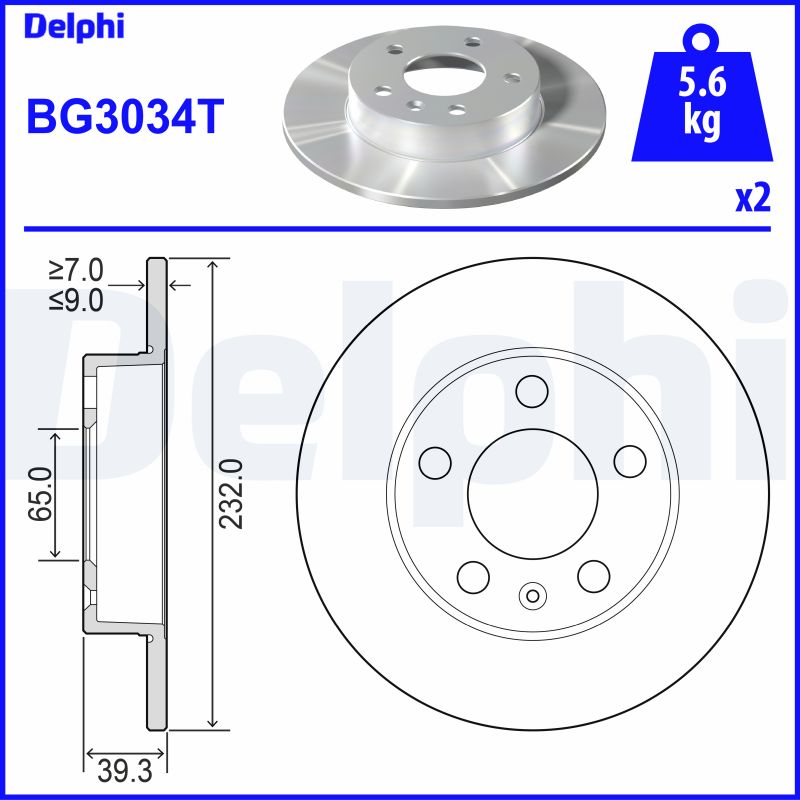

Specifications

Brake Disc Thickness (mm)	9
Brake Disc Type solid
Centering Diameter (mm)	65
Height (mm)	39.5
Minimum thickness (mm)	7
Number of Holes 5
Outer Diameter (mm)	232
Surface Oiled

Brake Disc Thickness [mm] 9, Brake Disc Type solid, Centering Diameter [mm] 65, Height [mm] 39,5, Minimum thickness [mm] 7, Number of Holes 5, Outer Diameter [mm] 232, Surface Oiled
Fits: AUDI, SEAT, SKODA, VW

Interchangeable Part Numbers

A.B.S.16883 ACDelcoAC2255D ALFA DR6399 ALFADR6399 AP 14699E AP14699E AP X14699 APX14699 APECDSK274 ATE-CN24-0109-0123-1-02 ATE-CN24.0109-0123.1 ATE-CN24.0109-0164.1 ATE-CN409123 AYD10-50156 BARUMBAR09123 BENDIX562053 BENDIX562053B BLUE PRINTADV184302 BLUE PRINTADV184325 BOSCH 0 986 478868 BOSCH0986478868 BOSCH 0 986 479915 BOSCH0986479915 BRADI1.5833.5.4 Brake ENGINEERING955639 Brake ENGINEERINGDI955639 Brake ENGINEERINGDI955936 Brake ENGINEERINGDI956022 BREMBO08.7165.10 BREMBO08.7165.11 BREMBO08.7165.14 BREMBO08.7165.20 BREMBO08.7165.75 BREMBO09.7010.21 BREMBO09.7010.76 BREMBOFD.074.000 BREMBOFS.074.000 BREMBORD.131.000 CAR142.749 CIFAM800-366 COMLINEADC1414 FEBI BILSTEIN18488 FEDERAL MOGULDRF929S FERODODDF929 FERODODRF929 FREMAXBD-5601 fri.tech.DF149 FTEBS4753 GIRLING6028054 GRAFDF29366 HP (ZEBRA)57755 JURATEKVAG118 JURID562053J KAGER37-0191 KAVO PARTSBR-7220 LEMFÖRDER22048 LEMFÖRDER 2204801 LEMFÖRDER2204801 LPRA1441P MAGNETI MARELLI353615833540 METELLI23-0366 MEYLE 115 5231008/PD MEYLE1155231008PD MEYLE 115 5231008 MEYLE1155231008 MGAD1166 MINTEXMDC980 MOTAQUIPVBD970 NationalNBD877 NECTOWN917 NK204761 PAGID53955 PEX14.0640 PILENGA5255 QUINTON HAZELLBDC4753 QUINTON HAZELLBDC4753P QUINTON HAZELLBSF4753 REMSA 654.700 REMSA654700 ROULUNDS BRAKINGD2255 sbs1815204761 sbs815.424238 SEBRO102346 SEBRO107082 SEBRO107084 STOP562053S TEXTAR92082500 TRWDF2805 TRWDF2805BP TRWDF2805S TRWDF2805T UNIPARTGBD1106 VAICOV10-40048 VALEO186597 VALEO186678 WOKINGP6547.00 ZIMMERMANN100.1236.00 ZIMMERMANN100.1236.53

OE Numbers — AUDI 1J0 615

601C 601N 601P 601Q 601

OE Numbers — AUDI

1J0615601C 1J0615601N 1J0615601P 1J0615601Q 1J0615601 1JE615601 1JO615601P 1JO615601 2Q0615601H

OE Numbers — AUDI 2Q0 615

601H

OE Numbers — SEAT

JZW698601AC JZW698601AG JZW698601AH JZW698601AJ

OE Numbers — VW (FAW)

L180615601A L6QD615601 L6QD615601A

OE Numbers — VW

JZW698601AD JZW698601AE

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A1 (8X1, 8XK)	2.0 TDI	2010 – 2019	1968	100	136
AUDI	A1 (8X1, 8XK)	1.2 TFSI	2010 – 2019	1197	63	86
AUDI	A1 (8X1, 8XK)	1.6 TDI	2010 – 2019	1598	77	105
AUDI	A1 (8X1, 8XK)	1.4 TFSI	2010 – 2019	1390	90	122
AUDI	A1 (8X1, 8XK)	2.0 TFSI quattro	2010 – 2019	1984	188	256
AUDI	A1 (8X1, 8XK)	S1 quattro	2010 – 2019	1984	170	231
AUDI	A1 (8X1, 8XK)	1.4 TFSI	2010 – 2019	1395	92	125
AUDI	A1 (8X1, 8XK)	1.4 TSI	2010 – 2019	1395	110	150
AUDI	A1 (8X1, 8XK)	1.6 TDI	2010 – 2019	1598	85	115
AUDI	A1 (8X1, 8XK)	1.4 TFSI	2010 – 2019	1395	103	140
AUDI	A1 (8X1, 8XK)	1.4 TDI	2010 – 2019	1422	66	90
AUDI	A1 (8X1, 8XK)	1.8 TFSI	2010 – 2019	1798	141	192
AUDI	A1 (8X1, 8XK)	1.0 TFSI	2010 – 2019	999	60	82
AUDI	A1 (8X1, 8XK)	1.4 TFSI	2010 – 2019	1390	136	185
AUDI	A1 (8X1, 8XK)	1.6 TDI	2010 – 2019	1598	66	90
AUDI	A1 (8X1, 8XK)	2.0 TDI	2010 – 2019	1968	105	143
AUDI	A1 (8X1, 8XK)	1.0 TFSI	2010 – 2019	999	70	95
AUDI	A1 City Carver (GBH)	30 TFSI	2019 – 2022	999	81	110
AUDI	A1 City Carver (GBH)	35 TFSI	2019 – 2022	1498	110	150
AUDI	A1 City Carver (GBH)	30 TFSI	2019 – 2022	999	85	116
AUDI	A1 City Carver (GBH)	25 TFSI	2019 – 2022	999	70	95
AUDI	A1 Sportback (8XA, 8XF)	1.6 TDI	2011 – 2019	1598	77	105
AUDI	A1 Sportback (8XA, 8XF)	1.4 30 TFSI	2011 – 2019	1395	92	125
AUDI	A1 Sportback (8XA, 8XF)	2.0 TDI	2011 – 2019	1968	105	143
AUDI	A1 Sportback (8XA, 8XF)	S1 quattro	2011 – 2019	1984	170	231
AUDI	A1 Sportback (8XA, 8XF)	1.4 TFSI	2011 – 2019	1395	92	125
AUDI	A1 Sportback (8XA, 8XF)	1.4 TSI	2011 – 2019	1395	110	150
AUDI	A1 Sportback (8XA, 8XF)	2.0 TDI	2011 – 2019	1968	100	136
AUDI	A1 Sportback (8XA, 8XF)	1.6 TDI	2011 – 2019	1598	66	90
AUDI	A1 Sportback (8XA, 8XF)	1.4 TFSI	2011 – 2019	1390	136	185
AUDI	A1 Sportback (8XA, 8XF)	1.4 TFSI	2011 – 2019	1395	103	140
AUDI	A1 Sportback (8XA, 8XF)	1.4 TFSI	2011 – 2019	1390	90	122
AUDI	A1 Sportback (8XA, 8XF)	1.2 TFSI	2011 – 2019	1197	63	86
AUDI	A1 Sportback (8XA, 8XF)	1.0 TFSI	2011 – 2019	999	60	82
AUDI	A1 Sportback (8XA, 8XF)	1.6 TDI	2011 – 2019	1598	85	115
AUDI	A1 Sportback (8XA, 8XF)	1.4 TDI	2011 – 2019	1422	66	90
AUDI	A1 Sportback (8XA, 8XF)	1.0 TFSI	2011 – 2019	999	70	95
AUDI	A1 Sportback (8XA, 8XF)	1.8 TFSI	2011 – 2019	1798	141	192
AUDI	A2 (8Z0)	1.4 TDI	2000 – 2005	1422	66	90
AUDI	A2 (8Z0)	1.4 TDI	2000 – 2005	1422	55	75
AUDI	A2 (8Z0)	1.4	2000 – 2005	1390	55	75
AUDI	A2 (8Z0)	1.2 TDI	2000 – 2005	1191	45	61
AUDI	A2 (8Z0)	1.6 FSI	2000 – 2005	1598	81	110
AUDI	A3 (8L1)	1.8	1996 – 2006	1781	92	125
AUDI	A3 (8L1)	1.6	1996 – 2006	1598	74	101
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	66	90
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	81	110
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	154	210
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	75	102
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	74	101
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	74	100
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	165	224
AUDI	A3 (8L1)	1.9 TDI quattro	1996 – 2006	1896	96	130
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	120	163
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	134	182
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	132	180
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	165	224
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	140	190
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	134	182
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	132	180
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	140	190
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	180	245
AUDI	TT (8N3)	3.2 VR6 quattro	1998 – 2007	3189	184	250
AUDI	TT (8N3)	1.8 T	1998 – 2007	1781	110	150
AUDI	TT (8N3)	1.8 T quattro	1998 – 2007	1781	168	228
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	134	182
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	140	190
AUDI	TT Roadster (8N9)	3.2 VR6 quattro	1999 – 2007	3189	184	250
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	140	190
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	120	163
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	132	180
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	132	180
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	165	224
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	134	182
AUDI	TT Roadster (8N9)	1.8 T quattro	1999 – 2007	1781	168	228
AUDI	TT Roadster (8N9)	1.8 T	1999 – 2007	1781	110	150
