Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3036C · SKU BG3036C-DELPHI
Front Axle
₱16,900.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

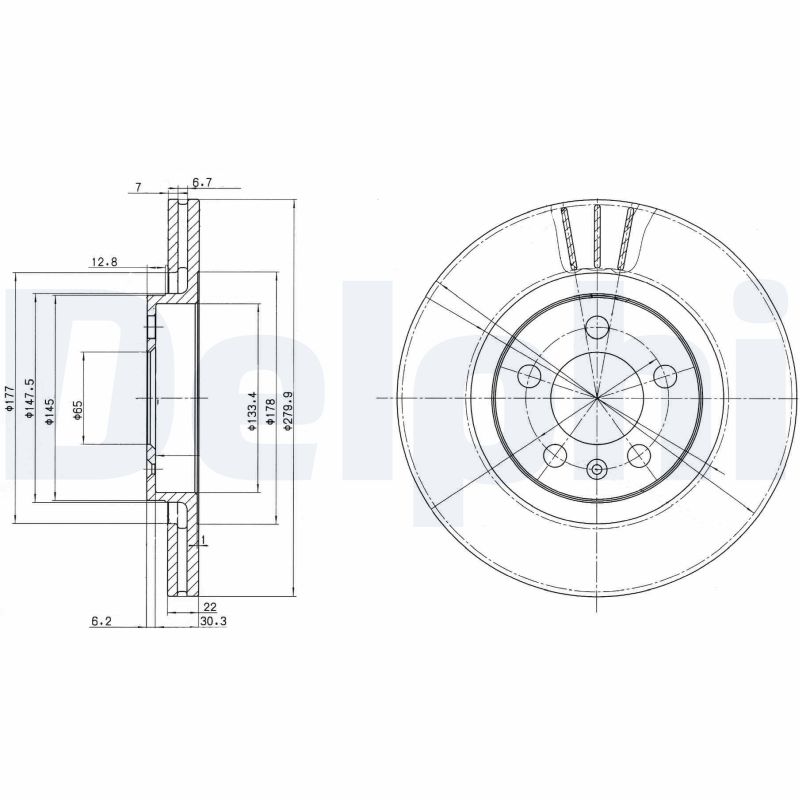

Specifications

Brake Disc Thickness (mm)22
Brake Disc Type Vented
Centering Diameter (mm)65
Height (mm)36.5
Minimum thickness (mm)19
Number of Holes 5
Outer Diameter (mm)280
Surface Oiled
Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Centering Diameter [mm] 65, Height [mm] 36,5, Minimum thickness [mm] 19, Number of Holes 5, Outer Diameter [mm] 280, Surface Oiled
Fits: AUDI, SEAT, SKODA, VW

Supplier Cross-References

DELPHIBG3036C TEXTAR92082300 ZIMMERMANN100123420 FERODODDF928 ATE24012201501 JURID562039J

Interchangeable Part Numbers

A.B.S.16881 ACDelcoAC2254D ALFA DR6396 ALFADR6396 AP 24691E AP24691E AP X24691 APX24691 APECDSK774 ATE-CN24-0122-0150-1-01 ATE-CN24.0322-0150.1 ATE-CN422150 BENDIX562039 BENDIX562039B BRADI1.5832.2.4 Brake ENGINEERING955638 Brake ENGINEERING956254 Brake ENGINEERINGDI955638 BREMBO09.7012.10 BREMBO09.7012.11 BREMBO09.7012.14 BREMBO09.7012.75 BREMBOFD.076.000 BREMBOFS.076.000 CAR142.747 CIFAM800-391 CIFAM800-904 COMLINEADC1408V FEBI BILSTEIN17936 FEDERAL MOGULDRF928S FERODODRF928 FREMAXBD-5603 fri.tech.DF511 FTEBS4668 GIRLING6028041 GRAFDF29391 GRAFDF29904 HP (ZEBRA)57772 JURATEKVAG121 KAGER00-0249 KAGER37-0083 KAVO PARTSBR-7222 LEMFÖRDER21308 LEMFÖRDER 2130802 LEMFÖRDER2130802 MAGNETI MARELLI353615832240 METELLI23-0391 MEYLE 115 5211027/PD MEYLE1155211027PD MEYLE 115 5211027 MEYLE1155211027 MGAD1191 MINTEXMDC978 MOTAQUIPVBD969 NationalNBD876 NECTOWN916 NK204759 PAGID53954 PEX14.0639 PILENGAV159 QUINTON HAZELLBDC4668 QUINTON HAZELLBDC4668HC QUINTON HAZELLBDC4668P QUINTON HAZELLBSF4668 REMSA 654.610 REMSA654610 ROULUNDS BRAKINGD2254 sbs1815204759 sbs815.424239 SEBRO202348 SEBRO207085 STOP562039S TOPRAN 107681 TOPRAN107681 TRWDF2804 TRWDF2804BP TRWDF2804S TRWDF2804T UNIPARTGBD1105 VAICOV10-80042 VALEO186604 WOKINGP6546.10 ZIMMERMANN100.1234.00

OE Numbers — AUDI 1J0 615

301E 301M 301P

OE Numbers — AUDI

1J0615301E 1J0615301M 1J0615301P 1JO615301E
MakeModelType / Engine YearsCCkWHP
AUDI A1 (8X1, 8XK) 1.8 TFSI 2010 – 2019 1798 141 192
AUDI A1 (8X1, 8XK) 1.4 TDI 2010 – 2019 1422 66 90
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 85 115
AUDI A1 (8X1, 8XK) 1.2 TFSI 2010 – 2019 1197 63 86
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 77 105
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 90 122
AUDI A1 (8X1, 8XK) 2.0 TFSI quattro 2010 – 2019 1984 188 256
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 100 136
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 103 140
AUDI A1 (8X1, 8XK) S1 quattro 2010 – 2019 1984 170 231
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 70 95
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 105 143
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 66 90
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 136 185
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 60 82
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 92 125
AUDI A1 (8X1, 8XK) 1.4 TSI 2010 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 66 90
AUDI A1 Sportback (8XA, 8XF) S1 quattro 2011 – 2019 1984 170 231
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 105 143
AUDI A1 Sportback (8XA, 8XF) 1.4 TSI 2011 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 85 115
AUDI A1 Sportback (8XA, 8XF) 1.4 TDI 2011 – 2019 1422 66 90
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 100 136
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 77 105
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 136 185
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 103 140
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 90 122
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI 2011 – 2019 1197 63 86
AUDI A1 Sportback (8XA, 8XF) 1.8 TFSI 2011 – 2019 1798 141 192
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 70 95
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 60 82
AUDI A1 Sportback (8XA, 8XF) 1.4 30 TFSI 2011 – 2019 1395 92 125
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
