Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3041 · SKU BG3041-DELPHI
Rear Axle
₱14,200.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

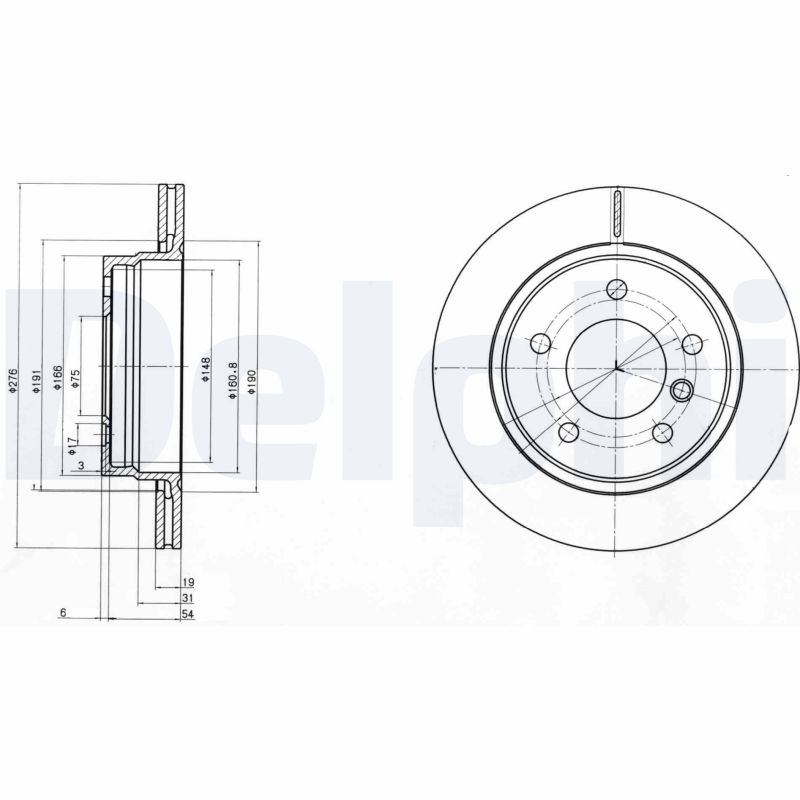

Specifications

Brake Disc Thickness (mm)19
Brake Disc Type Vented
Centering Diameter (mm)75
Height (mm)60
Minimum thickness (mm)17.4
Number of Holes 5
Outer Diameter (mm)276
Brake Disc Thickness [mm] 19, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 60, Minimum thickness [mm] 17,4, Number of Holes 5, Outer Diameter [mm] 276
Fits: BMW

Supplier Cross-References

BMW / MINI34216864903 DELPHIBG3041 ZIMMERMANN150128300 FERODODDF831 ATE24011901071 HELLA PAGID355104271

Interchangeable Part Numbers

A.B.S.16339 ACDelcoAC2409D ALFA DR6583 ALFADR6583 AP24750 APECDSK681 ATE-CN24-0119-0107-1-02 ATE-CN419107 BARUMBAR19107 BENDIX562003 BENDIX562003B BRADI1.0639.6.4 Brake ENGINEERING955543 Brake ENGINEERING955907 Brake ENGINEERINGDI955543 Brake ENGINEERINGDI955907 BREMBO09.6821.10 BREMBO09.7727.10 BREMBO09.7727.11 BREMBO09.7727.75 BREMBORD.141.000 CAR142.096 CIFAM800-450 COMLINEADC1704V FEBI BILSTEIN12324 FERODODRF831 FREMAXBD-2315 fri.tech.DF550 FTEBS4536 GIRLING6027672 GRAFDF29450 HP (ZEBRA)57699 JURATEKBMW103 JURID562003J KAGER37-1155 LEMFÖRDER22825 LEMFÖRDER 2282502 LEMFÖRDER2282502 MAGNETI MARELLI353610639640 METELLI23-0450 MEYLE 315 5233021/PD MEYLE3155233021PD MEYLE 315 5233021 MEYLE3155233021 MGAD1250 MINTEXMDC1053 MOTAQUIPVBE163 NationalNBD727 NECTOWN831 NK201535 PAGID50436 PEX14.0111 PILENGAV127 QUINTON HAZELLBDC4536 QUINTON HAZELLBDC4536HC QUINTON HAZELLBDC4536P QUINTON HAZELLBSF4536 REMSA6458.10 ROULUNDS BRAKINGD2409 sbs1815201535 SEBRO202414 TEXTAR92072400 TOPRAN 500577 TOPRAN500577 TRWDF2767 TRWDF2767S TRWDF2767T UNIPARTGBD1126 VAICOV20-80042 VALEO186559 WOKINGP6458.10 ZIMMERMANN150.1283.20

OE Numbers — BMW 3421 1162

315

OE Numbers — BMW

34211162315 34211165211 3421686490 34216855155

OE Numbers — BMW 3421 1165

211

OE Numbers — BMW 3421 686

490
MakeModelType / Engine YearsCCkWHP
BMW 3 (E36) M3 3.2 1990 – 1998 3152 179 243
BMW 3 (E36) 318 i 1990 – 1998 1796 103 140
BMW 3 (E36) 316 i 1990 – 1998 1596 73 100
BMW 3 (E36) 316 i 1990 – 1998 1596 75 102
BMW 3 (E36) 318 i 1990 – 1998 1796 83 113
BMW 3 (E36) 318 is 1990 – 1998 1796 103 140
BMW 3 (E36) 320 i 1990 – 1998 1990 110 150
BMW 3 (E36) 325 i 1990 – 1998 2494 141 192
BMW 3 (E36) 325 td 1990 – 1998 2497 85 115
BMW 3 (E36) 325 tds 1990 – 1998 2497 105 143
BMW 3 (E36) 318 tds 1990 – 1998 1665 66 90
BMW 3 (E36) 328 i 1990 – 1998 2793 142 193
BMW 3 (E36) 323 i 1990 – 1998 2494 125 170
BMW 3 (E36) 318 i 1990 – 1998 1796 85 115
BMW 3 (E36) 318 is 1990 – 1998 1895 103 140
BMW 3 (E36) M3 3.2 1990 – 1998 3201 236 321
BMW 3 (E36) M3 3.0 1990 – 1998 2990 210 286
BMW 3 (E46) 318 i 1997 – 2005 1895 87 118
BMW 3 (E46) 328 i 1997 – 2005 2793 142 193
BMW 3 (E46) 320 d 1997 – 2005 1951 100 136
BMW 3 (E46) 323 i 1997 – 2005 2494 125 170
BMW 3 (E46) 320 i 1997 – 2005 1990 110 150
BMW 3 (E46) 316 i 1997 – 2005 1895 77 105
BMW 3 (E46) 330 d 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xd 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xi 1997 – 2005 2979 170 231
BMW 3 (E46) 330 i 1997 – 2005 2979 170 231
BMW 3 (E46) 320 i 1997 – 2005 2171 125 170
BMW 3 (E46) 325 i 1997 – 2005 2494 141 192
BMW 3 (E46) 325 xi 1997 – 2005 2494 141 192
BMW 3 (E46) 316 i 1997 – 2005 1596 77 105
BMW 3 (E46) 318 i 1997 – 2005 1995 105 143
BMW 3 (E46) 320 d 1997 – 2005 1995 110 150
BMW 3 (E46) 318 d 1997 – 2005 1951 85 116
BMW 3 (E46) 316 i 1997 – 2005 1796 85 115
BMW 3 (E46) 330 d 1997 – 2005 2993 150 204
BMW 3 (E46) 330 xd 1997 – 2005 2993 150 204
BMW 3 (E46) 325 i 1997 – 2005 2494 132 179
BMW 3 (E46) 330 xi 1997 – 2005 2979 168 228
BMW 3 (E46) 320 d 1997 – 2005 1951 95 129
BMW 3 (E46) 325 xi 1997 – 2005 2494 137 186
BMW 3 (E46) 325 i 1997 – 2005 2494 137 186
BMW 3 (E46) 318 i 1997 – 2005 1995 100 136
BMW 3 (E46) 328 i 1997 – 2005 2793 144 196
BMW 3 (E46) 320 i 1997 – 2005 2171 120 163
BMW 3 (E46) 316 i 1997 – 2005 1596 85 115
BMW 3 (E46) 323 i 1997 – 2005 2494 120 163
BMW 3 (E46) 318 d 1997 – 2005 1995 85 116
BMW 3 Compact (E36) 323 ti 1994 – 2000 2494 120 163
BMW 3 Compact (E36) 316 i 1994 – 2000 1596 75 102
BMW 3 Compact (E36) 318 tds 1994 – 2000 1665 66 90
BMW 3 Compact (E36) 318 ti 1994 – 2000 1796 103 140
BMW 3 Compact (E36) 318 ti 1994 – 2000 1895 103 140
BMW 3 Compact (E36) 323 ti 1994 – 2000 2494 125 170
BMW 3 Compact (E36) 316 g 1994 – 2000 1596 75 102
BMW 3 Compact (E36) 316 i 1994 – 2000 1895 77 105
BMW 3 Compact (E46) 316 ti 2001 – 2005 1796 85 115
BMW 3 Compact (E46) 325 ti 2001 – 2005 2494 141 192
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 105 143
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 110 150
BMW 3 Compact (E46) 318 td 2001 – 2005 1995 85 115
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 100 136
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 77 105
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 85 115
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 100 136
BMW 3 Convertible (E36) 318 i 1993 – 1999 1796 103 140
BMW 3 Convertible (E36) M3 3.2 1993 – 1999 3152 179 243
BMW 3 Convertible (E36) 318 is 1993 – 1999 1895 103 140
BMW 3 Convertible (E36) 320 i 1993 – 1999 1990 110 150
BMW 3 Convertible (E36) 325 i 1993 – 1999 2494 141 192
BMW 3 Convertible (E36) 318 i 1993 – 1999 1796 85 115
BMW 3 Convertible (E36) M3 3.0 1993 – 1999 2990 210 286
BMW 3 Convertible (E36) 328 i 1993 – 1999 2793 142 193
BMW 3 Convertible (E36) 323 i 1993 – 1999 2494 125 170
BMW 3 Convertible (E36) M3 3.2 1993 – 1999 3201 236 321
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 125 170
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 170 231
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 125 170
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 141 192
BMW 3 Convertible (E46) M3 2000 – 2007 3246 252 343
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 105 143
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 120 163
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 100 136
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 168 228
BMW 3 Convertible (E46) 320 Cd 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 120 163
BMW 3 Convertible (E46) 330 Cd 2000 – 2007 2993 150 204
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 137 186
BMW 3 Coupe (E36) M3 3.2 1991 – 1999 3152 179 243
BMW 3 Coupe (E36) M3-R 3.0 1991 – 1999 2990 242 329
BMW 3 Coupe (E36) 318 i 1991 – 1999 1796 83 113
BMW 3 Coupe (E36) 325 is 1991 – 1999 2494 141 192
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 176 239
BMW 3 Coupe (E36) 318 is 1991 – 1999 1796 103 140
BMW 3 Coupe (E36) 320 i 1991 – 1999 1990 110 150
BMW 3 Coupe (E36) 325 i 1991 – 1999 2494 141 192
BMW 3 Coupe (E36) 316 i 1991 – 1999 1596 75 102
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 210 286
BMW 3 Coupe (E36) 328 i 1991 – 1999 2793 142 193
BMW 3 Coupe (E36) M3 3.0 1991 – 1999 2990 217 295
BMW 3 Coupe (E36) 318 is 1991 – 1999 1895 103 140
BMW 3 Coupe (E36) 323 i 1991 – 1999 2494 125 170
BMW 3 Coupe (E36) M3 3.2 1991 – 1999 3201 236 321
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 125 170
BMW 3 Coupe (E46) 328 Ci 1998 – 2006 2793 142 193
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 1990 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 87 118
BMW 3 Coupe (E46) M3 1998 – 2006 3246 252 343
BMW 3 Coupe (E46) 330 xi 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 125 170
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 141 192
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 77 105
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 105 143
BMW 3 Coupe (E46) 330 Cd 1998 – 2006 2993 150 204
BMW 3 Coupe (E46) 320 Cd 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 168 228
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 137 186
BMW 3 Coupe (E46) 323 i 1998 – 2006 2494 127 173
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 103 140
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 120 163
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 100 136
BMW 3 Coupe (E46) 325 i 1998 – 2006 2494 132 179
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 85 115
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 85 116
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 120 163
BMW 3 Coupe (E46) M3 CSL 1998 – 2006 3246 265 360
BMW 3 Touring (E36) 320 i 1994 – 1999 1990 110 150
BMW 3 Touring (E36) 328 i 1994 – 1999 2793 142 193
BMW 3 Touring (E36) 318 tds 1994 – 1999 1665 66 90
BMW 3 Touring (E36) 325 tds 1994 – 1999 2497 105 143
BMW 3 Touring (E36) 323 i 1994 – 1999 2494 125 170
BMW 3 Touring (E36) 318 i 1994 – 1999 1796 85 116
BMW 3 Touring (E36) 316 i 1994 – 1999 1596 75 102
BMW 3 Touring (E46) 320 i 1999 – 2005 1990 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 87 118
BMW 3 Touring (E46) 328 i 1999 – 2005 2793 142 193
BMW 3 Touring (E46) 320 d 1999 – 2005 1951 100 136
BMW 3 Touring (E46) 330 d 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xd 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xi 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 330 i 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 320 d 1999 – 2005 1995 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1995 105 143
BMW 3 Touring (E46) 316 i 1999 – 2005 1796 85 115
BMW 3 Touring (E46) 318 d 1999 – 2005 1951 85 115
BMW 3 Touring (E46) 330 d 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 330 xd 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 132 179
BMW 3 Touring (E46) 318 d 1999 – 2005 1995 85 116
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 120 163
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 85 116
BMW 3 Touring (E46) 323 i 1999 – 2005 2494 125 170
