Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3528C · SKU BG3528C-DELPHI
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

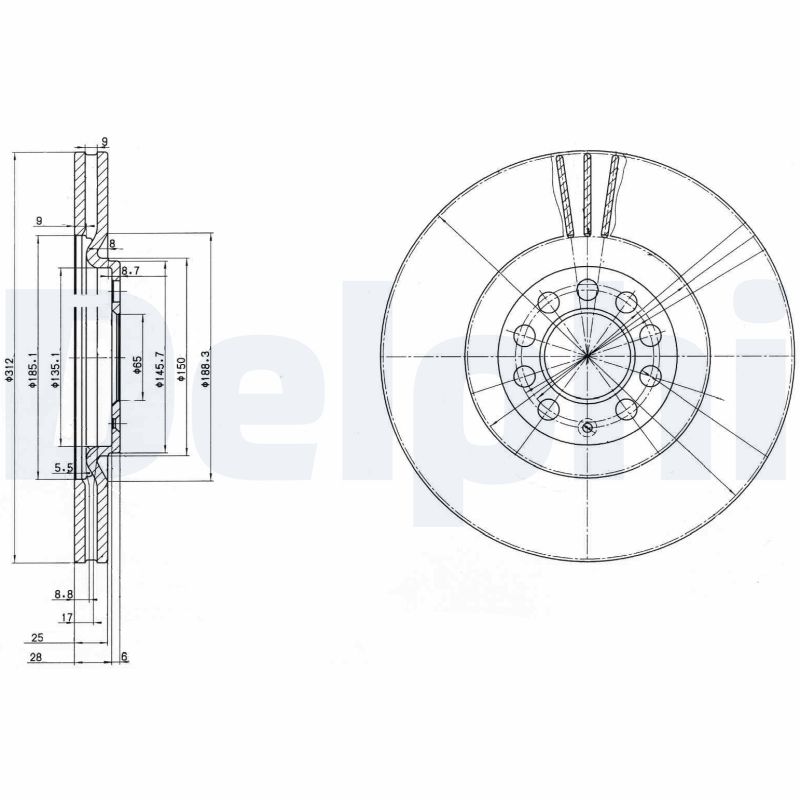

Specifications

Brake Disc Thickness (mm)25
Brake Disc Type Vented
Centering Diameter (mm)65
Height (mm)34.2
Minimum thickness (mm)23
Number of Holes 5
Outer Diameter (mm)312
Test Mark E1 90R-02C0074/1613
Brake Disc Thickness [mm] 25, Brake Disc Type Vented, Centering Diameter [mm] 65, Height [mm] 34,2, Minimum thickness [mm] 23, Number of Holes 5, Outer Diameter [mm] 312, Test Mark E1 90R-02C0074/1613
Fits: AUDI, SEAT, SKODA, VW

Interchangeable Part Numbers

A.B.S.17058 ACDelcoAC2326D ALFA DR6684 ALFADR6684 AP 22015V AP22015V APECDSK2031 ATE-CN24-0125-0123-1-02 ATE-CN24.0125-0123.1 ATE-CN425123 BENDIX562132 BENDIX562132B BLUE PRINTADV184324 BRADI1.0130.2.E Brake ENGINEERING955878 Brake ENGINEERINGDI955878 Brake ENGINEERINGDI955878S BREMBO09.7880.10 BREMBO09.7880.11 BREMBO09.7880.1X BREMBO09.7880.75 BREMBOFD.100.000 BREMBOFS.100.000 CIFAM800-706 COMLINEADC1438V FEBI BILSTEIN19096 FERODODDF1118 FTEBS4768 GIRLING6040641 GRAFDF29706 HP (ZEBRA)57892 JURATEKVAG141 JURID562132J KAGER37-1032 KAGER37-1152 MAGNETI MARELLI353610130205 MGAD1438 MINTEXMDC1381 MOTAQUIPVBE213 NationalNBD971 NECTOWN1128 NK204774 PAGID53971 PEX14.0048 PILENGAV866 QUINTON HAZELLBDC4768 QUINTON HAZELLBDC4768HC QUINTON HAZELLBDC4768P REMSA6597.10 ROULUNDS BRAKINGD2326 sbs1815204774 TEXTAR92098500 TEXTAR92098505 TRWDF4064 TRWDF4064S UNIPARTGBD1251 VAICOV10-80071 VALEO186887 WOKINGP6597.10 ZIMMERMANN100.1240.00

OE Numbers — AUDI

8L0615301 8N0615301A JZW615301G

OE Numbers — AUDI JZW 615

301G

OE Numbers — SEAT 8L0 615

301

OE Numbers — SEAT 8N0 615

301A
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 140 190
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 134 182
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 134 182
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 168 228
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 140 190
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 120 163
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 180 245
AUDI TT (8N3) 3.2 VR6 quattro 1998 – 2007 3189 184 250
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 110 150
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 165 224
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 132 180
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 132 180
AUDI TT Roadster (8N9) 3.2 VR6 quattro 1999 – 2007 3189 184 250
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 165 224
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 132 180
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 140 190
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 140 190
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 120 163
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 134 182
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 132 180
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 168 228
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 110 150
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 134 182
