Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3
Braking System

Brake Disc

Part No. BG3530 · SKU BG3530-DELPHI
Rear Axle
₱16,100.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

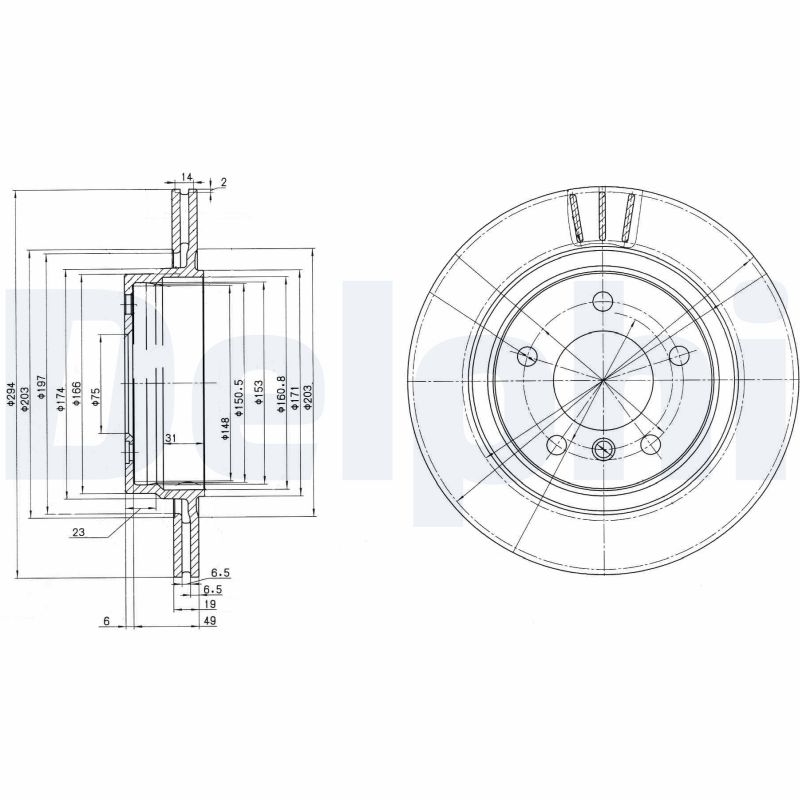

Specifications

Brake Disc Thickness (mm)19
Brake Disc Type Vented
Centering Diameter (mm)75
Height (mm)59.5
Minimum thickness (mm)17.4
Number of Holes 5
Outer Diameter (mm)294
Brake Disc Thickness [mm] 19, Brake Disc Type Vented, Centering Diameter [mm] 75, Height [mm] 59,5, Minimum thickness [mm] 17,4, Number of Holes 5, Outer Diameter [mm] 294
Fits: BMW

Supplier Cross-References

BMW / MINI34216864056 DELPHIBG3530 ZIMMERMANN150128900 FERODODDF1073 ATE24011901081 HELLA PAGID355106561

Interchangeable Part Numbers

A.B.S.17024 A.B.S.17473 ALFA DR6593 ALFADR6593 AP24754 APECDSK977 ATE-CN24-0119-0108-1-02 ATE-CN24.0119-0113.1 ATE-CN419108 BARUMBAR19108 BENDIX562094 BENDIX562094B BRADI1.0645.6.4 Brake ENGINEERING955939 Brake ENGINEERINGDI955939 BREMBO09.7702.10 BREMBO09.7702.11 BREMBO09.7702.75 BREMBORD.161.000 BREMBORS.161.000 CAR142.093 CIFAM800-704 COMLINEADC1723V FEBI BILSTEIN17925 FEBI BILSTEIN28165 fri.tech.DF1097 FTEBS5147 GIRLING6040692 GRAFDF29704 HP (ZEBRA)57883 JURATEKBMW115 JURID562094J KAGER37-0542 LEMFÖRDER22831 LEMFÖRDER22831 01 LEMFÖRDER22831 02 MAGNETI MARELLI353610645640 MEYLE315 523 3022/PD MEYLE315 523 3022 MGAD1374 MINTEXMDC1384 MOTAQUIPVBE272 NationalNBD977 NECTOWN1087 NK201541 OPTIMALBS-7638 PAGID50449 PEX14.0114 PILENGAV129 QUINTON HAZELLBDC5147 QUINTON HAZELLBDC5147HC QUINTON HAZELLBDC5147P ROADHOUSE6722.10 sbs1815201541 SEBRO202415 TEXTAR92097300 TRWDF4069 TRWDF4296 UNIPARTGBD1238 VAICOV20-80044 VALEO186861 ZIMMERMANN150.1289.20

OE Numbers — BMW

3421 1165 563 34216855154 9421 685 515
MakeModelType / Engine YearsCCkWHP
BMW 3 (E46) 318 i 1997 – 2005 1895 87 118
BMW 3 (E46) 328 i 1997 – 2005 2793 142 193
BMW 3 (E46) 320 d 1997 – 2005 1951 100 136
BMW 3 (E46) 323 i 1997 – 2005 2494 125 170
BMW 3 (E46) 320 i 1997 – 2005 1990 110 150
BMW 3 (E46) 316 i 1997 – 2005 1895 77 105
BMW 3 (E46) 330 d 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xd 1997 – 2005 2926 135 184
BMW 3 (E46) 330 xi 1997 – 2005 2979 170 231
BMW 3 (E46) 330 i 1997 – 2005 2979 170 231
BMW 3 (E46) 320 i 1997 – 2005 2171 125 170
BMW 3 (E46) 325 i 1997 – 2005 2494 141 192
BMW 3 (E46) 325 xi 1997 – 2005 2494 141 192
BMW 3 (E46) 316 i 1997 – 2005 1596 77 105
BMW 3 (E46) 318 i 1997 – 2005 1995 105 143
BMW 3 (E46) 320 d 1997 – 2005 1995 110 150
BMW 3 (E46) 318 d 1997 – 2005 1951 85 116
BMW 3 (E46) 316 i 1997 – 2005 1796 85 115
BMW 3 (E46) 330 d 1997 – 2005 2993 150 204
BMW 3 (E46) 330 xd 1997 – 2005 2993 150 204
BMW 3 (E46) 318 d 1997 – 2005 1995 85 116
BMW 3 (E46) 316 i 1997 – 2005 1596 85 115
BMW 3 (E46) 325 xi 1997 – 2005 2494 137 186
BMW 3 (E46) 330 xi 1997 – 2005 2979 168 228
BMW 3 (E46) 320 d 1997 – 2005 1951 95 129
BMW 3 (E46) 325 i 1997 – 2005 2494 137 186
BMW 3 (E46) 318 i 1997 – 2005 1995 100 136
BMW 3 (E46) 328 i 1997 – 2005 2793 144 196
BMW 3 (E46) 320 i 1997 – 2005 2171 120 163
BMW 3 (E46) 323 i 1997 – 2005 2494 120 163
BMW 3 (E46) 325 i 1997 – 2005 2494 132 179
BMW 3 Compact (E46) 316 ti 2001 – 2005 1796 85 115
BMW 3 Compact (E46) 325 ti 2001 – 2005 2494 141 192
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 105 143
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 110 150
BMW 3 Compact (E46) 318 td 2001 – 2005 1995 85 115
BMW 3 Compact (E46) 320 td 2001 – 2005 1995 100 136
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 77 105
BMW 3 Compact (E46) 316 ti 2001 – 2005 1596 85 115
BMW 3 Compact (E46) 318 ti 2001 – 2005 1995 100 136
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 125 170
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 170 231
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 125 170
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 141 192
BMW 3 Convertible (E46) M3 2000 – 2007 3246 252 343
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 105 143
BMW 3 Convertible (E46) 320 Cd 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 330 Cd 2000 – 2007 2993 150 204
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 110 150
BMW 3 Convertible (E46) 325 Ci 2000 – 2007 2494 137 186
BMW 3 Convertible (E46) 320 Ci 2000 – 2007 2171 120 163
BMW 3 Convertible (E46) 330 Ci 2000 – 2007 2979 168 228
BMW 3 Convertible (E46) 323 Ci 2000 – 2007 2494 120 163
BMW 3 Convertible (E46) 318 Ci 2000 – 2007 1995 100 136
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 125 170
BMW 3 Coupe (E46) 328 Ci 1998 – 2006 2793 142 193
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 1990 110 150
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 87 118
BMW 3 Coupe (E46) M3 1998 – 2006 3246 252 343
BMW 3 Coupe (E46) 330 xi 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 125 170
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 141 192
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 77 105
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 105 143
BMW 3 Coupe (E46) 330 Cd 1998 – 2006 2993 150 204
BMW 3 Coupe (E46) 320 Cd 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) M3 CSL 1998 – 2006 3246 265 360
BMW 3 Coupe (E46) 316 Ci 1998 – 2006 1596 85 115
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 110 150
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 170 231
BMW 3 Coupe (E46) 325 Ci 1998 – 2006 2494 137 186
BMW 3 Coupe (E46) 330 Ci 1998 – 2006 2979 168 228
BMW 3 Coupe (E46) 323 i 1998 – 2006 2494 127 173
BMW 3 Coupe (E46) 320 Ci 1998 – 2006 2171 120 163
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1995 100 136
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 85 116
BMW 3 Coupe (E46) 323 Ci 1998 – 2006 2494 120 163
BMW 3 Coupe (E46) 325 i 1998 – 2006 2494 132 179
BMW 3 Coupe (E46) 318 Ci 1998 – 2006 1895 103 140
BMW 3 Touring (E46) 320 i 1999 – 2005 1990 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 87 118
BMW 3 Touring (E46) 328 i 1999 – 2005 2793 142 193
BMW 3 Touring (E46) 320 d 1999 – 2005 1951 100 136
BMW 3 Touring (E46) 330 d 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xd 1999 – 2005 2926 135 184
BMW 3 Touring (E46) 330 xi 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 330 i 1999 – 2005 2979 170 231
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 141 192
BMW 3 Touring (E46) 320 d 1999 – 2005 1995 110 150
BMW 3 Touring (E46) 318 i 1999 – 2005 1995 105 143
BMW 3 Touring (E46) 316 i 1999 – 2005 1796 85 115
BMW 3 Touring (E46) 318 d 1999 – 2005 1951 85 115
BMW 3 Touring (E46) 330 d 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 330 xd 1999 – 2005 2993 150 204
BMW 3 Touring (E46) 318 d 1999 – 2005 1995 85 116
BMW 3 Touring (E46) 323 i 1999 – 2005 2494 125 170
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 325 xi 1999 – 2005 2494 137 186
BMW 3 Touring (E46) 318 i 1999 – 2005 1895 85 116
BMW 3 Touring (E46) 320 i 1999 – 2005 2171 120 163
BMW 3 Touring (E46) 325 i 1999 – 2005 2494 132 179
